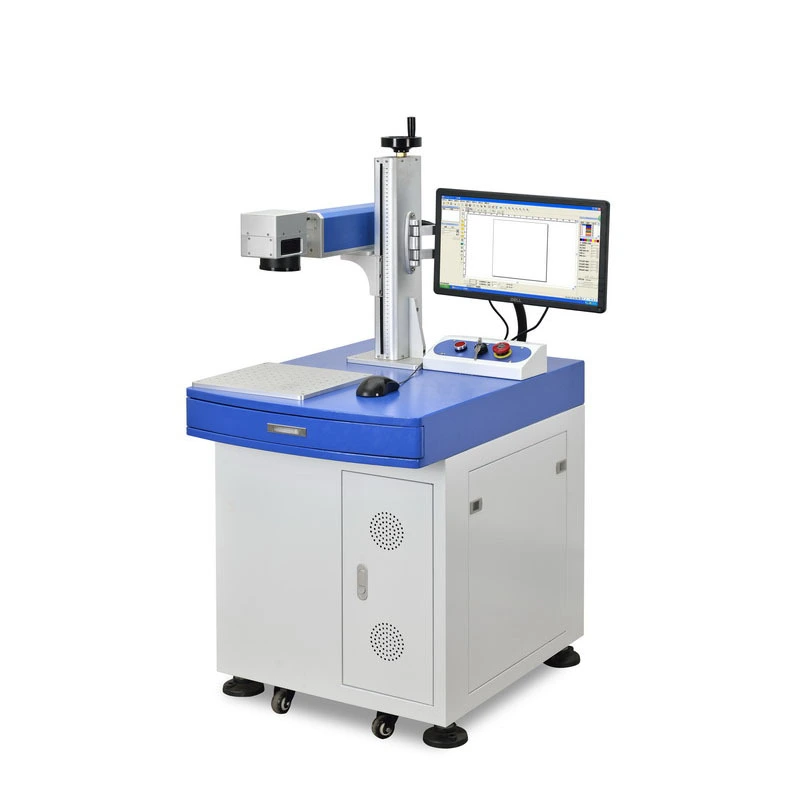

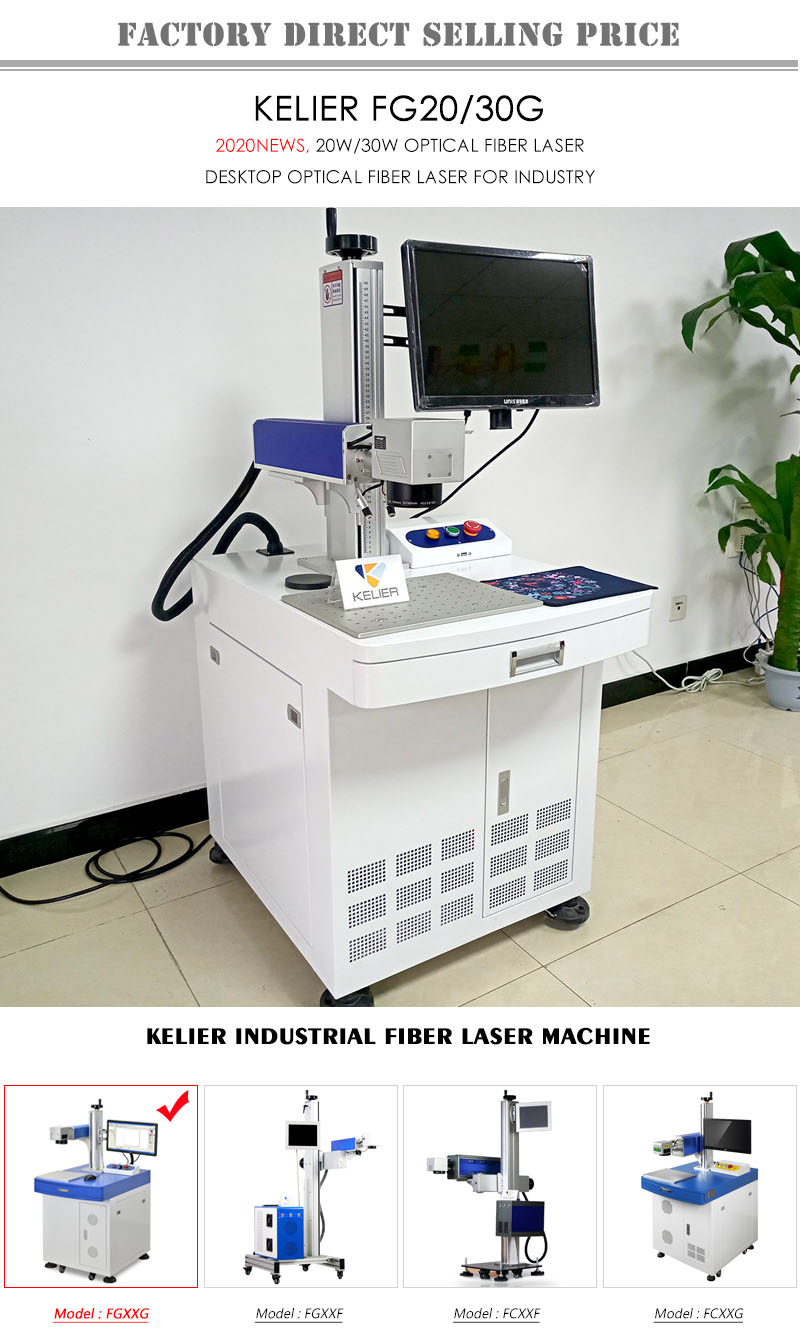

Kelier - small laser marking machine laser marker for steel printer ink expiration date Non-standard customization
Chengdu Kelier Electronic Co., Ltd. always devotes unlimited efforts to the research and development of products. Based on scientific strategic decision-making, driven by strong operating capabilities, and driven by technology and R&D capabilities, the products developed and manufactured have clear positioning and goals. Since established, Chengdu Kelier Electronic Co., Ltd. have always been in strict compliance with international standards and high ethical standards, thus offering customers highly reliable products. We have always been following the business principle of 'honesty & integrity', which ensures that the most credible services are delivered to every customer.
| Application: | Laser Marking | Working Accuracy: | 0.001mm |
| Graphic Format Supported: | AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPG | Laser Type: | Fiber Laser |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD borad |
| Place of Origin: | Sichuan, China | Brand Name: | Kelier |
| Laser Source Brand: | RAYCUS | Control System Brand: | EZCAD |
| Marking Head Brand: | SINO GALVO | Weight (KG): | 30 KG |
| Key Selling Points: | Multifunctional | Warranty: | 3 years |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Laser Marking Machine | Marking Area: | 250mm*250mm |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Other |
| Marking Speed: | 0-9000mm/s | Marking Depth: | 0.01-1mm |
| Standard marking area: | 50mm*50mm--- 300mm*300mm | Laser generator Life: | 100,000hours |
| Frequency of pluse: | 20KHZ~80KHZ | Repeated accuracy: | 0.001mm |
| Laser source: | Raycus/MAX | Power supply: | AC220V/50Hz;110V/60Hz |
| Applicable Material: | Metal Plastic | Laser Power: | 20W /30w/ 50w(Optional) |
| Certification: | ce | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Spain |
| Showroom Location: | Chile | Marketing Type: | New Product 2019 |
| Brand: KELIER | Model: FG20/30/50G | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 20W/30W/50W |
| DCarving speed:9000mm/s | Voltage: 110V-240V | Weight: packing weigth:120kg |
| Name:small laser marking machine laser marker for steel printer ink expiration date | ||
| Description:Laser Engrave, Etch, and Mark Metals Laser etching metal with a fiber laser machine from Kerlier is a quick and easy process. With the accuracy of a laser metal engraver, it is possible to produce precise marks with no clean up or additional finishing process needed. To have a specific material tested, contact our Applications Lab. | ||
Advantages of Cabinet Fiber Laser Marking Machine
1,Mark Multiple Parts at One Time
Create a parts jig to streamline the barcode labeling process and engraving on hundreds of pieces in a short period of time. You can easily place your jig of parts into the machine either through the top window door or the front-loading access door.
2,Setting the Home Position
Easily set a temporary home position to engrave or mark uniquely shaped items. Use the top left corner as your home position, or easily move the laser head to a custom spot on the engraving table to quickly process single parts or components.
3,Dual Laser Source Option (CO2 & Fiber)
Add the ability to engrave and/or cut acrylic, wood, stone, rubber and more to your fiber laser machine with our dual source option. We'll add a CO2 laser for the highest laser versatility available.
Fiber Laser Deep Engraving Machine is a kind of Laser engraving machine which adopts fiber laser souce for metal engraving.
Fiber laser deep engraving machine is also called Laser metal engraving machine, Metal laser engraving machine, laser engraving machine for metal, laser deep engraving machine, deep laser engraving machine, laser metal deep engraving machine, metal laser deep engraving machine, Metal laser engraver, Laser metal engraver, Laser engraver for metal.
Features of Deep Laser Engraving Machine for Metal with Fiber
Laser Source:
1. Easy and quick installation, USB connected with computer easily.
2. Low Cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser.
3. Free-Maintenance Operation: There is no need of any maintenance for laser, or cleaning the lens.
4. Long Service Life: The laser Metal engraving machine adopts laser diode as pumping source, the working hours can reach as long as 100,000 hours.
| KELIER Industrial Laser Marker parameters | |
| Optional Model | FG20G/FG30G/FG50G |
| Laser power | 20W30W50W(optional) |
| Laser source | China Max or Raycus German IPG fiber laser |
| Laser wavelength | 1064 nm |
| Beam quality | M2 < 1.4 |
| Modulation frequency | 20kHz~110kHz |
| Marking range | 30mm x 30mm - 300mm x 300mm can be optional |
| Carving speed | 0-9000 mm/s |
| Carving depth | 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material |
| Focusing mode | Support for automation or manual |
| Marking speed | 600-1000characters/Min |
| Minimum line width | 0.002 mm |
| Minimum characters | 0.15 mm |
| Repeatability accuracy | ±0.002 mm |
| Cooling method | Air Cooling |
| Use environment | IP4 Clean, dustless or less dusty |
| Laser type | Pulse or continuous |

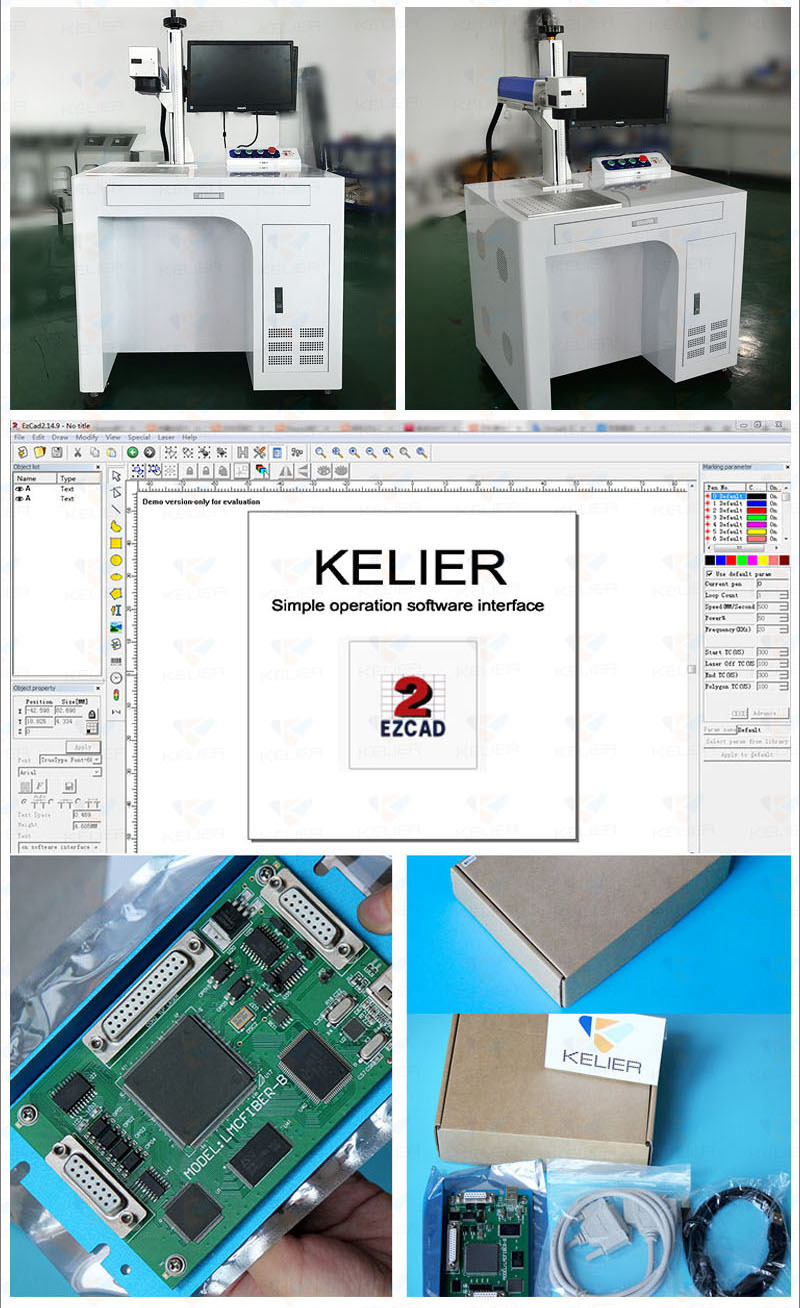

| control software | Authorization EZCAD marking control software |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
| Laser indicator | Double Red dot pointer |
| Operating system | Win98/Win2000/WinXP/win7 (64,32bit)win8/win10 |
| working temperature | 0-35 ℃,90% or humidity |
| Power consumption | ≤ 550 W |
| Electricity demand | AC110V-240V±10%,50 HZ/60HZ |
| This product contains computers. The following is the configuration list of the dedicated computers. | |
| Computer configuration parameters | |
| CPU | Intel G630X2/I3 540 |
| Memory | ADATA 4G/8G DDR3L 1600 |
| BIOS | AMI EFI BIOS |
| Super I/O | Winbond W83627DHG-P / HG41/HG55 |
| Ethernet | 1x LAN Intel I211(IO) |
| GPU | Intel HD Graphics |
| Display interface | 1x HDMI:1920×1200@60Hz |
| Hard disk | 60G/120G/500G |
| USB interface | 4xUSB |
| serial port | 1x RS232,COM1,RS422,RS485 |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux |
| working temperature | 0℃~ 60℃ |
| Storage temperature | -40℃~ 85℃ |
| humidity | 5% ~ 95% Relative humidity, no condensation |
Applications: Laser marking machine is a laser beam marking on various surfaces of materials.
The effect of marking is to expose deep substances through evaporation of surface substances, thus carving exquisite patterns, trademarks and characters. Laser marking machine has good wear resistance, not easy to erase, strong anti-counterfeiting function, high processing efficiency, no consumables, non-toxic, pollution-free, environmental protection.
Laser marking machine is used to print and engrave codes on metal and part of non-metallic materials such as bearings, instruments, flanges, valves, electronic components, communication equipment, hardware, mobile phone accessories, jewelry, automobile accessories, precision machinery, etc.

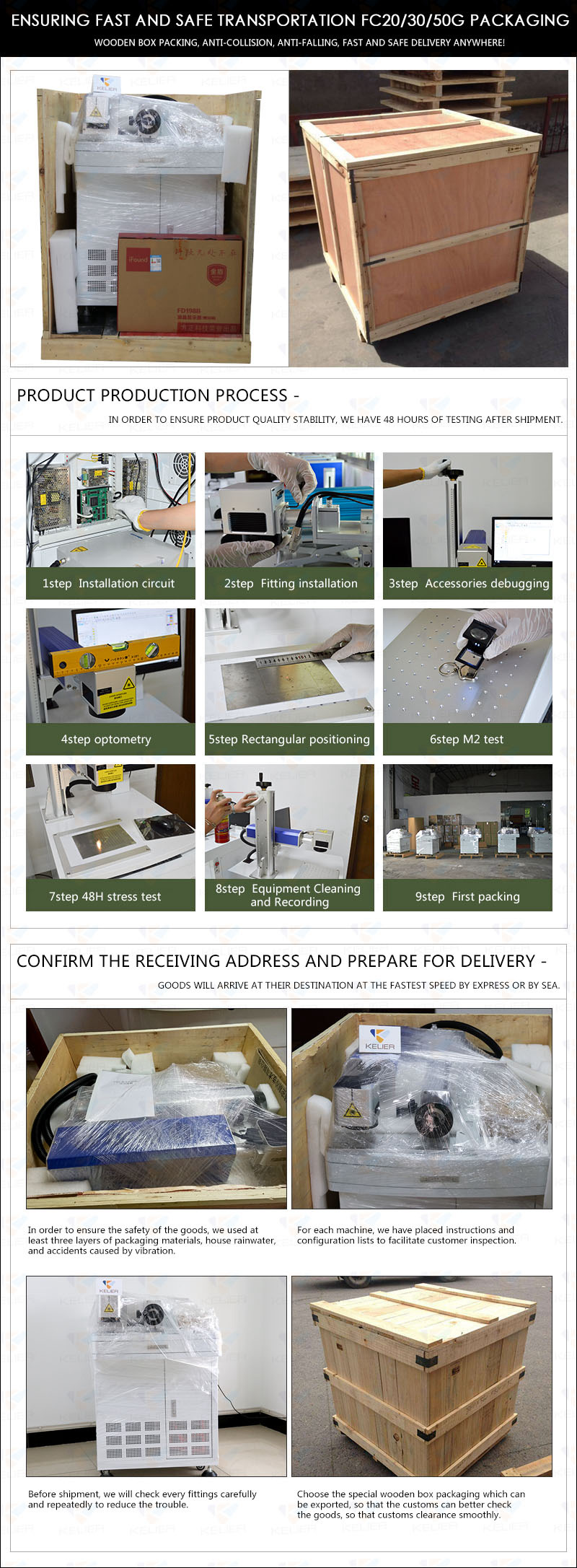

| Packing list | ||
|

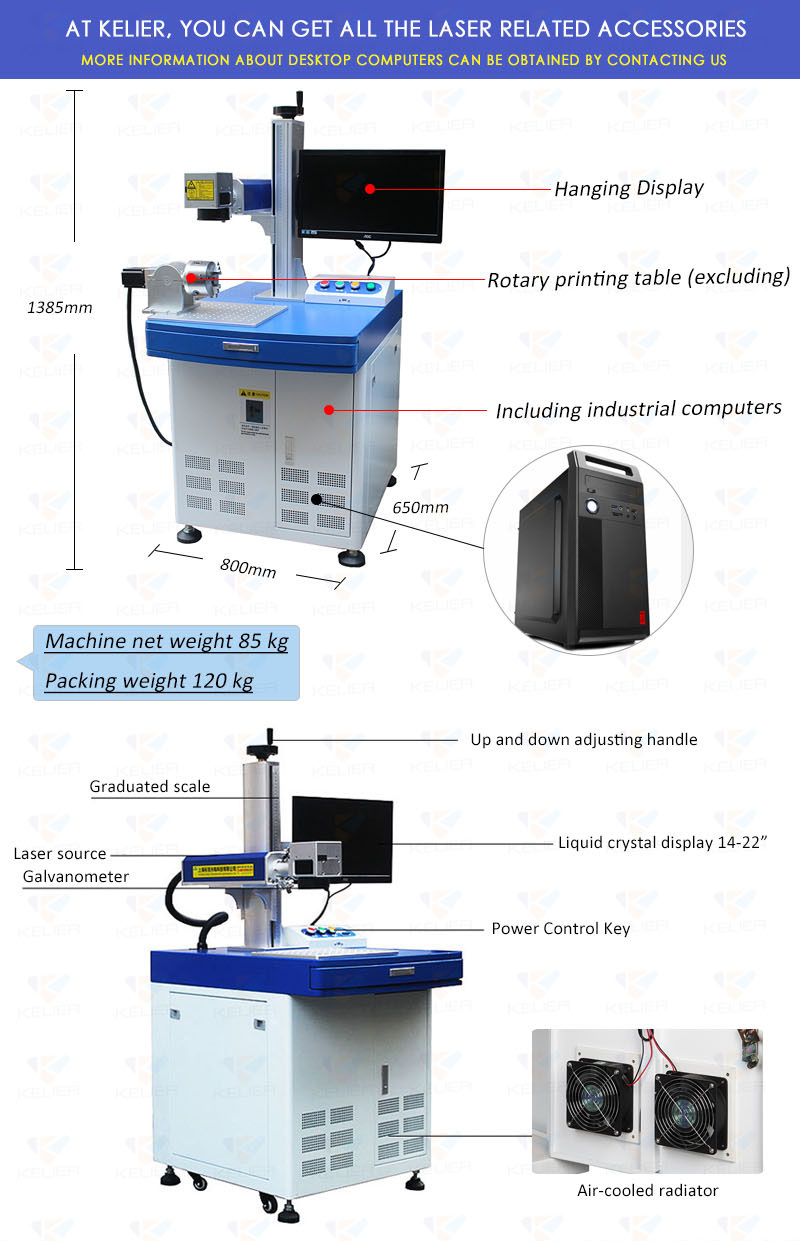

It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator.
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
Net weight: 85kg
|
||
| Packaging size/weight(mm):900(L)*800(W)*1060(D) / 120KG | ||
| Part name | Brand origin | Quantity |
| Fiber laser | Raycus/Max/Ipg | 1 sets |
| High speed scanning galvanometer | Beijing SINO GALVO | 1 sets |
| Focusing lens | Singapore wavelength | 1 sets |
| Marking software | EZCAD | 1 sets |
| Indicator locator | Xi'an sapling | 1 sets |

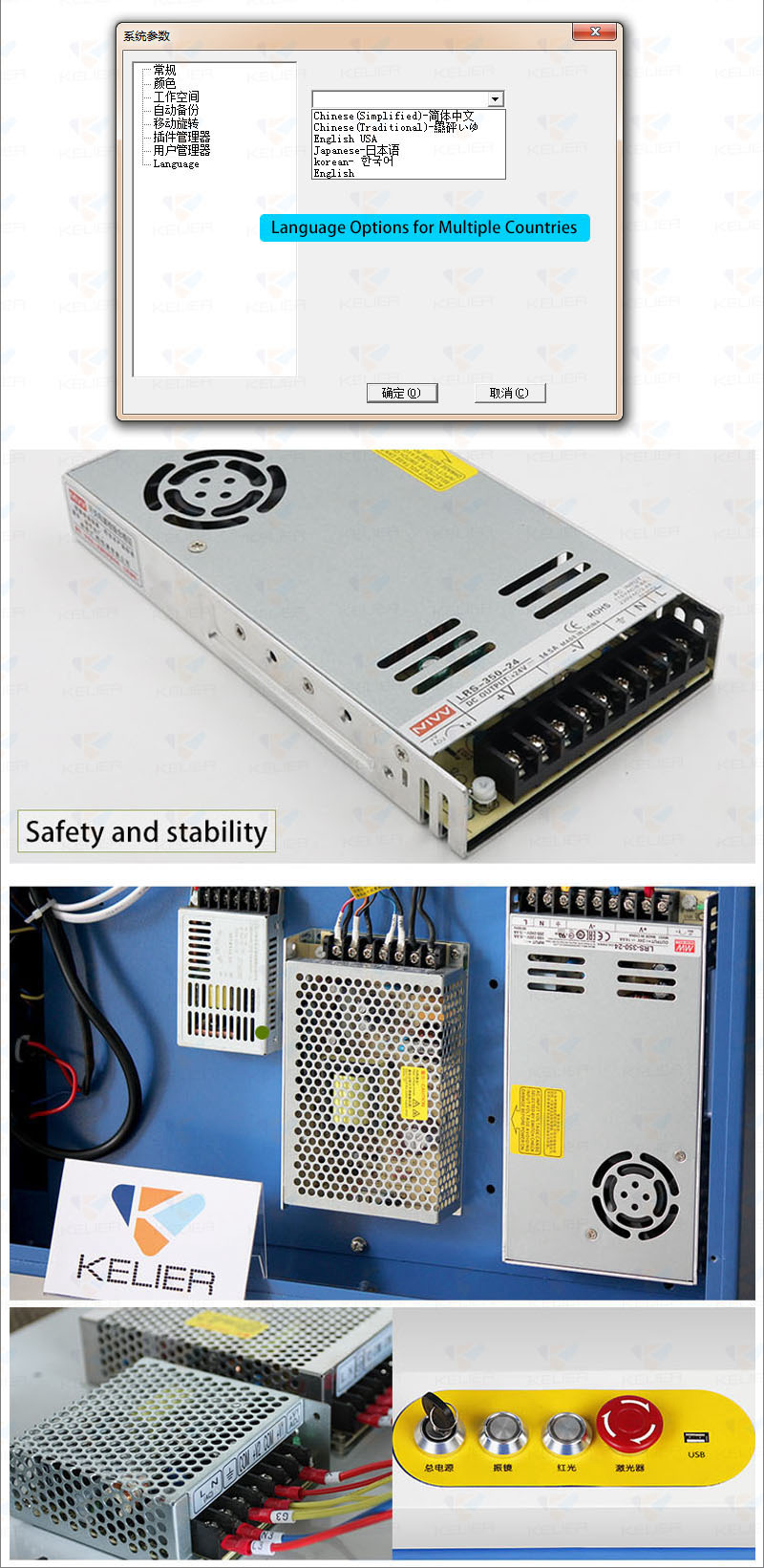

| Power switch | Taiwan Meanwell | 1 sets |
| Laser frame | Self-control | 1 sets |
| Print foot | Customized | 1 sets |
| Equipment switch | Shanghai Jia Jia | 1 sets |
| Control computer(Include) | desktop computer | 1 sets |
| Rotary Printing Table (Order) | Dongsheng Precise | 1 sets |
| Instructions |
Video, text and pictures |
1 sets |
| Shipping Method |
|
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
|
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
|
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods. |
|
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
|
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available. |
|
2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
|

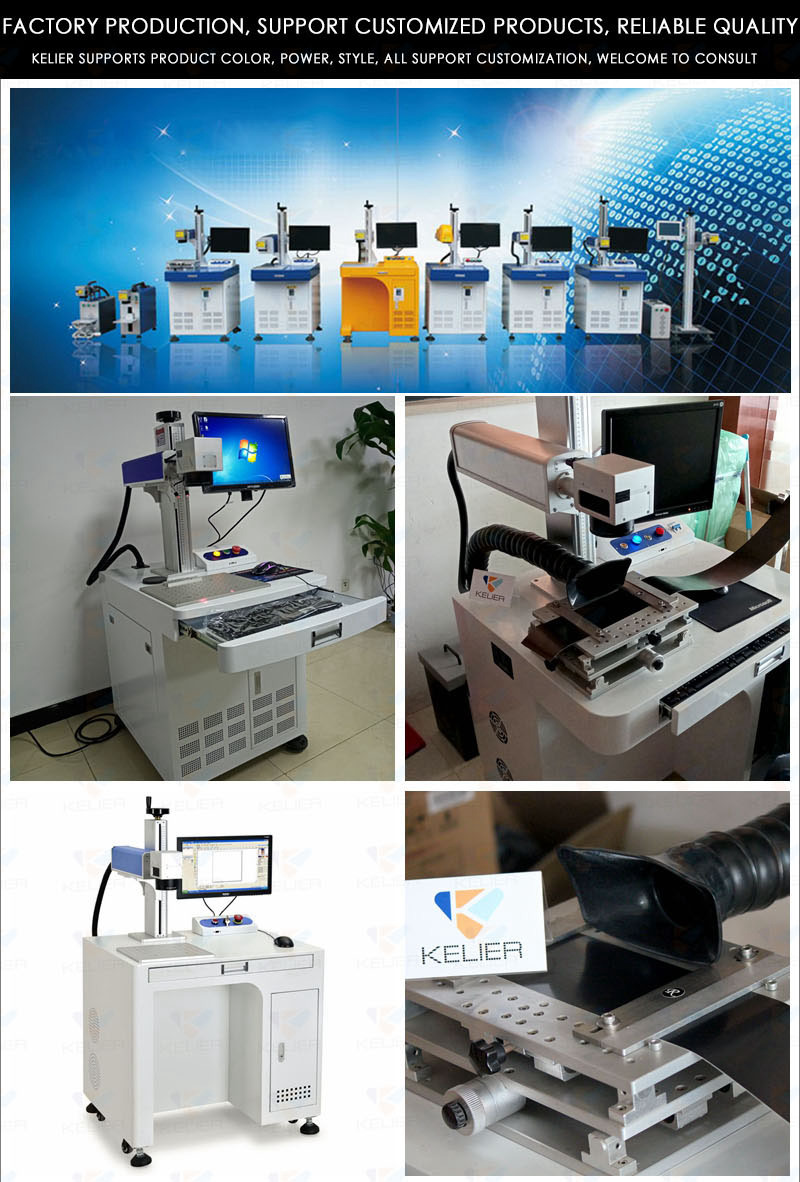

3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
|
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
Q1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .
Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?
Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.
Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.
Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
