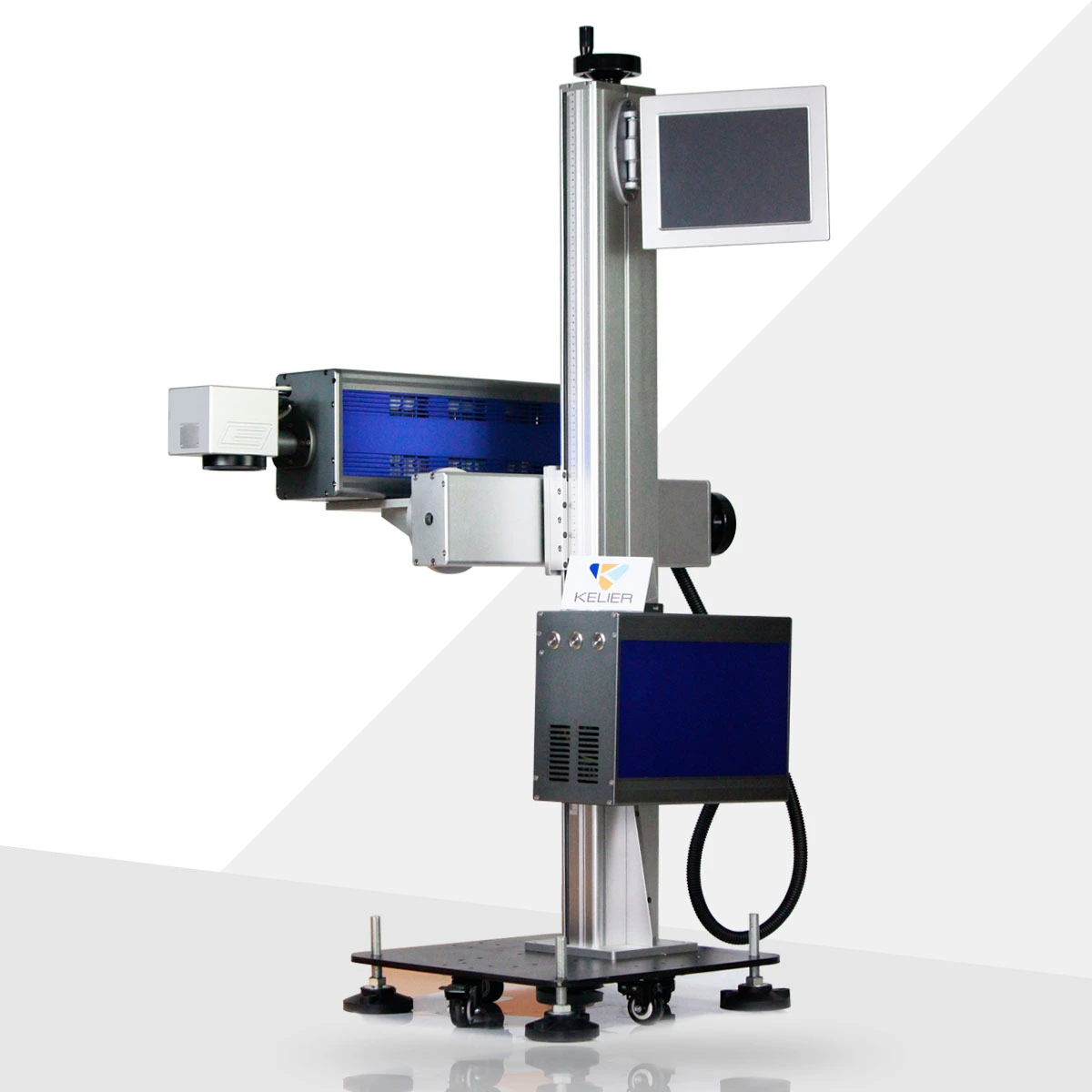

Kelier - Highly efficient and stable marking industrial production CO2 Online Flying Laser Marking Machine FCF-3 Non-standard customization
Chengdu Kelier Electronic Co., Ltd. relying on years of development, it clearly understands the needs of users and the pain points of the industry, and relying on strong technical capabilities to develop high-quality Highly efficient and stable marking industrial production CO2 Online Flying Laser Marking Machine FCF-3 that can meet the needs of users and solve the pain points of the industry. The Laser Marking Machines product will supply to all over the world, such as Europe, America, Australia,Uganda , Oman ,Sri Lanka , Surabaya . The launch of a product that perfectly solves the industry's pain points is that Chengdu Kelier Electronic Co., Ltd. has always adhered to the goal of technological innovation, and the newly developed products perfectly solve the pain points that have been lingering in the industry for a long time. Once launched, they have been enthusiastically sought after by the market.
| Application: | Laser Marking | Working Accuracy: | 0.001mm |
| Graphic Format Supported: | AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPG | Laser Type: | CO2 |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD borad |
| Place of Origin: | Sichuan, China | Brand Name: | KELIER |
| Laser Source Brand: | DAVI/CRD | Control System Brand: | NOAH |
| Marking Head Brand: | SINO GALVO | Weight (KG): | 30 KG |
| Key Selling Points: | Sustainable | Warranty: | 3 years |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, CO2 Marking Machine | Marking Area: | 250mm*250mm |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Other |
| Marking Speed: | 0-7000mm/s | Marking area: | 110*110mm/175*175mm/200*200mm/300*300mm |
| Laser wavelength: | 10.64um | Laser Power: | 20W/30W/50W |
| Repeated accuracy: | ±0.001mm | Laser source: | DAVI/CRD |
| Software: | EZCAD Software | Marking material: | Partial Plastic |
| Name: | Co2 laser marking machine | Applicable Material: | Non-metal Materials |
| Certification: | ce | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Egypt |
| Showroom Location: | Italy | Marketing Type: | New Product 2019 |

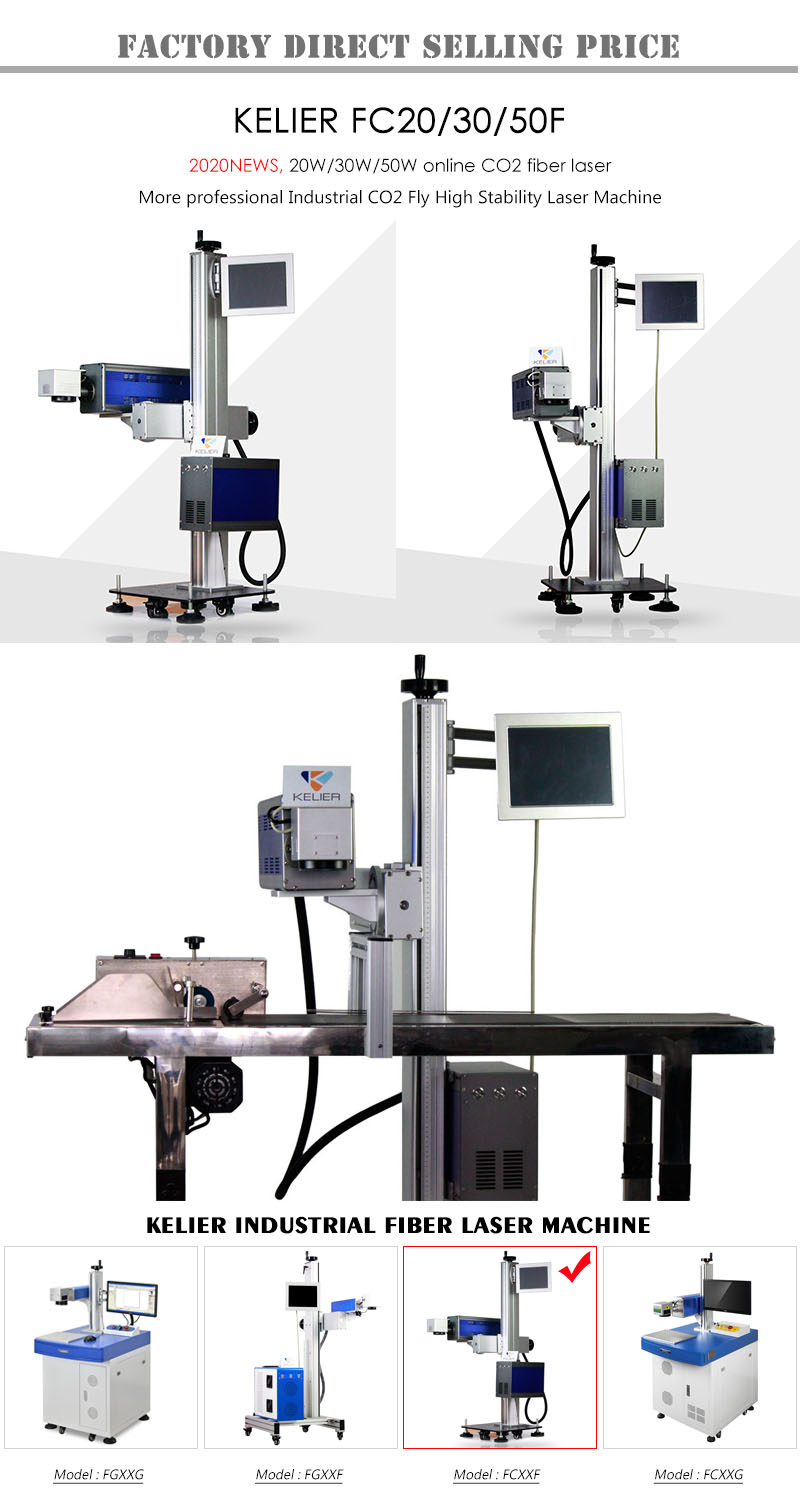

| Brand: KELIER | Model: FC20/30/50F | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 20W/30W/50W |
| DCarving speed:0-9000mm/s | Voltage: 110V-240V | Packing weigth:150kg |
| Name:Highly efficient and stable marking industrial production CO2 Online Flying Laser Marking Machine | ||
| -Automated intelligent processing, high performance, highly efficient and stable marking. CO2 Laser Marking Machine uses advanced closed continuous carbon dioxide laser,working life is more than 20,000 hours.It applys to laser cutting, engraving and marking. The difference between flight marking machine and laser marking machine which is only to stationary objects marking is: Products flow constantly on production line in the process of coding engraved,thereby greatly enhancing the efficiency of production to make laser marking machine meet the requirements of industrial production. | ||
Characteristic description of KELIER CO2 laser
1,DAVI CO2 laser
CO2 Radio Frequency laser generator uses CO2 molecule vibration rotational transitions between energy levels. The power and energy conversion efficiency are high,so the output pulse energy and power have reached a higher level.It is widely used in marking, cutting, drilling, chemistry, communications, radar analysis,etc..
2,Double red light speed digital galvanometer
New Germany high-speed scanning galvanometer, reliable quality, beautiful appearance, built-in double red light focusing marking instructions. Features include compact and flexible, adjustment-free, maintenance-free, high stability advantages.
3,Industrial control computer
Machine is with Cable-free assembly design in nice shape, features include low power consumption, stable performance, powerful performance.
4,NOAH or EZCADTouch flight marking system
This system is currently the most advanced marking software.This software develops base on flight marking,windows operation and interface is very friendly,it can be very easy to edit any text pattern.The user could finish learning it for only one day if has basic computer knowledge.
KELIER FC30F CO2 laser marking machine features high precision , fast speed, and controllable marking depth as well as long continuous working hour with maintenance-free. Using CO2 glass laser device ,which is economical, by the way of rear focusing . The optical system can up-and-forth freely. Dedicated industrial-control computer , is adaptable and working stably to enable continuous and stable operation all day long .Adopting red dot positioning system to make an accurate position to avoiding wasting material. With multiple control tools , users can freely interact the control system with the external equipments. Support multilingual.
Introduction

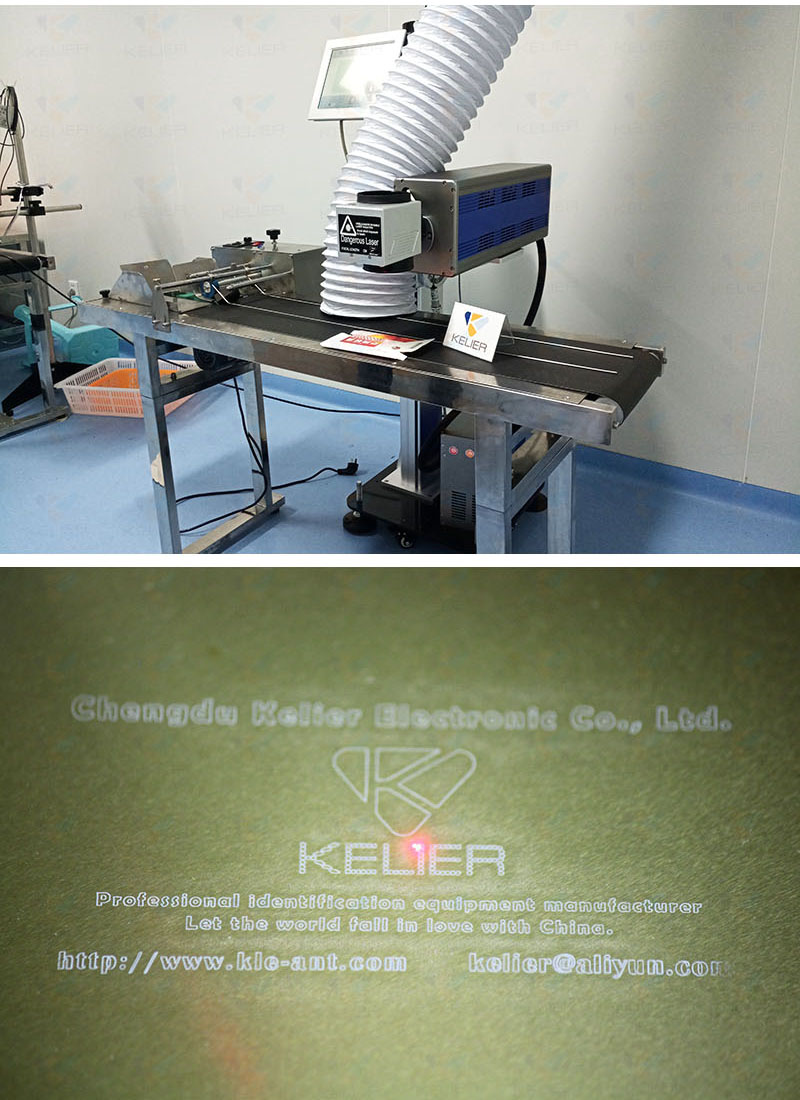

1. KELIER CO2 Series Flying Laser Marking Machine is specially designed to equip on production line and pipeline worktable in your factory or being made by us to reach flying marking application at high speed.
2. More compact machines and Laptop control the whole machines .
3. Working time: 40,000 hours

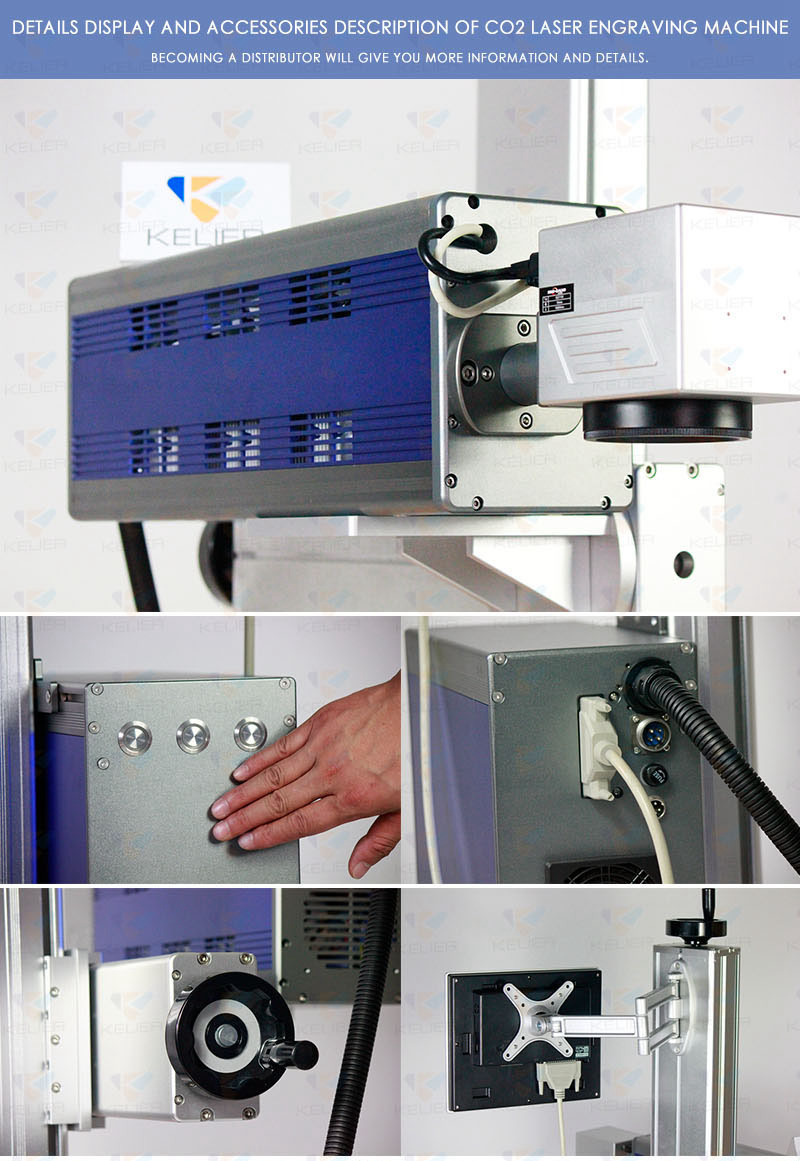

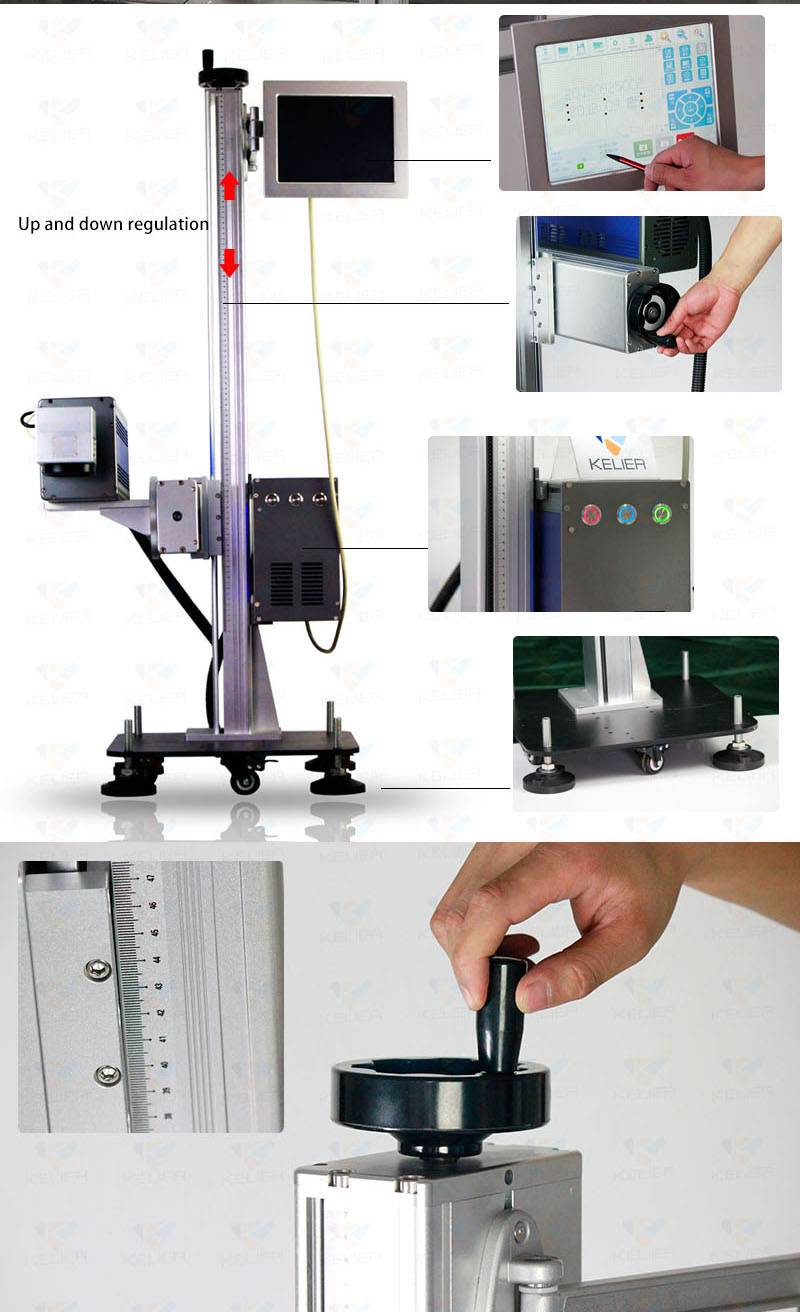

4. The laser head is with 360°rotation angle,so the laser beam can be parallel, vertical, oblique at any angle.

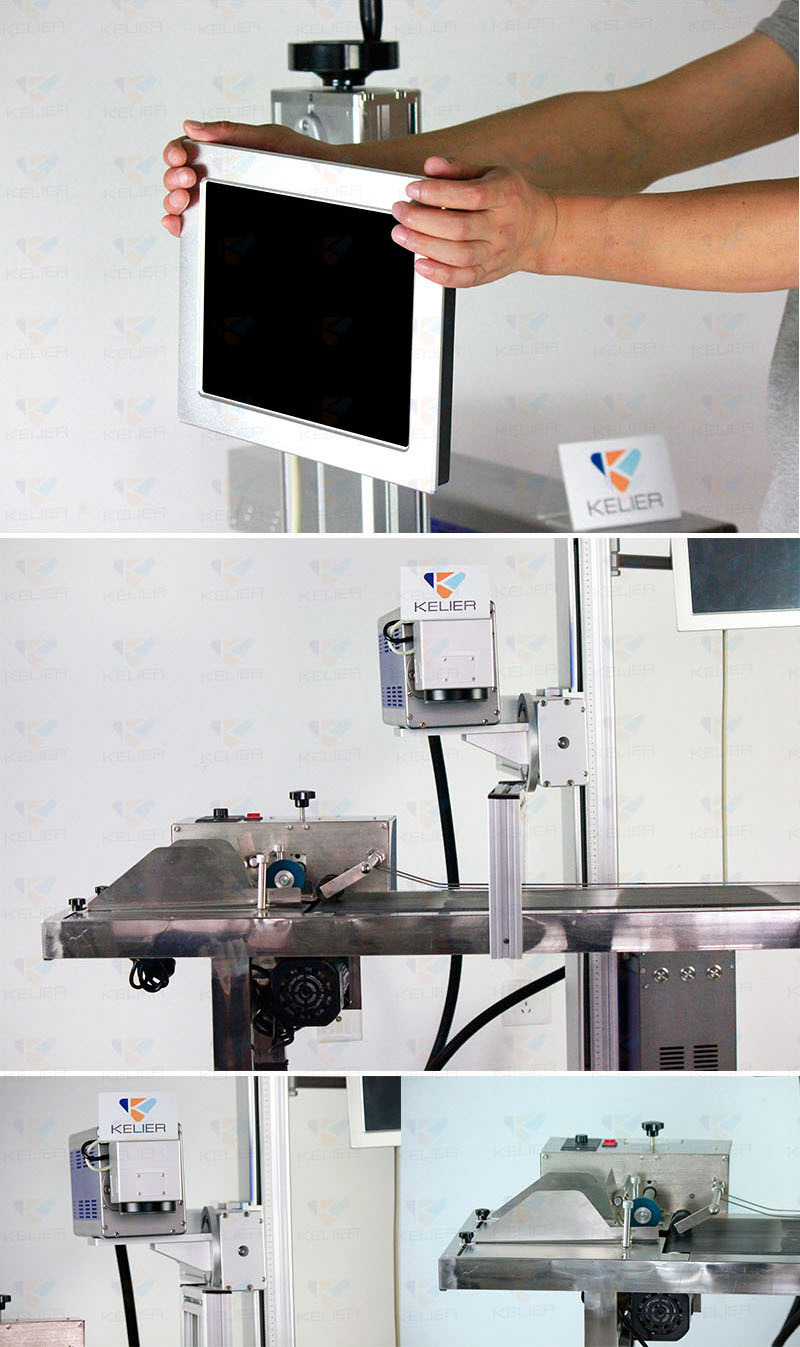

5. The laser head is fixed on a trestle and easily to adjust the height and distance from the object .

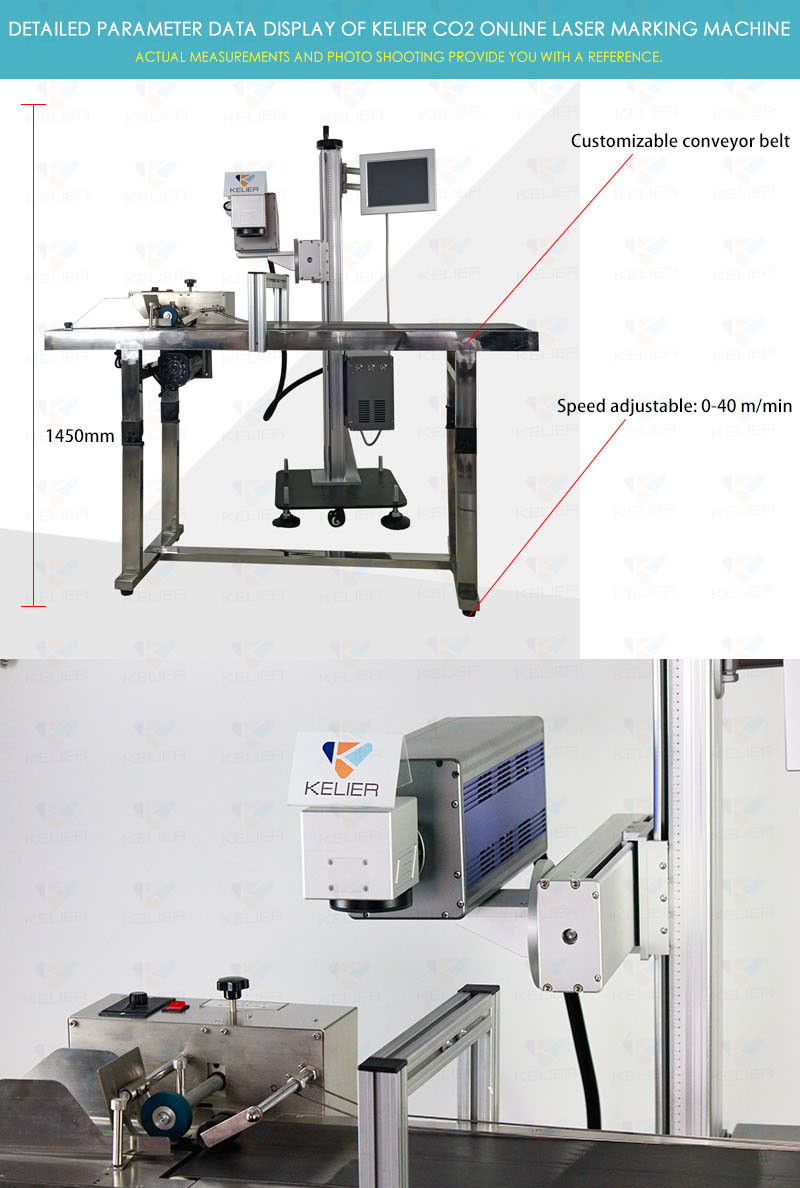

| KELIER Industrial Laser Marker parameters | |
| Optional Model | FC20F/FC30F/FC50F |
| Laser power | 20W30W50W(optional) |
| Laser source | China DAVI or CRD CO2 laser-Support customization |
| Laser wavelength | 1064 nm |
| Beam quality | M2 < 1.4 |
| Modulation frequency | 20kHz~100kHz |
| Marking range | 30mm x 30mm - 300mm x 300mm can be optional |
| Carving speed | ≤7000 mm/s(Adjustable) |
| Carving depth | 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material |
| Focusing mode | Support for automation or manual |
| Marking speed | 1500-2000characters/Min |
| Minimum line width | 0.001 mm |
| Minimum characters | 0.15 mm |
| Repeatability accuracy | ±0.002 mm |
| Cooling method | Air Cooling |
| Use environment | IP4 Clean, dustless or less dusty |
| Laser type | Pulse or continuous |
| control software | NOAH marking control software |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
| Laser indicator | Double Red dot pointer |
| Operating system | Win98/Win2000/WinXP/win7 (64,32bit)win8/win10 |
| working temperature | 0-35 ℃,90% or humidity |
| Power consumption | ≤ 550 W |
| Electricity demand | AC110V-240V±10%,50 HZ/60HZ |
| This product contains computers. The following is the configuration list of the dedicated computers. | |
| Computer configuration parameters | |
| CPU | Intel G630X2/I3 540 |
| Memory | ADATA 4G/8G DDR3L 1600 |
| BIOS | AMI EFI BIOS |
| Super I/O | Winbond W83627DHG-P / HG41/HG55 |
| Ethernet | 1x LAN Intel I211(IO) |
| GPU | Intel HD Graphics |
| Display interface | 1x HDMI:1920×1200@60Hz |
| Hard disk | 60G/120G/500G |
| USB interface | 4xUSB |
| serial port | 1x RS232,COM1,RS422,RS485 |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux |
| working temperature | 0℃~ 60℃ |
| Storage temperature | -40℃~ 85℃ |
| humidity | 5% ~ 95% Relative humidity, no condensation |
Advantages:
1. High marking precision, high speed, controllable carving depth
2. Big laser power, suitable carving and cutting nonmetal products
3. No consumables, low cost, sa long as 20,000 to 30,000 hours service life
4. Clear mark, high carving and cutting efficiency, environmental friendly, and energy, saving
5. General machine, adopted back focalization, laser power is controlled by the software and serially adjustable.It is applicable to fine marking on nonmetal materials with low requirements.
6. Adopting CO2 RF laser tube which has excellent performance and long life.
7. Adopting high-speed galvanometer system with high speed, high precision and stable performance.
8. Adopting imported optics lens, low loss, excellent focalization performance.
9. The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.

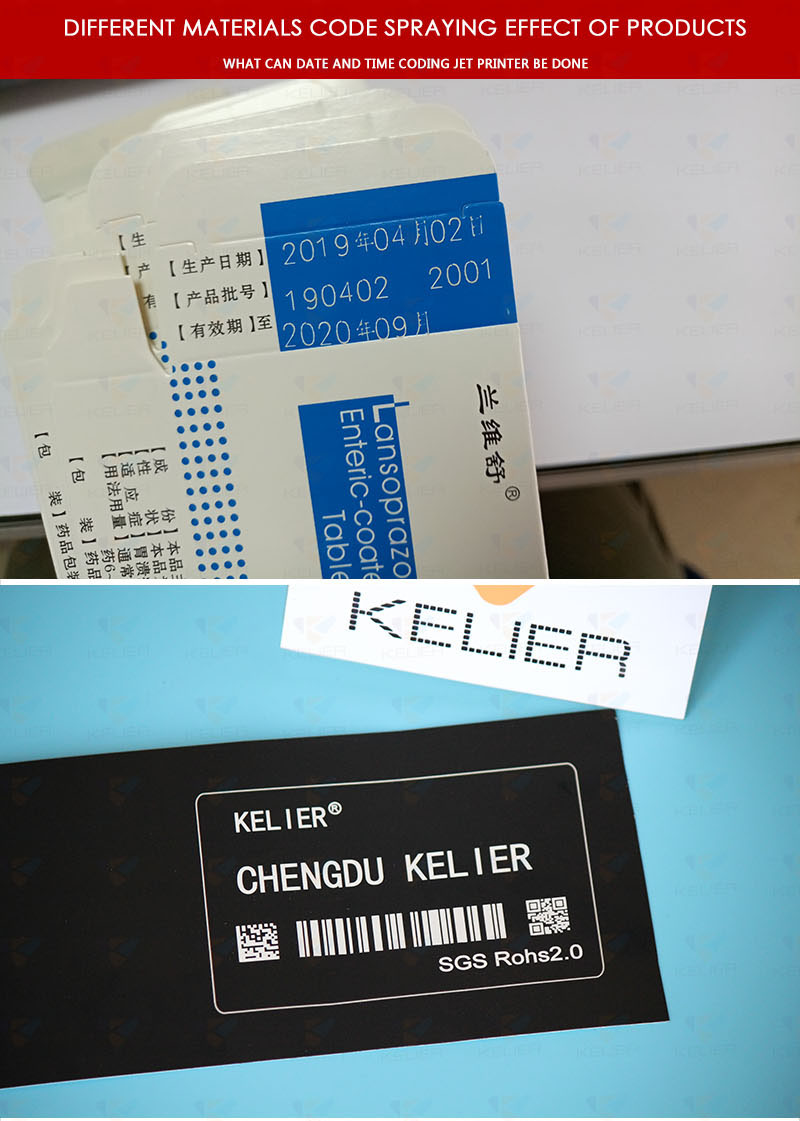

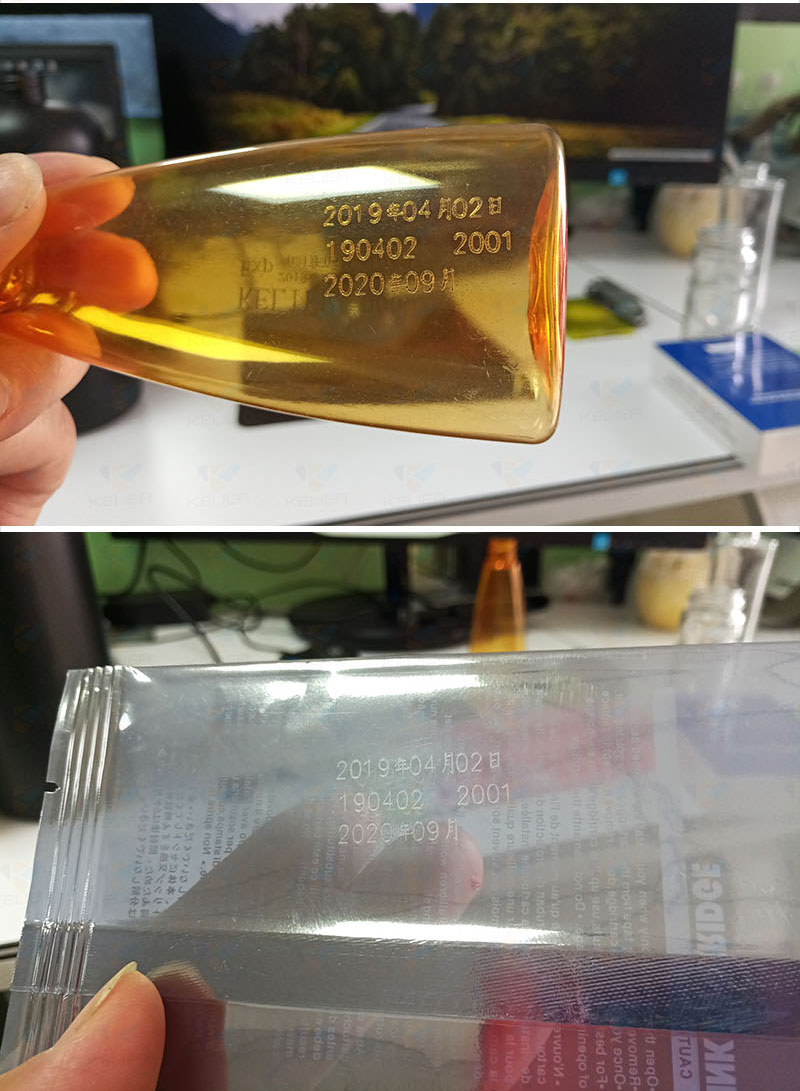

Applicable Material of Flying Online CO2 Laser Marking Machine:
Electronic Part,Leather , Textile , Fabric,Wood , Glass , Rubber ,Plastics, Cardboar,etc

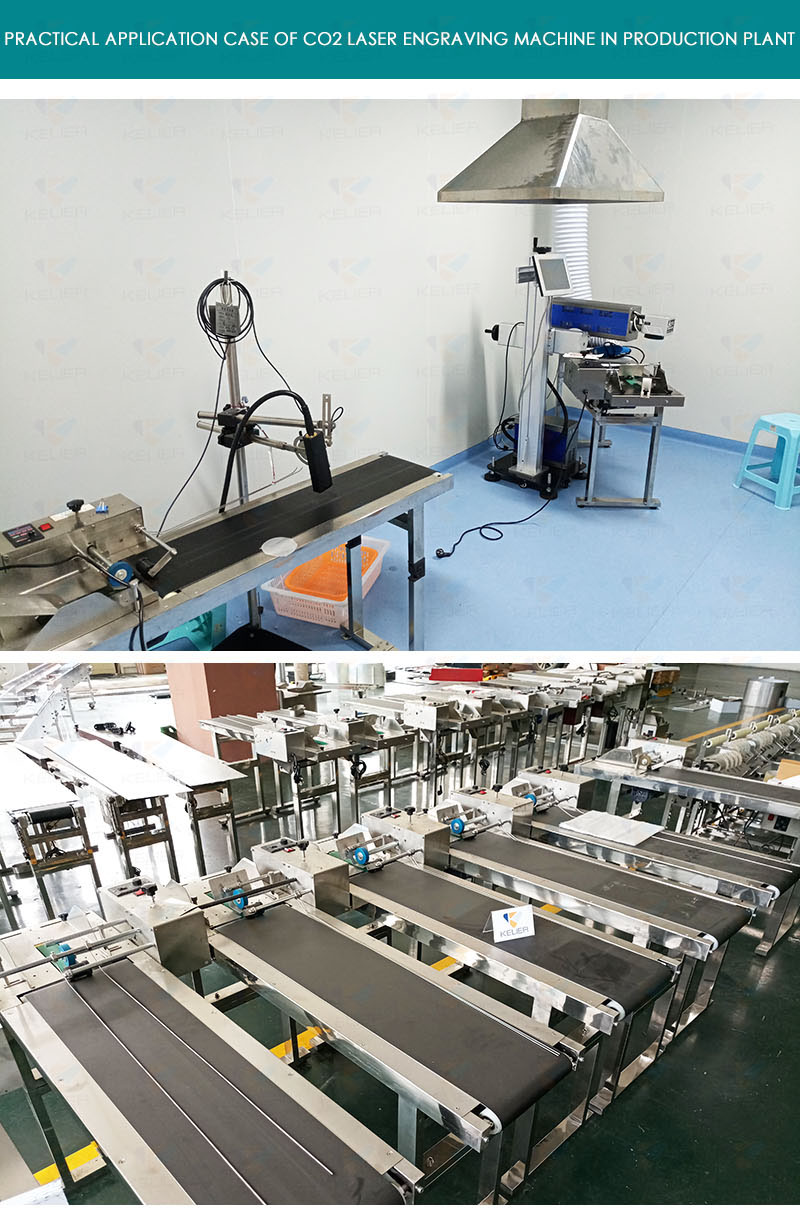

CO2 flying laser marking machine is our special designing for the electronics, pharmaceutical, tobacco, leather, packaging, foods and other industries laser marking application. It can mark all the nonmetal materials very well.
Applicable Industries:Industries such as crystal , Craft gifts, furniture, leather garments, advertising signs, automotive, model making, food packaging, electronic components, pharmaceutical packaging, medicine packaging, textile, rubber plate, wood, bamboo products, acrylic plate, plastic, organic glass, tile, marble, jade use CO2 laser marking and engraving systems for product identification and date stamping.
| Packing list | ||
|
It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator.

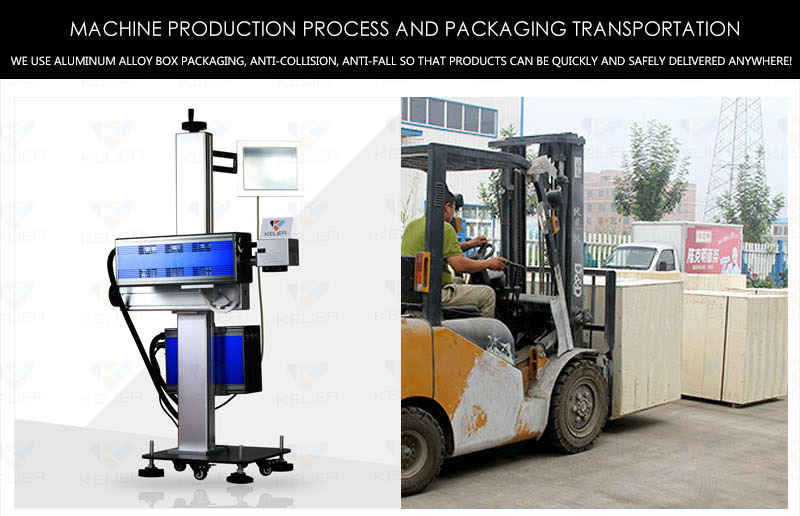

Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
|
||
| Packaging size/weight(mm):900(L)*800(W)*1060(D) / 150KG | ||
| Part name | Brand origin | Quantity |
| Fiber laser | China DAVI or CRD | 1 sets |
| High speed scanning galvanometer | Beijing SINO GALVO | 1 sets |
| Focusing lens | Singapore wavelength | 1 sets |
| Marking software | EZCAD/NOAH | 1 sets |
| Indicator locator | Xi'an sapling | 1 sets |
| Power switch | Taiwan Meanwell | 1 sets |
| Laser frame | Self-control | 1 sets |
| Print foot | Customized | 1 sets |
| Equipment switch | Shanghai Jia Jia | 1 sets |
| Control computer(Include) | desktop computer | 1 sets |
| Rotary Printing Table (Order) | Dongsheng Precise | 1 sets |
| Instructions |
Video, text and pictures |
1 sets |
| Shipping Method |
|
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
|
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
|
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods. |
|
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
|
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available. |
|

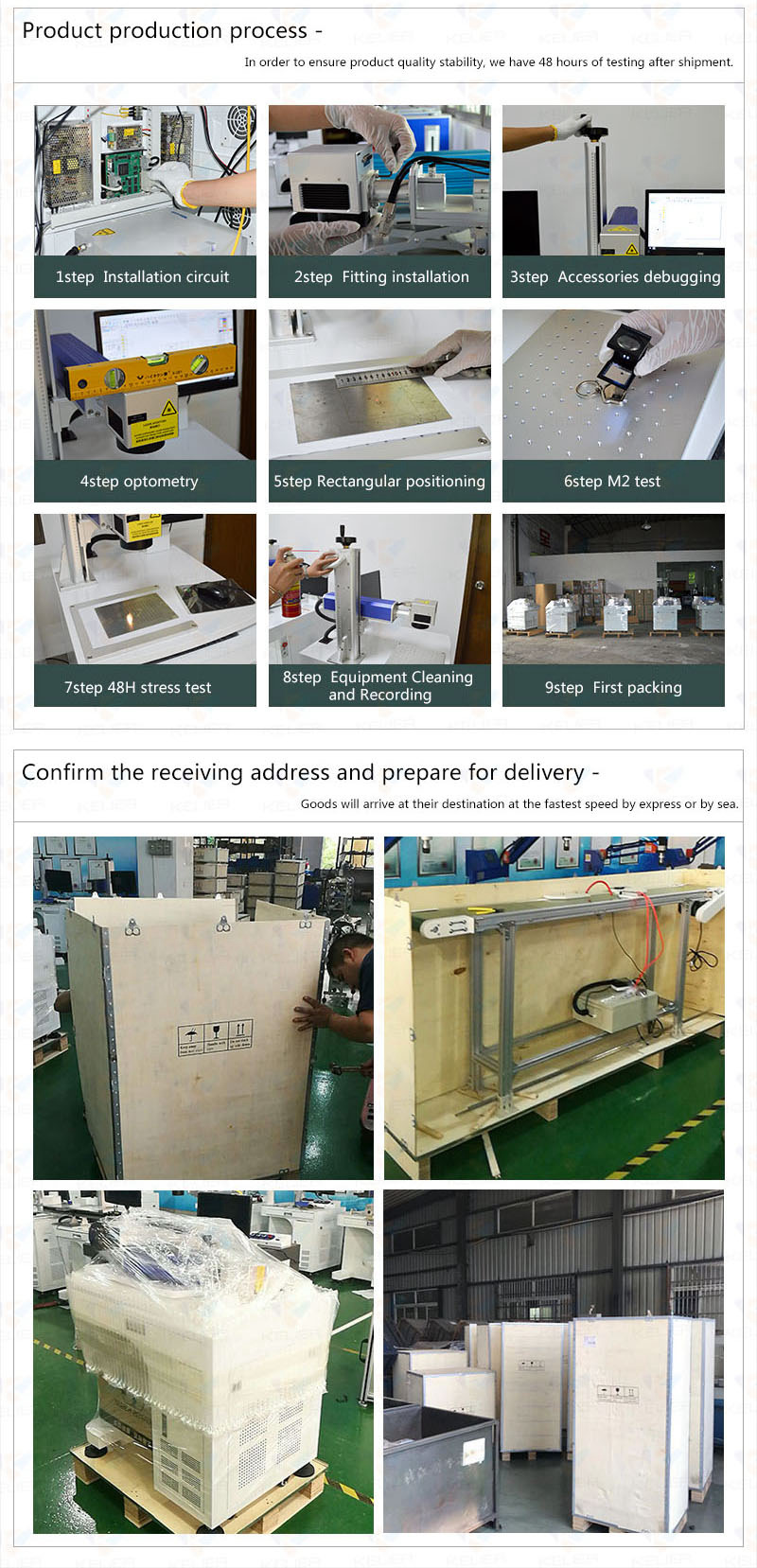

2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
|
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
|
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
Q1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .
Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?
Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.
Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.
Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
