    With strong ability of product research and development, Chengdu Kelier Electronic Co., Ltd. ensures new products are launched on a regular basis. Our new product fiber laser marking machine with rotary metal photo printing machine qr code laser printer is a totally new series and has different features. High-quality fiber laser marking machine with rotary metal photo printing machine qr code laser printer rely on strong research and development capabilities and a good brand image. Chengdu Kelier Electronic Co., Ltd. are determined that we will invest more in the improvement of R&D strength and gather more talents in the industry, both of which can make great contributions to the long-term development of our company.

    Application:Laser MarkingWorking Accuracy:±0.002 mm
    Graphic Format Supported:AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, PDFLaser Type:Fiber Laser
    Condition:NewCNC or Not:Yes
    Cooling Mode:Air CoolingControl Software:EZCAD
    Place of Origin:Sichuan, ChinaBrand Name:KELIER
    Laser Source Brand:RAYCUSControl System Brand:EZCAD
    Marking Head Brand:SINO GALVOWeight (KG):30 KG
    Key Selling Points:Long Service LifeWarranty:3 years
    Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, metal label printing machineMarking Area:250mm*250mm
    Machinery Test Report:ProvidedVideo outgoing-inspection:Provided
    Warranty of core components:1 YearCore Components:Other
    Name:laser printerPower supply:20W
    Laser source:RaycusLaser wavelength:1064 nm
    Marking range:110*110/150*150/175*175mm OptonalCarving speed:0-6000 mm/s
    Packing Weight:27kgCooling method:Air Cooling
    Laser Power:20W/30W/50WMarking Depth:0.01-1mm
    Certification:ceAfter-sales Service Provided:Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
    After Warranty Service:Video technical support, Online supportLocal Service Location:Egypt
    Showroom Location:ItalyMarketing Type:New Product 2019

    Brand: KELIER Model: FG20T2 Origin: Mainland China
    Provinces: Sichuan City: Chengdu Power: 20W
    DCarving speed:6000mm/s Voltage: 110V-240V Packing weigth:27kg
    Product Name:fiber laser marking machine with rotary metal photo printing machine qr code laser printer
    -The warranty is three years. We will send the operating video and manual of the machine. Our engineers will be trained online. If necessary, we can send our engineers to your site for training, or you can send operators to our factory for training. If you have any questions, whether machine or operation, you can contact us directly. If any parts are damaged, we will replace a new one for you free. After the warranty period, we will continue to provide lifelong maintenance services free of charge. If the parts break down, there will be a charge.



    Main Advantage

    fiber laser marking machine with rotary metal photo printing machine qr code laser printerfiber laser marking machine with rotary metal photo printing machine qr code laser printer

    Quick Preview

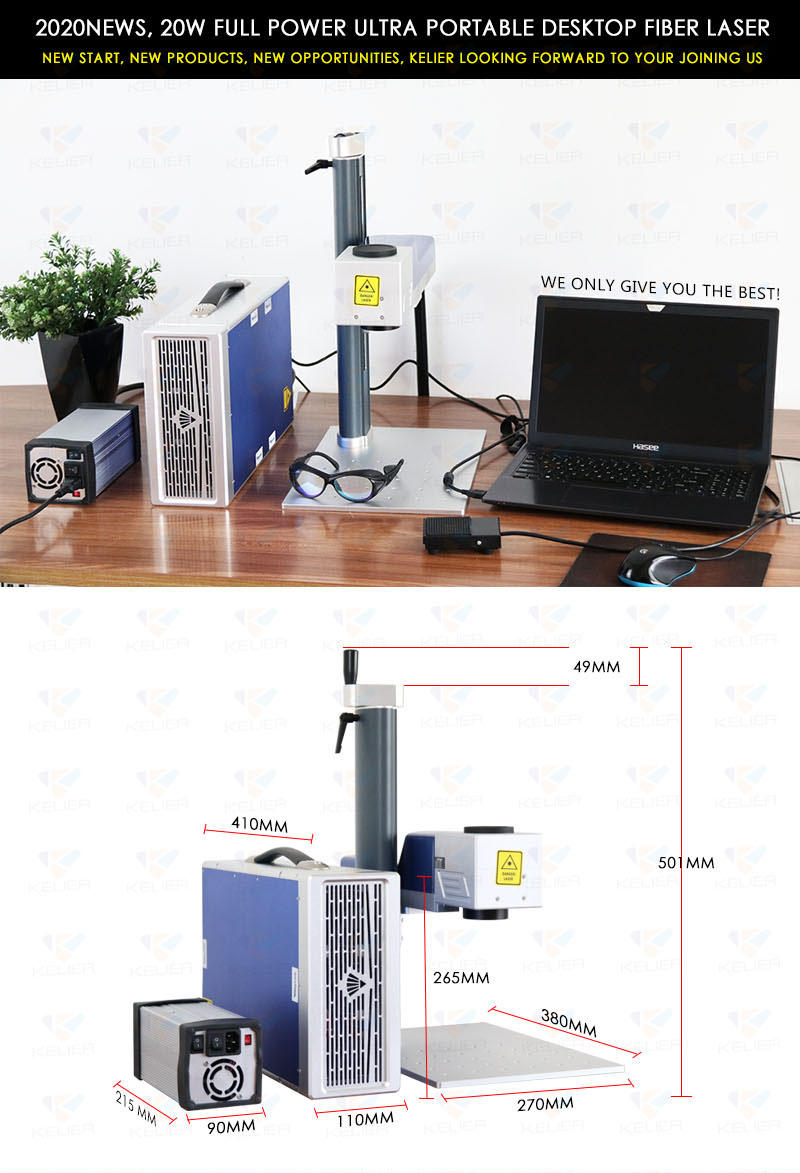

    Description for KELIER Portable Laser Marker

    Portable 2020news 20W KELIER laser marking machine can be used in many fields, such as tool steel, cemented carbide, aluminium, anodized parts and so on. It can be used to mark customer parts and logos of robots and automobiles to meet specific customer requirements. KELIER's laser machine is clearly marked to meet the needs of more customers.



    Our customers are very satisfied with our services and products. If you are looking for a high quality and reasonable price optical fiber laser marking solution, then KELIER is the company.



    fiber laser marking machine with rotary metal photo printing machine qr code laser printerfiber laser marking machine with rotary metal photo printing machine qr code laser printer





    KELIER fiber laser is used to provide accurate marking for all types of metals, plastics and paint materials. The estimated duration is 100,000 marking hours. Without maintenance, you can rely on KELIER laser marking devices in the coming years and years.



    1. Ultra-small fiber laser manufacturing machine, easy to move.

    2. Wide scope of application: suitable for all kinds of metal and plastic, leather, ABS and other non-metallic materials.

    3. Permanent marking: It will not fade, run or become less clear over time.

    4. Long service time: The working time of the fiber laser model exceeds 100,000 hours. There was little maintenance during this period.

    5. Simple operation: support almost all Windows-based software, such as coreldraw, autocad, photoshop.

    6. High accuracy: 0.003mm multiple positioning accuracy. The minimum line width is 0.01 mm.

    7. Non-contact process: It will not cause mechanical extrusion or mechanical stress to the material.



    fiber laser marking machine with rotary metal photo printing machine qr code laser printerfiber laser marking machine with rotary metal photo printing machine qr code laser printer

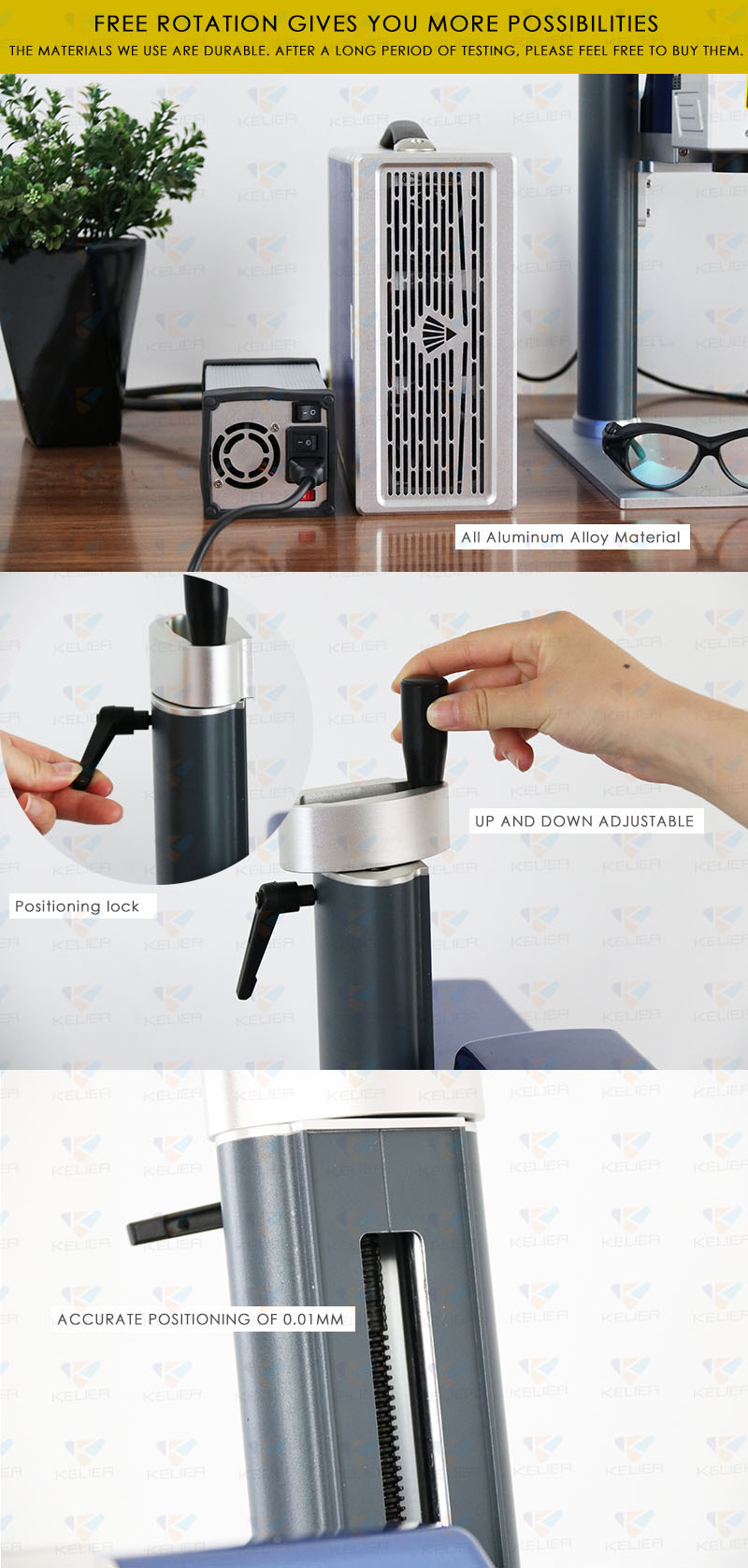

    The laser printer head can be rotated, adjusted up and down, and adjusted back and forth.

    Optical Fiber Transmission-Optical Beam Transmission with Integrated Optical Isolator

    Very light, with handle, easy to carry.

    Working with 110V-240V standard plug

    Q-switched fiber laser with pulse energy up to 0.5 MJ can be engraved on hard materials.

    Lasers absorb only 250 watts of power (less than computers) Wavelength 1060-1070 NM

    Laser Document Flash Memory 2 meter optical cable

    Genuine laser software, no alignment required

    Emergency stop button Small exhaust fan



    fiber laser marking machine with rotary metal photo printing machine qr code laser printer



    Advantages of this printer



    1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

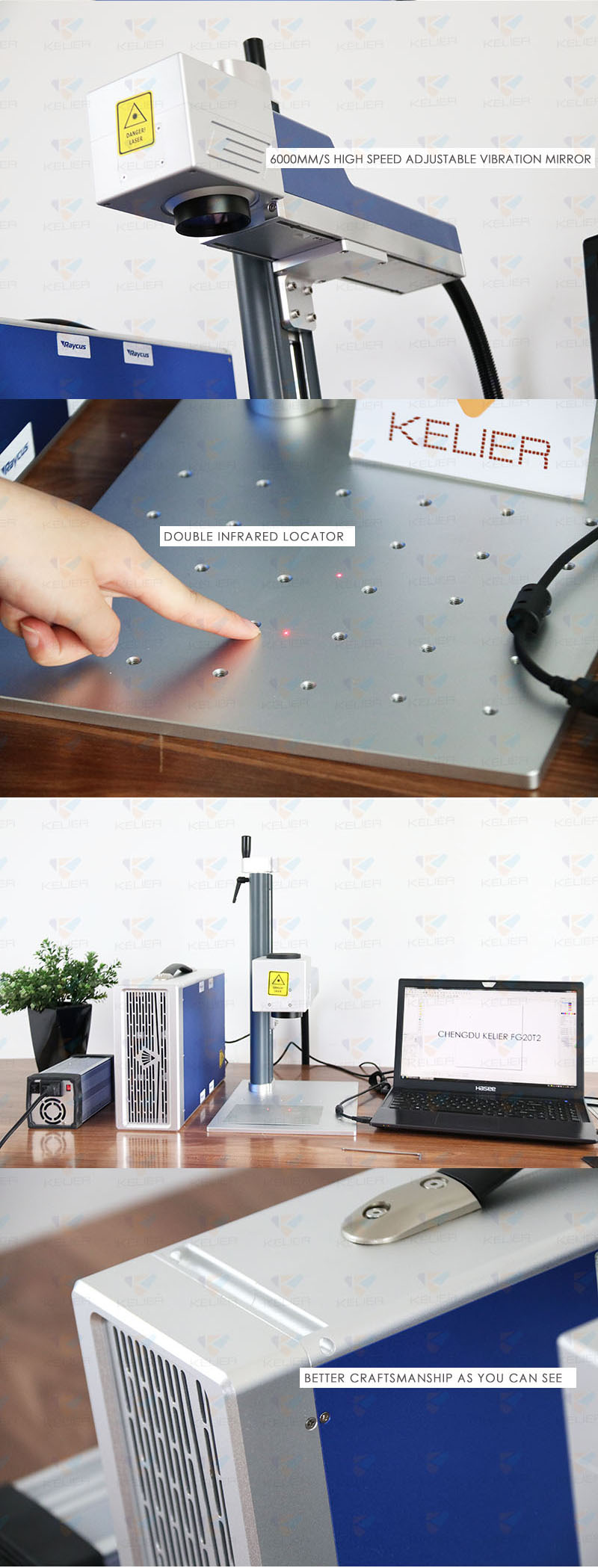

    2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.

    3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.

    4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.

    5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.

    6. KELIER HB3 Easy transport and can be displayed separately according to user’s site space situation.



    fiber laser marking machine with rotary metal photo printing machine qr code laser printer



    Portable Fiber Laser Marking Machine laser marking machine 20w Advantages:



    1) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.

    2) Superior Laser Beam: The definition is 1 micron,10 times as that of traditional products.

    3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.

    4) High Speed: 8000mm / second, is 3 to 5 times above that of traditional products.

    5) The fiber laser beam comes out from the MAX/Raycus fiber device directly,no need to adjust the laser optical path.



    fiber laser marking machine with rotary metal photo printing machine qr code laser printer

    Technical Paramet



    Portable Laser Marker Product parameters
     Optional Model  FG20T2
     Laser power  20 W
     Working Area  110*110/150*150/175*175mm Optonal
     Laser source  Raycus
     Laser wavelength  1064 nm
     Beam quality  M2 < 1.5
     Modulation frequency  20-80 khz
     Column Lift Range  140-370 mm
     Carving speed  0-6000 mm/s
     Focusing mode  Support for automation or manual
     Marking speed  600-1000characters/Min
     Minimum line width  0.02 mm
     Minimum characters  0.15 mm
     Repeatability accuracy  ±0.002 mm
     Cooling method  Air Cooling
     Use environment  IP5 Clean, dustless or less dusty
     control software  MAXCAD
     Laser indicator   Double Red dot pointer
     working temperature  10-35 ℃
     Power consumption of the whole machine  ≤ 800 W
     Electricity demand  AC220V±10%,50 HZ
     Net Weight  21.5kg
     Packing Weight  26.5kg
     Graphic format supported  bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.

    Applications

    Product Applications If you are a user of special products, such as jewelry processing, jewelry processing, you can choose our special rotary printing table, the quality is better and more accurate; at the same time, we also have a variety of automation equipment, you can consult us for more information.



    fiber laser marking machine with rotary metal photo printing machine qr code laser printer



    Applicable Industries:

    Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.



    Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industrie



    fiber laser marking machine with rotary metal photo printing machine qr code laser printer

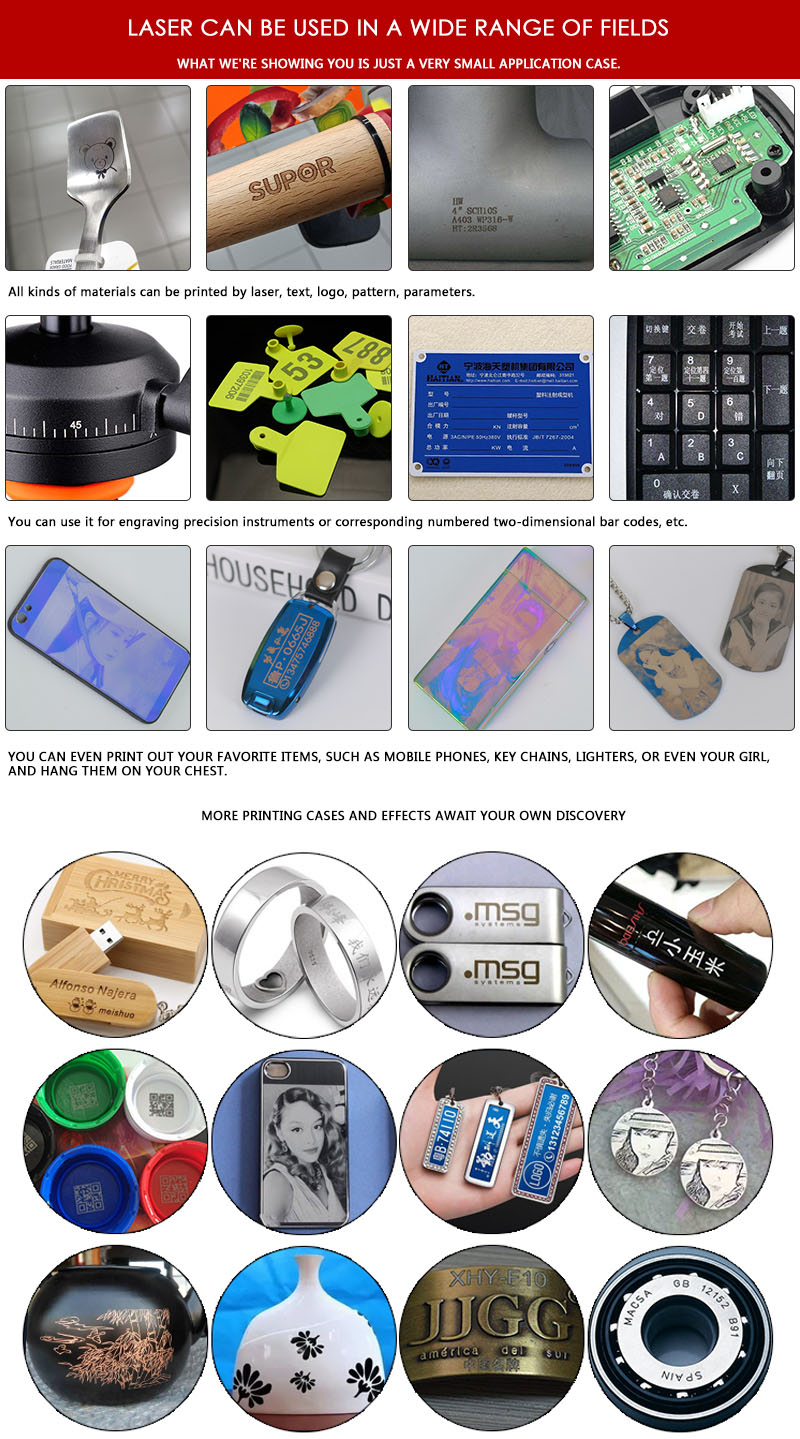

    Applied Materials:



    1.All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface o

    xygen decomposition



    2.Non-metallic:non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material



    fiber laser marking machine with rotary metal photo printing machine qr code laser printer

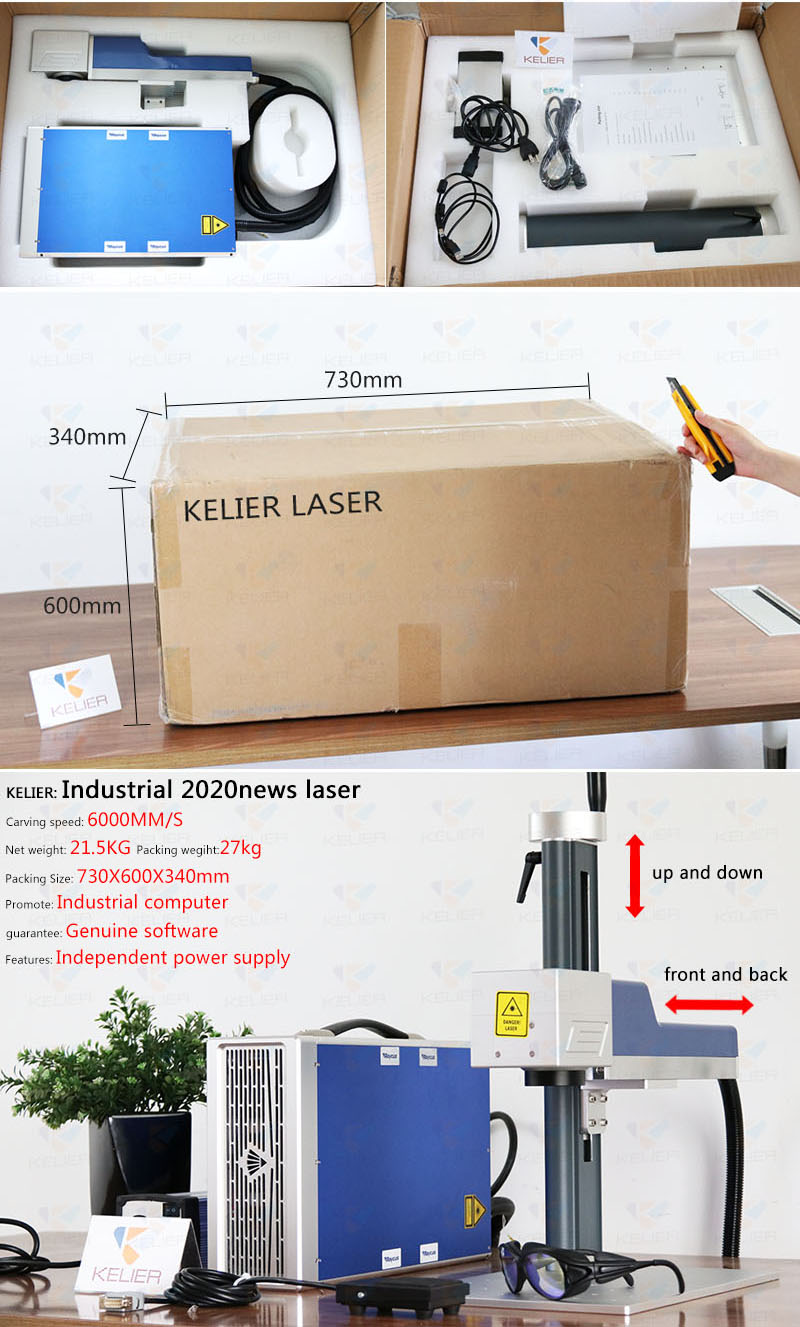

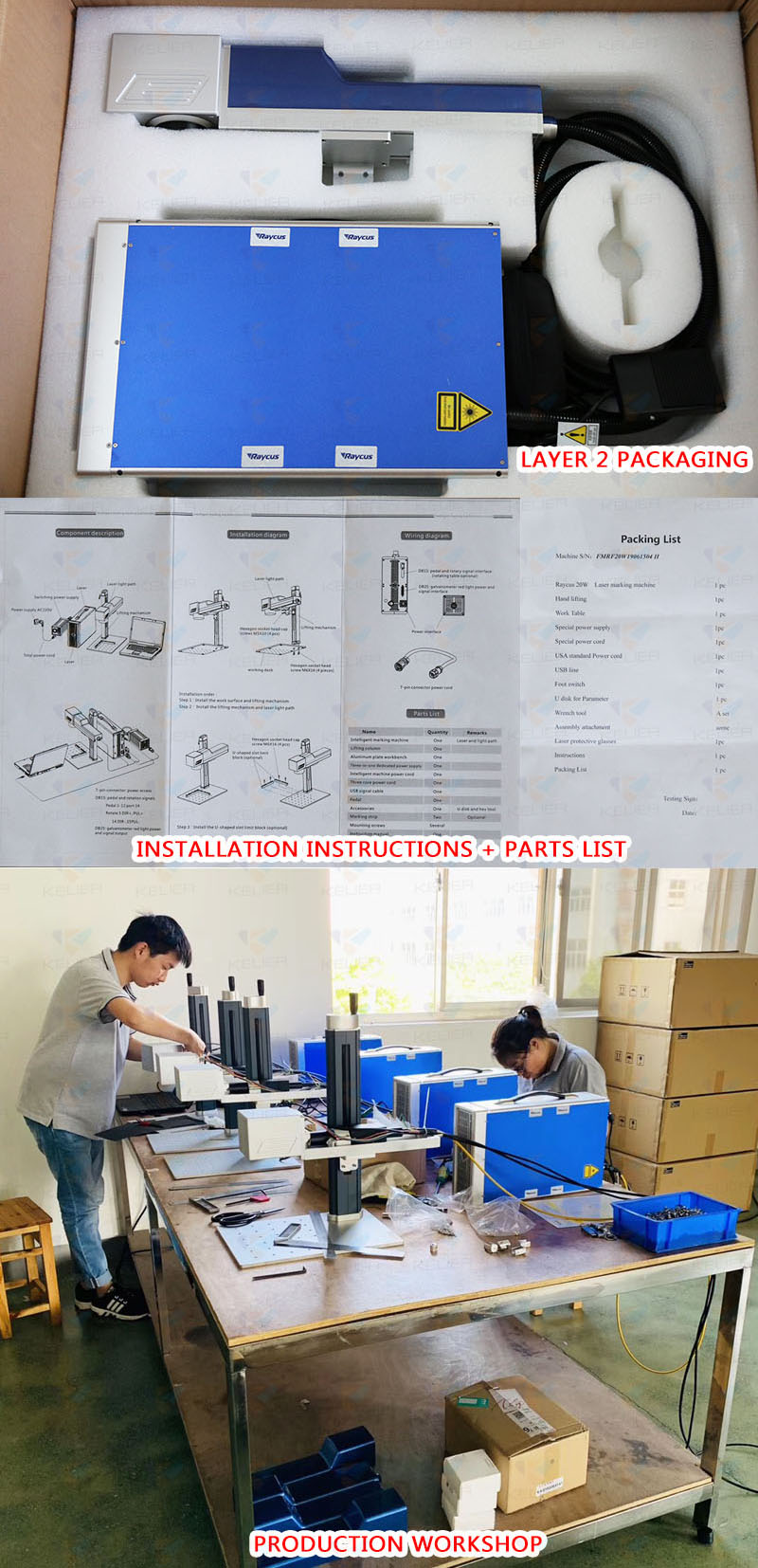

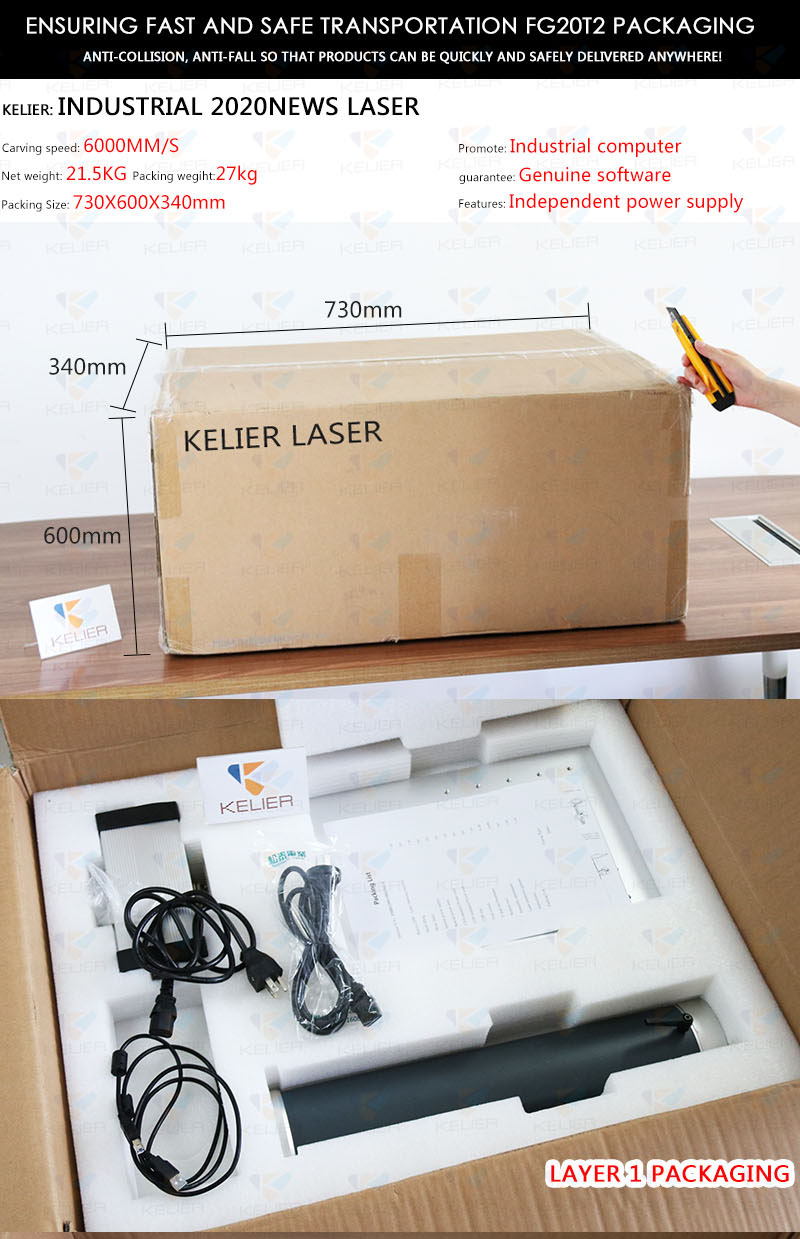

    Packaging & Shipping



    Outside: Cardboard box packing 73*34*60cm, 27 kg
    Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
    The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.



    Packing list
    Title Size(cm) G.w(kg) Remarks
      Laser packaging    73*34*60    27      Cardboard box packing
      Rotating platform packaging    30*23*17    6.5      Cardboard box packing
    it is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator.
      Packing List
    Items Pics
     Raycus 20W    1      Standard packing
     Hand Lifting    1
     Work Table    1
     Special power supply    1
     Special power cord    1
     Special power cord    1
     USA standard Power cord    1
     USB line    1
     U disk for Parameter    1
     Wrench tool    1
     Packing List    1
     Instructions    1

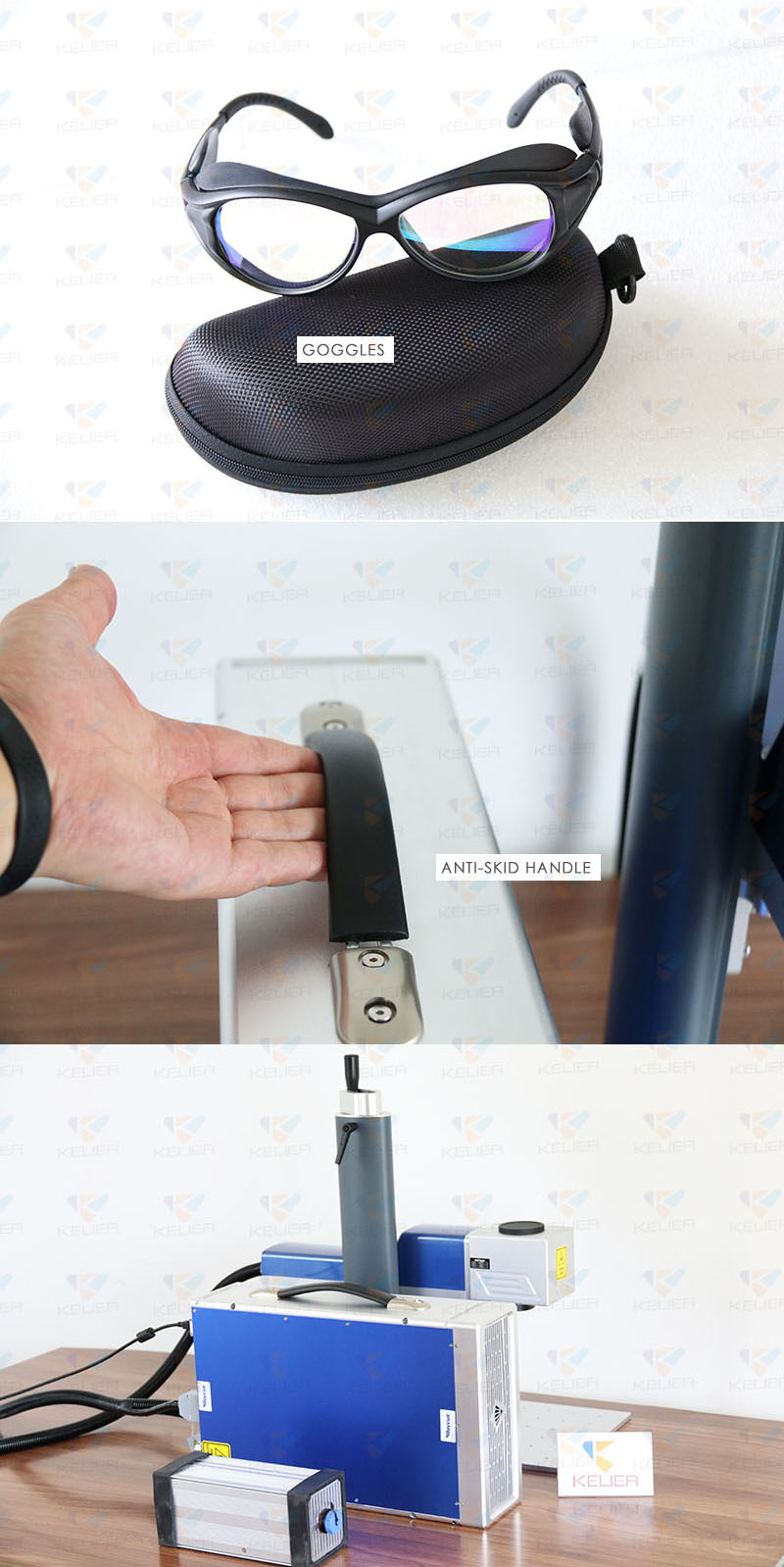

     Laser protective glasses    1
     Assembly attachment    some
     Foot Switch    1



    fiber laser marking machine with rotary metal photo printing machine qr code laser printer

    fiber laser marking machine with rotary metal photo printing machine qr code laser printer



    Shipping Method

    1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;

    2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery;

    3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non- urgent goods.

    4. Your shipping agent or forwarder.

    Information you need to know before buying

    1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by wechat, whatsapp,QQ etc in time when problems happen, if necessary, overseas service is available.

    2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department.

    3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required.

    4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.



    FAQ

    1,How about the documents after shipment?

    After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.



    2,How long is the delivery time?

    For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.



    3,Do You Arrange Shipment For The Machines?

    Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.



    4,How is the packing?

    Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading



    5: I know nothing about this machine, what type of machine should I choose?

    We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.



    6: When I got this machine, but I don’t know how to use it. What should I do?

    We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.



    7: If some problems happen to this machine, what should I do?

    We provide three years machine warranty. During the three-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.



    8: What’s consumables of laser marking machine?

    A: It does not have consumable. It’s very economical and cost effective.



    9: What’s package, will it protect the products?

    A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
