Kelier - Portable laser wire marking machine parts made in china for plastic Fiber laser marking machine
Chengdu Kelier Electronic Co., Ltd. summarizes the defects of past products, and continuously improves them. Technology is the core competitiveness of a company. Since established, we have been researching and developing high-level technologies to make sure highly efficient manufacturing process.It covers a wide range and is commonly seen in the application field(s) of Laser Marking Machines. Reflecting the latest industry trend and development, our Portable laser wire marking machine parts made in china for plastic is designed to be attractive enough to catch people's attention. Moreover, it has some excellent characteristics, which makes it more value-added. In this competitive market, this Laser Marking Machines has the greatest appreciation space.
| Application: | Laser Marking | Working Accuracy: | 0.001mm |
| Graphic Format Supported: | AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPG | Laser Type: | Fiber Laser |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD borad |
| Place of Origin: | Sichuan, China | Brand Name: | Kelier |
| Laser Source Brand: | MAX | Control System Brand: | EZCAD |
| Marking Head Brand: | SINO GALVO | Key Selling Points: | Low Noise Level |
| Warranty: | 3 years | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, laser marking machine |
| Marking Speed: | 0~12000mm/s | Marking Depth: | 0.01-1mm |
| Standard marking area: | 50mm*50mm--- 300mm*300mm | Laser generator Life: | 100,000hours |
| Frequency of pluse: | 20KHZ~80KHZ | Repeated accuracy: | 0.001mm |
| Laser source: | Raycus/MAX | Power supply: | AC220V/50Hz;110V/60Hz |
| Laser Power: | 20W/30W/50W | Applicable Material: | Metal Materials |
| Certification: | ce, ISO, CCC | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| Brand: KELIER | Model: FG20/30/50F | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 20W/30W/50W |
| DCarving speed:0-12000mm/s | Voltage: 110V-240V | Packing weigth:120kg |
| Name:Portable laser wire marking machine parts made in china for plastic | ||
| Description:The KLE-FCF Series Flying Laser Marking Printer can be equipped with different kinds of laser sources (fiber, co2, or UV) and printer system. It can be widely used in food and beverage, pharmaceutical, tobacco, leather industry. This is the 30W fiber source flying laser marking printer, it could be used for metal and nonmetal flying marking combined with various kinds of the production line. There is another co2 laser source online laser marking printer available especially for nonmetal materials’ online marking. | ||

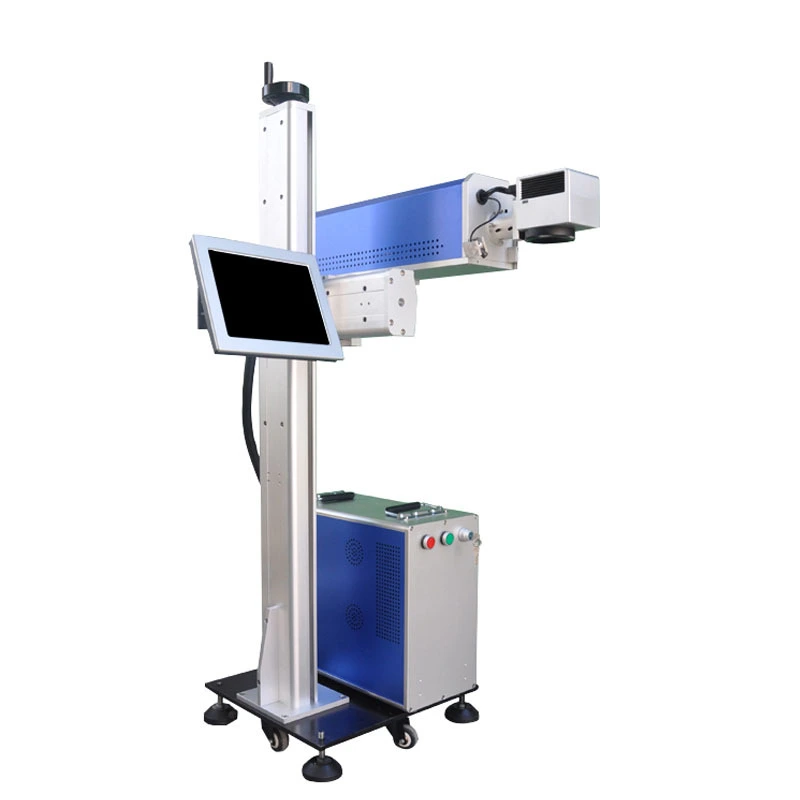

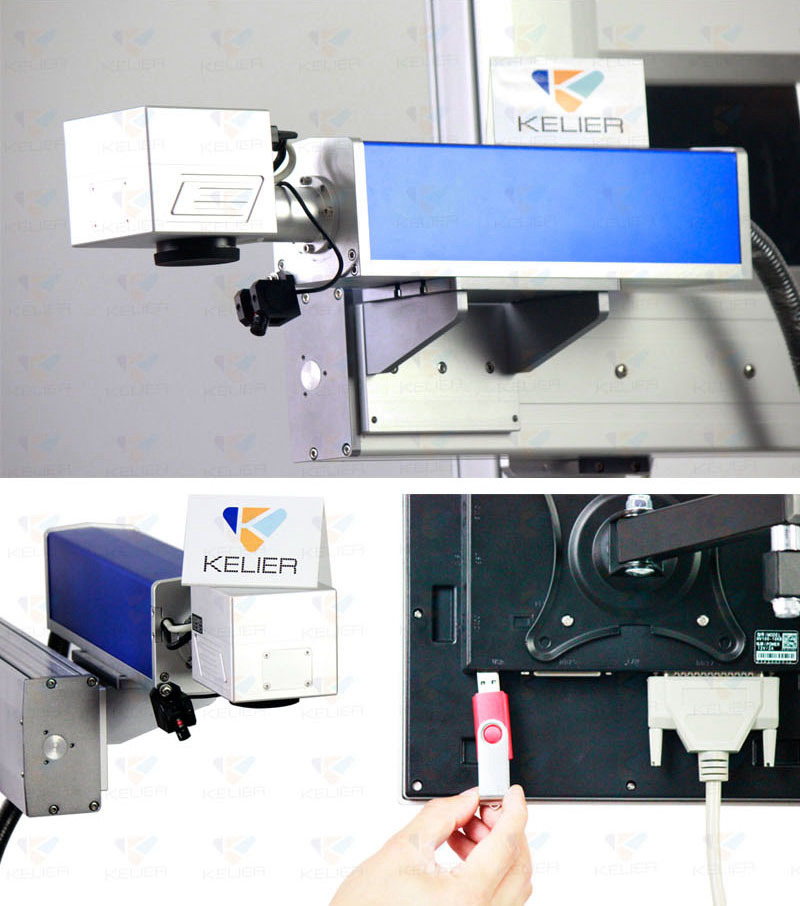

Flying Fiber Laser Marking Machine Flying Marking, also called online laser marking;Advanced digital high-speed scanning galvanometer;Embedded laser operating software system.

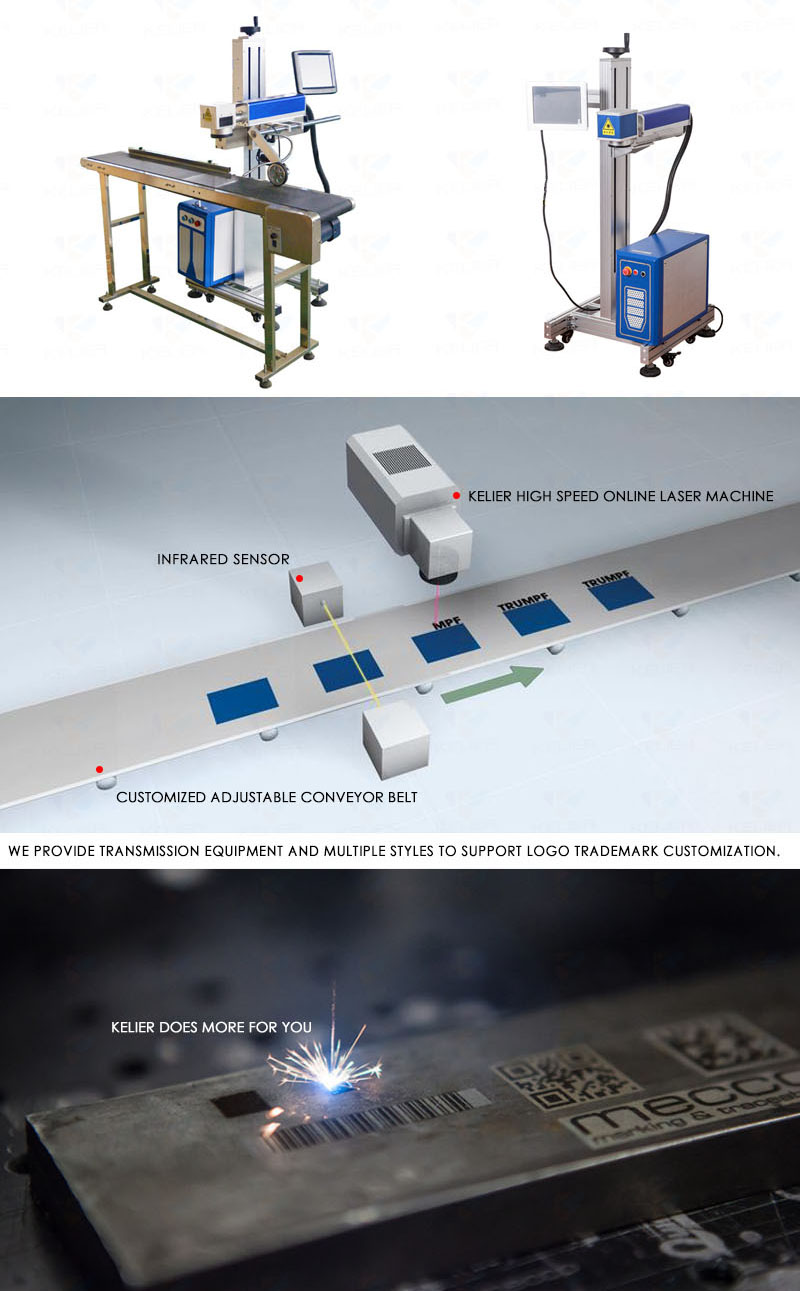

Flying Fiber Laser Marking Printing Machine General Introduction: Flying Laser Marking Printing Machine 30W is laser marking printer especially matched for the automatic production line for flying printing & marking for the date codes or barcodes. Compared to the traditional inkjet printer, Flying Laser marking printer has zero consumption of any materials, no need ink, no pollution, no noise, energy saving and environmental protective.
Efficiency: compact structure, professional support can be easily installed on the assembly line, complex working conditions of the assembly line can also cope with free, easy to adapt to the needs of industrial mass production.
Low cost: high electro-optic conversion rate, no consumables, saving processing costs
Long service life: professional industrial laser, to ensure faster marking speed and consistency of marking, to ensure 24-hour
continuous and stable processing, maintenance-free time of 100,000 hours+
Easy to operate: friendly man-machine dialogue interface, what you see is what you get, easy to operate, free from the trouble of frequent changes of workers.
| KELIER Industrial Laser Marker parameters | |

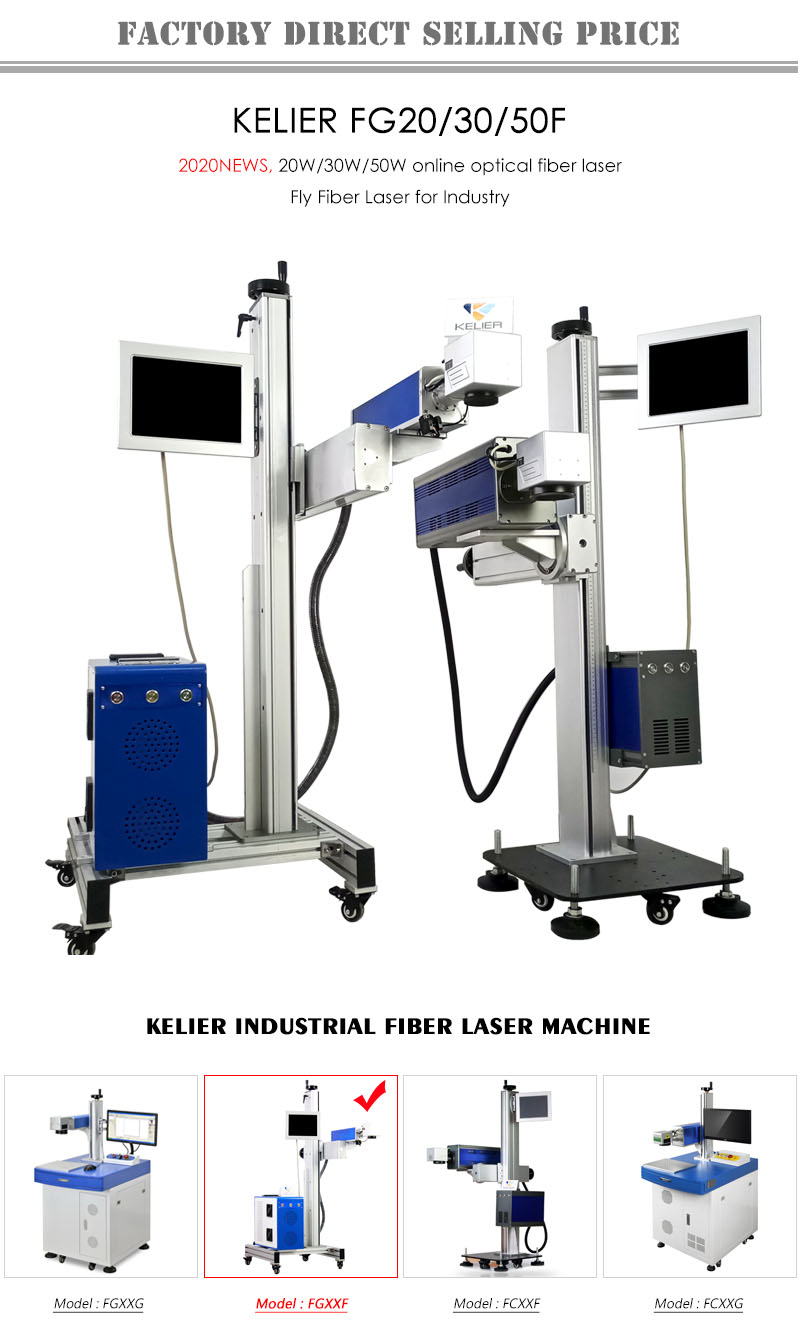

| Optional Model | FG20F/FG30F/FG50F |
| Laser power | 20W30W50W(optional) |
| Laser source | China Max or Raycus German IPG fiber laser |
| Laser wavelength | 1064 nm |
| Beam quality | M2 < 1.4 |
| Modulation frequency | 20kHz~110kHz |
| Marking range | 30mm x 30mm - 300mm x 300mm can be optional |
| Carving speed | 0-9000 mm/s |
| Carving depth | 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material |
| Focusing mode | Support for automation or manual |
| Marking speed | 600-1000characters/Min 0-9000mm/s |
| Minimum line width | 0.002 mm |
| Minimum characters | 0.15 mm |
| Repeatability accuracy | ±0.002 mm |
| Cooling method | Air Cooling |
| Use environment | IP4 Clean, dustless or less dusty |
| Laser type | Pulse or continuous |
| control software | Authorization EZCAD marking control software |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |

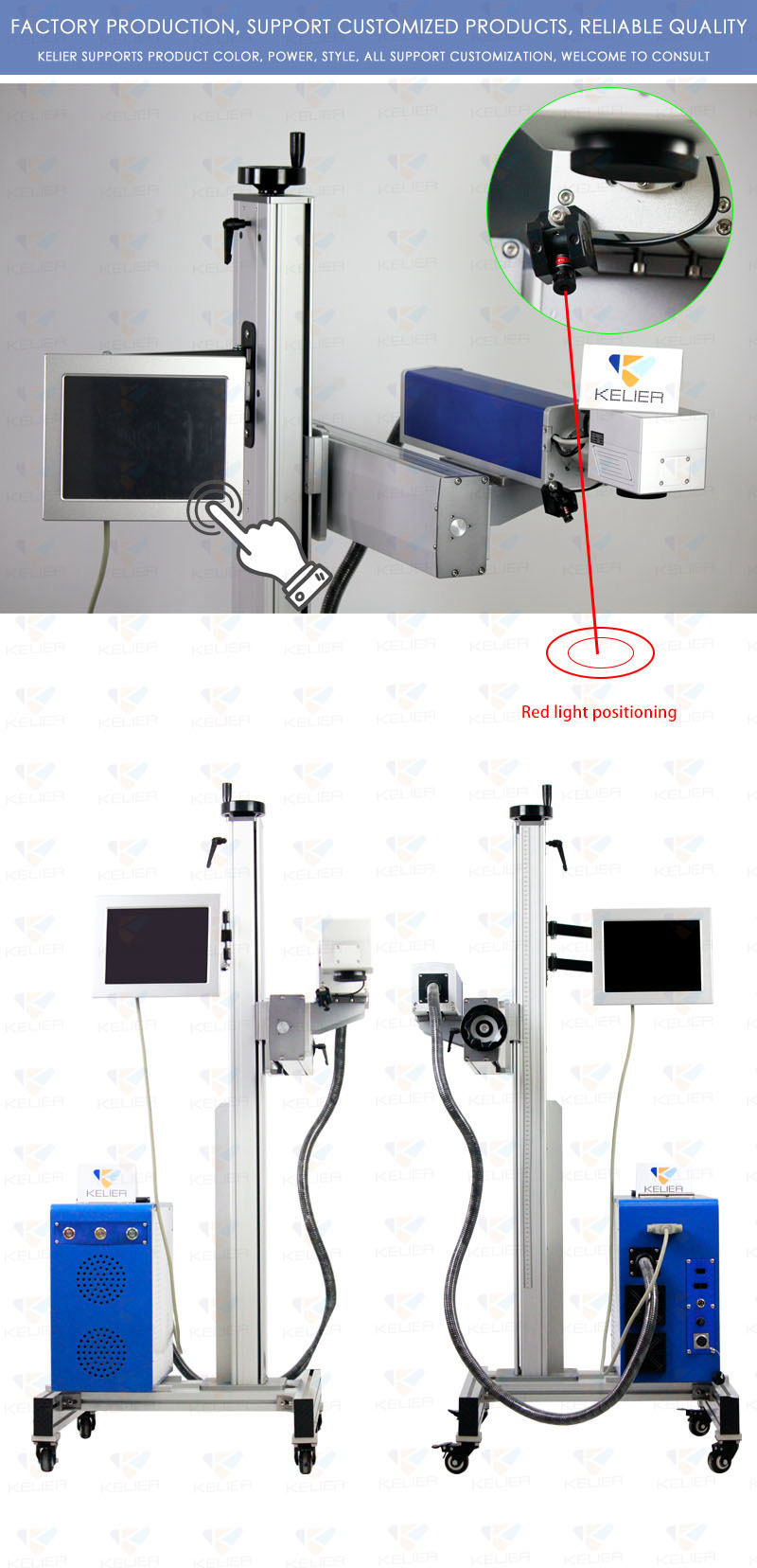

| Laser indicator | Double Red dot pointer |
| Operating system | Win98/Win2000/WinXP/win7 (64,32bit)win8/win10 |
| working temperature | 0-35 ℃,90% or humidity |
| Power consumption | ≤ 550 W |
| Electricity demand | AC110V-240V±10%,50 HZ/60HZ |
| This product contains computers. The following is the configuration list of the dedicated computers. | |
| Computer configuration parameters | |
| CPU | Intel G630X2/I3 540 |
| Memory | ADATA 4G/8G DDR3L 1600 |
| BIOS | AMI EFI BIOS |
| Super I/O | Winbond W83627DHG-P / HG41/HG55 |
| Ethernet | 1x LAN Intel I211(IO) |
| GPU | Intel HD Graphics |
| Display interface | 1x HDMI:1920×1200@60Hz |
| Hard disk | 60G/120G/500G |
| USB interface | 4xUSB |
| serial port | 1x RS232,COM1,RS422,RS485 |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux |
| working temperature | 0℃~ 60℃ |
| Storage temperature | -40℃~ 85℃ |
| humidity | 5% ~ 95% Relative humidity, no condensation |

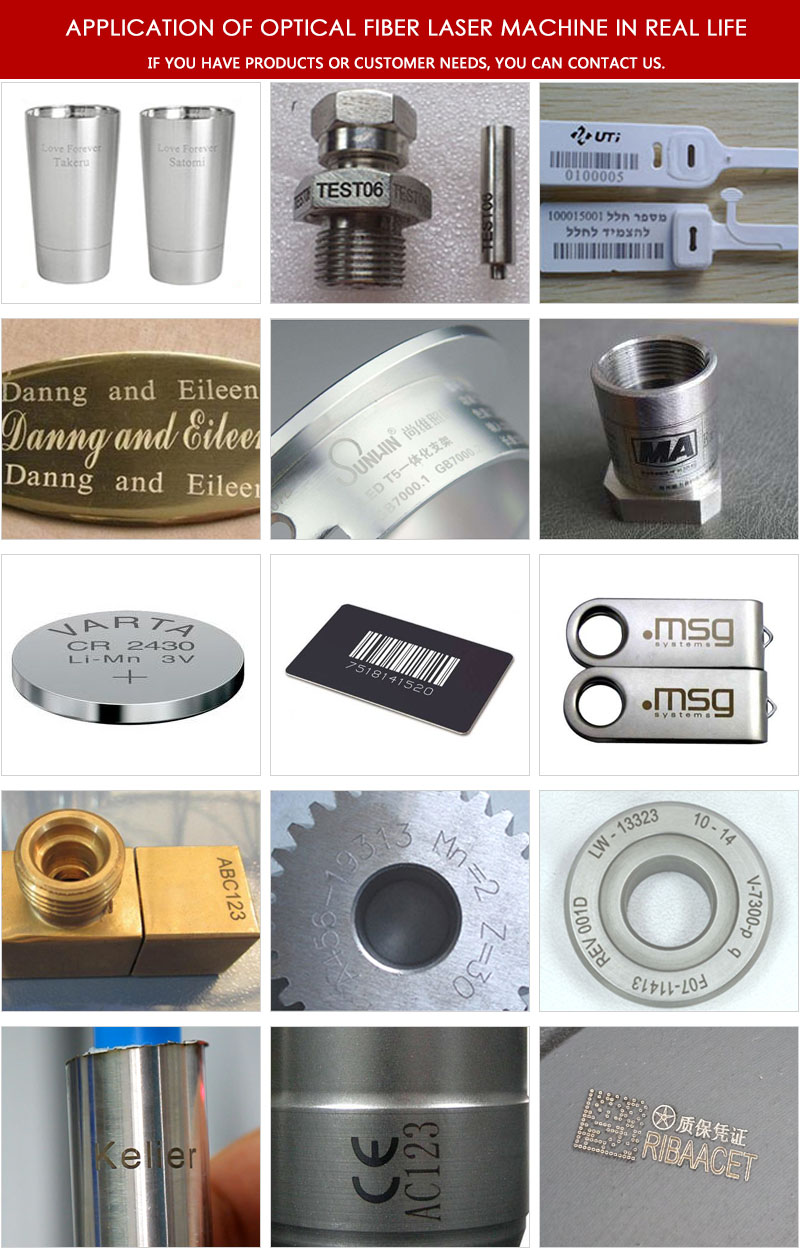

Flying Fiber Laser Marking Printing Machine Application:
The machine can be widely used in food and beverage,pharmaceutable, tobacco, leather, package, building materials, lighting, accessories, cosmetics, electronics,kitchen&bathroom hardware, shells of cell phone and watches, medical apparatus and instruments, tubular product, cable, plastic, cable and other industries.
Application Industry:
KELIER Fiber Laser Online Marking Machine is widely used in the marking of packaging industry, such as anti-counterfeiting laser spraying code (drug monitoring code), anti-counterfeiting chain traceability system (bottle cap system), anti-counterfeiting marking of food and beverage, three-code marking of daily hygiene products, smart card information marking, anti-counterfeiting marking of tobacco, online marking of pipes, etc.

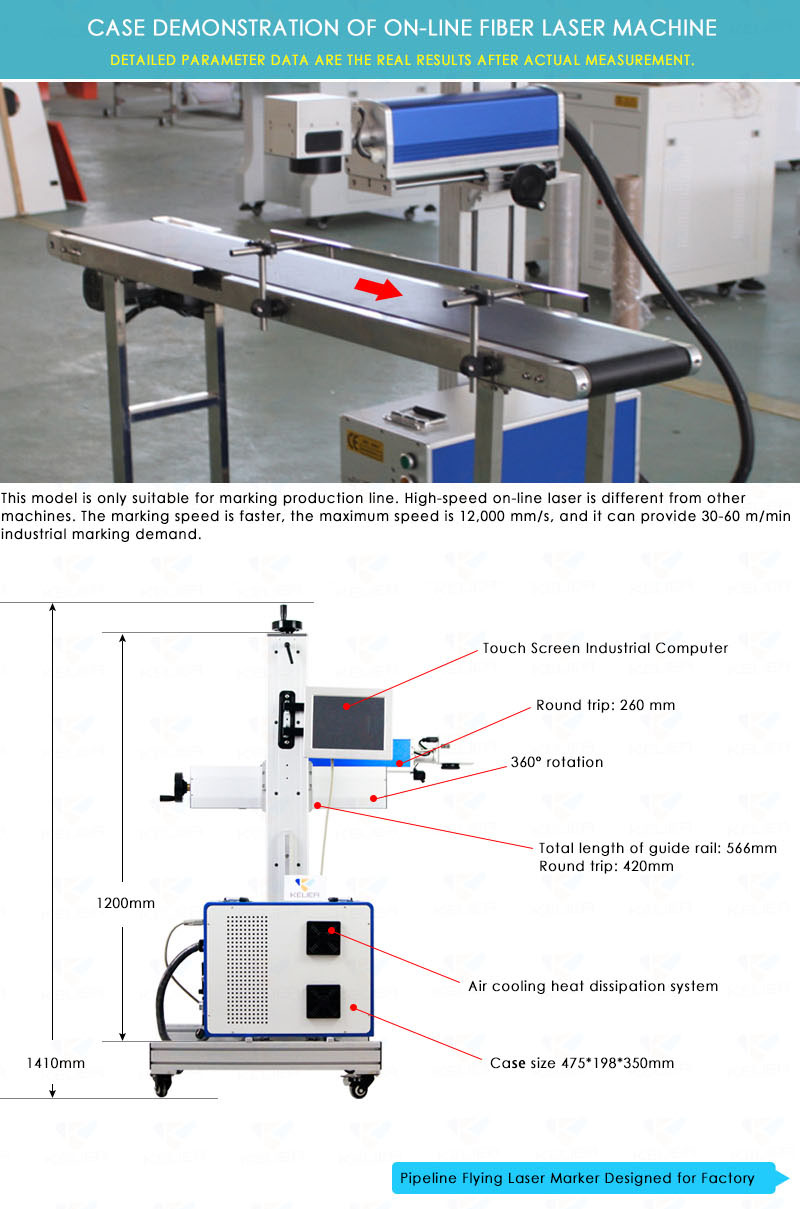

KELIER flying online laser marking printer for the automatic production line, compared to the traditional inkjet printer, Online Laser marking printer has zero consumption of any materials, no need ink, no pollution, no noise, energy conservation and environmental protection.
| Packing list | ||
It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator.

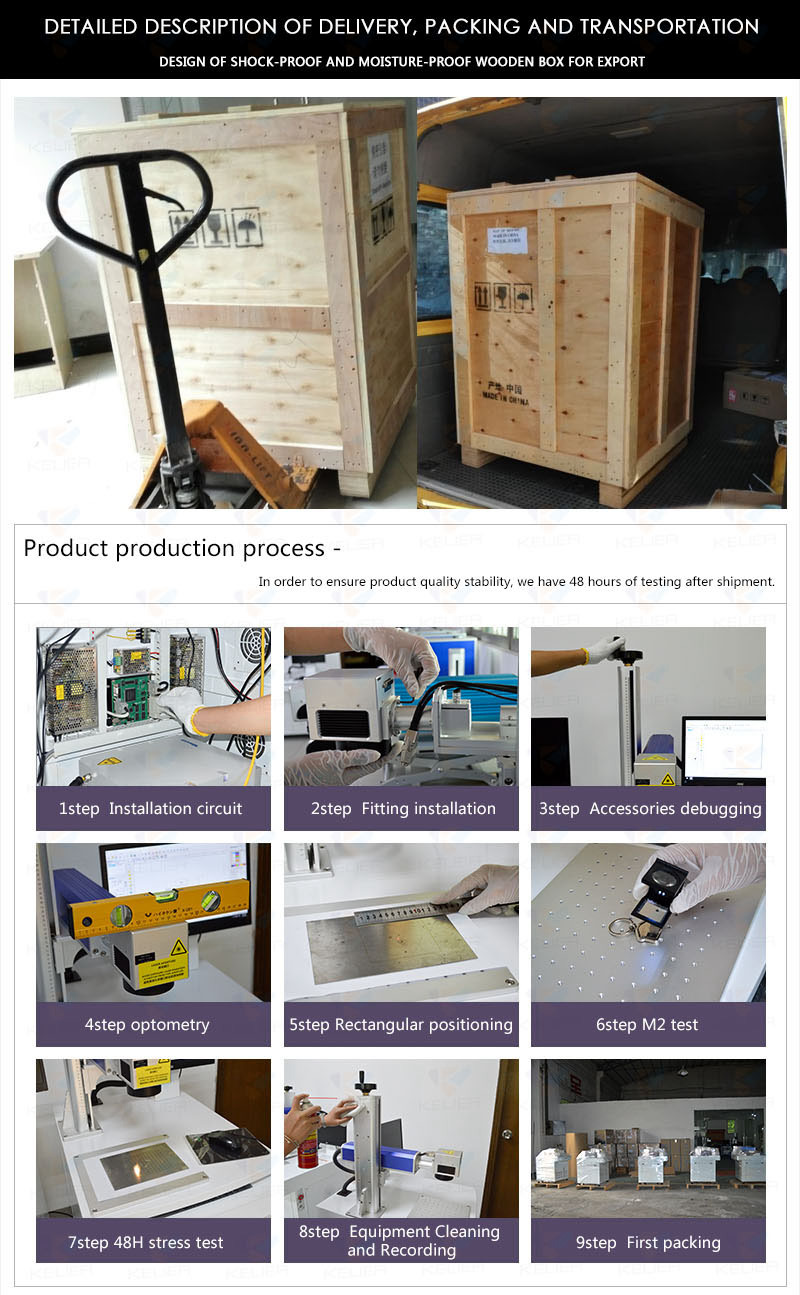

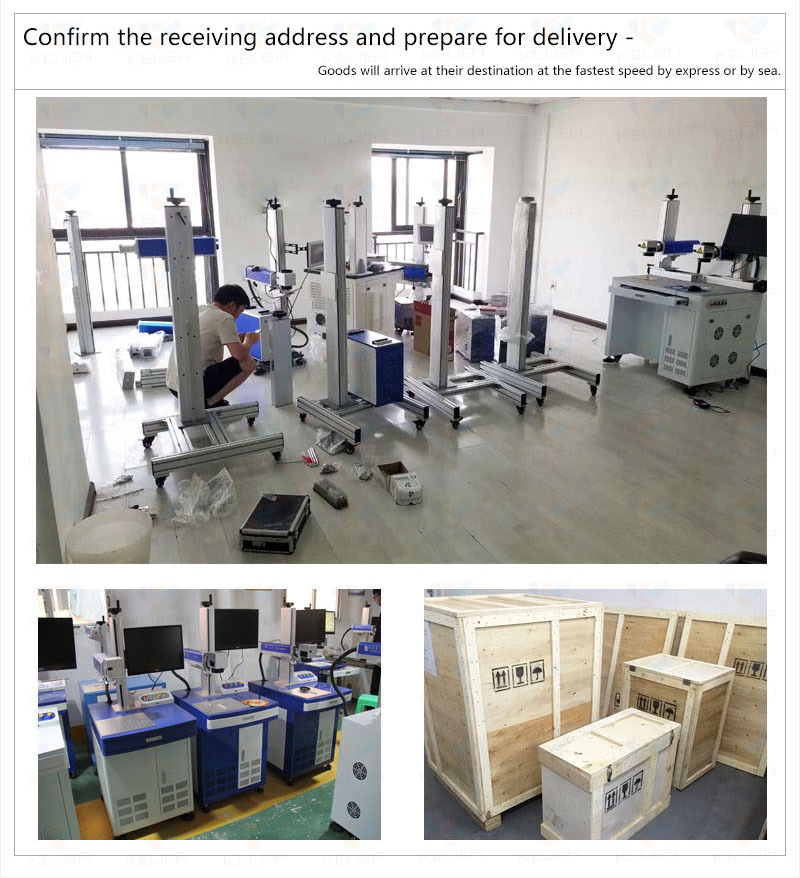

Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
| ||
| Packaging size/weight(mm):900(L)*800(W)*1060(D) / 120KG | ||
| Part name | Brand origin | Quantity |
| Fiber laser | Raycus/Max/Ipg | 1 sets |
| High speed scanning galvanometer | Beijing SINO GALVO | 1 sets |
| Focusing lens | Singapore wavelength | 1 sets |
| Marking software | EZCAD | 1 sets |
| Indicator locator | Xi'an sapling | 1 sets |
| Power switch | Taiwan Meanwell | 1 sets |
| Laser frame | Self-control | 1 sets |
| Print foot | Customized | 1 sets |
| Equipment switch | Shanghai Jia Jia | 1 sets |
| Control computer(Include) | desktop computer | 1 sets |
| Rotary Printing Table (Order) | Dongsheng Precise | 1 sets |
| Instructions | Video, text and pictures | 1 sets |
| Shipping Method |
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods. |
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available. |
2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
Q1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .
Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?
Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.
Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.
Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
