Kelier - 10w fiber laser marking machine automatic date code printing machine made in china Fiber laser marking machine
Having set up a team who are always involved in the product R&D,Chengdu Kelier Electronic Co., Ltd. keeps developing products on a regular basis. Our 10w fiber laser marking machine automatic date code printing machine made in china is launched to all customers from different fields. 10w fiber laser marking machine automatic date code printing machine made in china provides not only excellent quality, but also very favorable price. Over the years,10w fiber laser marking machine automatic date code printing machine made in china has been widely recognized by customers who have cooperated.
| Application: | Laser Marking | Working Accuracy: | ±0.002 mm |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, PDF | Laser Type: | Fiber Laser |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | MAXCAD |
| Place of Origin: | Sichuan, China | Brand Name: | KELIER |
| Laser Source Brand: | MAX | Control System Brand: | MAXCAD |
| Marking Head Brand: | Sino Galvo | Weight (KG): | 30 KG |
| Key Selling Points: | Sustainable | Warranty: | 3 years |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, materials | Marking Area: | 250mm*250mm |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Other |
| Name: | 10w fiber laser marking machine | Power supply: | 10W/20W |
| Laser source: | Max or Raycus | Laser wavelength: | 1064 nm |
| Marking range: | 100/200 mm | Carving speed: | 0-6000 mm/s |
| Marking speed: | 600-1000characters/Min | Computer: | Intel J1900 Processors |
| Hard disk: | 32GB | operating system: | WIN7 32bit/WIN8/LINUX |
| Certification: | ce | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Morocco |
| Showroom Location: | Russia | Marketing Type: | New Product 2019 |
| Brand: KELIER | Model: FG10/20HB3 | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 10W/20W |
| DCarving speed:6000mm/s | Voltage: 110V-240V | Weight: 10kg/packing weigth:16kg |
| Product Name:10w fiber laser marking machine automatic date code printing machine made in china | ||
| -KELIER FG20HB3 The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increases the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon. | ||
Features about Smart Handheld Fiber Laser marking machine 2020news
1. The whole machine is light weight, small size, easy to carry. The galvanometer can be rotated to 90 degrees according to the requirements of side marking, suitable for pipeline work.
2. Desktop and portable dual-use design, you can not only finish desktop fiber marking by a fixed bracket ,but also complete the hand-held marking by removable hand.
3. Comes with fixed auto-focus bracket ,easy to use, save time and labor.
4. Laser in the fiber wave by the increase in oscillation, good stability, free from external dust and mechanical loosening of the impact of the output of the laser beam stability.
5. Maintenance-free operation, the laser without any maintenance, do not have to adjust or clean the lens, no supplies.
6. the processing speed is fast, and the processing speed is 2-3 times of the traditional laser marking machine.
7. excellent Spot quality, high peak power, in the same material, the marking effect is best
8. Wear automatic lift platform, integrated air-cooled system, integrated design,with the beautiful appearance.

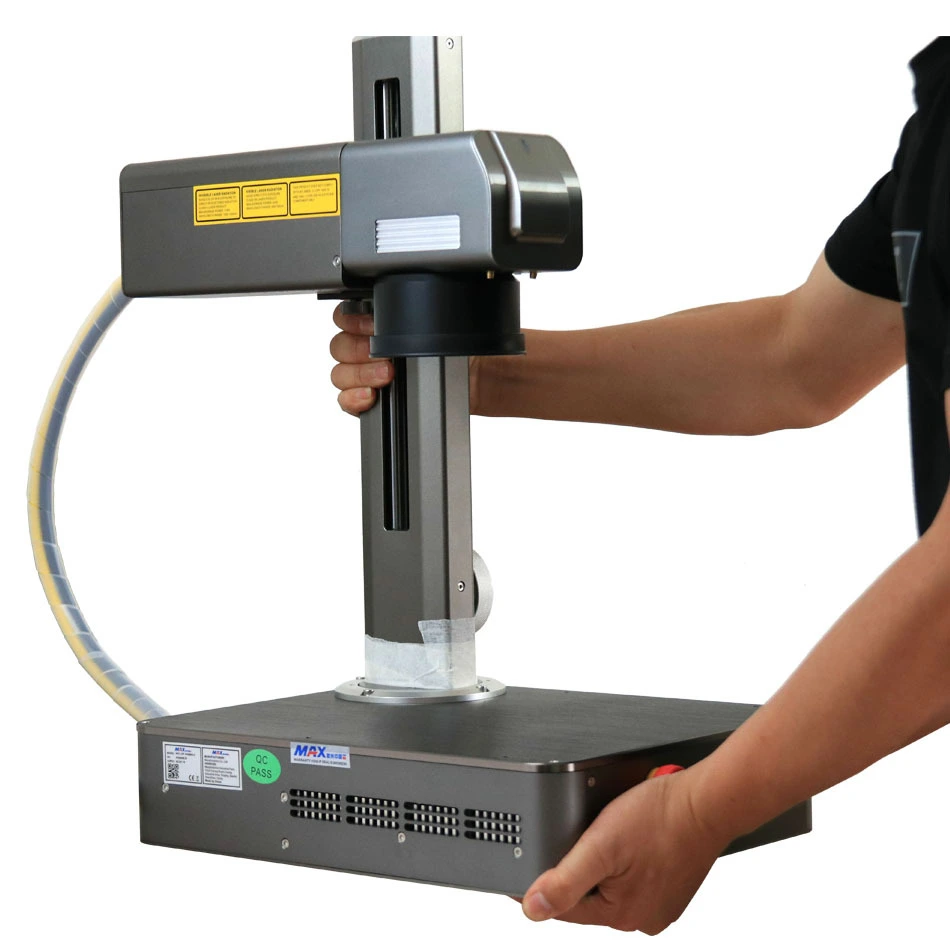

KELIER FG20HB3 Portable Handheld 20W Fiber Laser Marking Machine Wisely Used For heavy product not easy moving / Metal / Part of non-metal machine adopts the international advanced 20W pulsed lasers, with imported high-precision, high-speed optical scanner system and the focusing system. Machine fully enclosed design, the natural air-cooled, red indicates positioning, completely main machine power and control part of the highly integrated, so that installation and operation is very simple and free, completely done, "fool" mode of operation.
| Portable Laser Marker Product parameters | ||
| Optional Model | FG10HB3 | FG20HB3 |
| Laser power | 9.5±0.5 W | 19.5±0.5 W |
| Laser source | Max or Raycus | |
| Laser wavelength | 1064 nm | |
| Beam quality | M2 < 1.4 | |
| Modulation frequency | 20-50 khz | 30-60 khz |
| Marking range | 100/200 mm | |
| Carving speed | 0-6000 mm/s | |
| Focusing mode | Support for automation or manual | |
| Marking speed | 600-1000characters/Min | |
| Minimum line width | 0.02 mm | |
| Minimum characters | 0.15 mm | |
| Repeatability accuracy | ±0.002 mm | |
| Cooling method | Air Cooling | |
| Use environment | IP4 Clean, dustless or less dusty | |
| control software | MAXCAD | |
| Laser indicator | Double Red dot pointer | |
| working temperature | 10-35 ℃ | |
| Power consumption of the whole machine | ≤ 100 W | ≤ 160 W |
| Electricity demand | AC220V±10%,50 HZ | |
| Computer configuration parameters | ||
| CPU | Intel J1900 Processors | |
| Memory | ADATA 4G DDR3L 1600 | |
| BIOS | AMI EFI BIOS | |
| Super I/O | Winbond W83627DHG-P | |
| Ethernet | 1x LAN Intel I211(IO) | |
| GPU | Intel HD Graphics | |
| Display interface | 1x HDMI:1920×1200@60Hz | |
| Hard disk | 32G | |
| USB interface | 4xUSB | |
| serial port | 1x RS232,COM1,RS422,RS485 | |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux | |
| working temperature | 0℃~ 60℃ | |
| Storage temperature | -40℃~ 85℃ | |
| humidity | 5% ~ 95% Relative humidity, no condensation | |
Product Applications
Applicable industry: clothing materials, medicine packages, wine packages, building ceramics, beverage packages, cut fabrics, rubber products, nameplates, crafts and gifts, electronics and leather products , all kinds of metal ect .
Applicable materials: All kinds of nonmetals and metal materials. The machine supports a wide range of marking types including different patterns and graphics, logos, enclosure numbers, serial numbers, and text - for example, the information of producers and target regions, enabling effective prevention of disorderly competition caused by counterfeit products.
Handheld Mini Fiber Laser Marking Machine adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface. Widely used in food and beverage,leather, packaging, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.
Outside: Cardboard box packing 67*37*31cm, 16 kg
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.
| Packing list | |||
| Title | Size(cm) | G.w(kg) | Remarks |
| Laser packaging | 67*37*31 | 16 | Cardboard box packing |
| Rotating platform packaging | 30*23*17 | 6.5 | Cardboard box packing |
| it is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator. | |||
| Combination packaging | Items | Pics | |
| FG20/10Hb3 Laser machine | 1 | Standard packing | |
| Data line | 1 | ||
| Charger | 1 | ||
| Foot switch | 1 | ||
| Screw | 12 | ||
| Shipping Method |
|
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
|
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
|
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non- urgent goods. |
|
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
|
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by wechat, whatsapp,QQ etc in time when problems happen, if necessary, overseas service is available. |
|
2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
|
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
|
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
1,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
5: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
6: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
7: If some problems happen to this machine, what should I do?
We provide three years machine warranty. During the three-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
8: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
9: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
