Kelier - Ring jewelry laser marking machine Metal Coding Date Laser Fiber laser marking machine
After a long time of development,Chengdu Kelier Electronic Co., Ltd. has successfully launched Ring jewelry laser marking machine Metal Coding Date Laser. At Chengdu Kelier Electronic Co., Ltd., it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. Used in Laser Marking Machines,Ring jewelry laser marking machine Metal Coding Date Laserhas a promising application prospect.
| Application: | Laser Marking | Working Accuracy: | ±0.002 mm |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP, PDF | Laser Type: | Fiber Laser |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | MAXCAD |
| Place of Origin: | China | Brand Name: | KELIER |
| Laser Source Brand: | MAX | Control System Brand: | MAXCAD |
| Marking Head Brand: | sino galvo | Weight (KG): | 30 KG |
| Key Selling Points: | High-accuracy | Warranty: | 3 years |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, materials | Marking Area: | 250mm*250mm |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Other |
| Name: | KELIER FG10/20WHB3 laser marker | Power supply: | 10W/20W |
| Laser source: | Max or Raycus | Laser wavelength: | 1064 nm |
| Marking range: | 100/200 mm | Carving speed: | 0-8000 mm/s |
| Marking speed: | 600-1000characters/Min | Computer: | Intel J1900 Processors |
| Hard disk: | 32GB | operating system: | WIN7 32bit/WIN8/LINUX |
| Certification: | ce | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Egypt |
| Showroom Location: | Italy | Marketing Type: | New Product 2019 |
| Brand: KELIER | Model: FG10/20HB3 | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 10W/20W |
| DCarving speed:8000mm/s | Voltage: 110V-240V | Weight: 10kg/packing weigth:16kg |
| Product Name:Ring jewelry laser marking machine Metal Coding Date Laser | ||

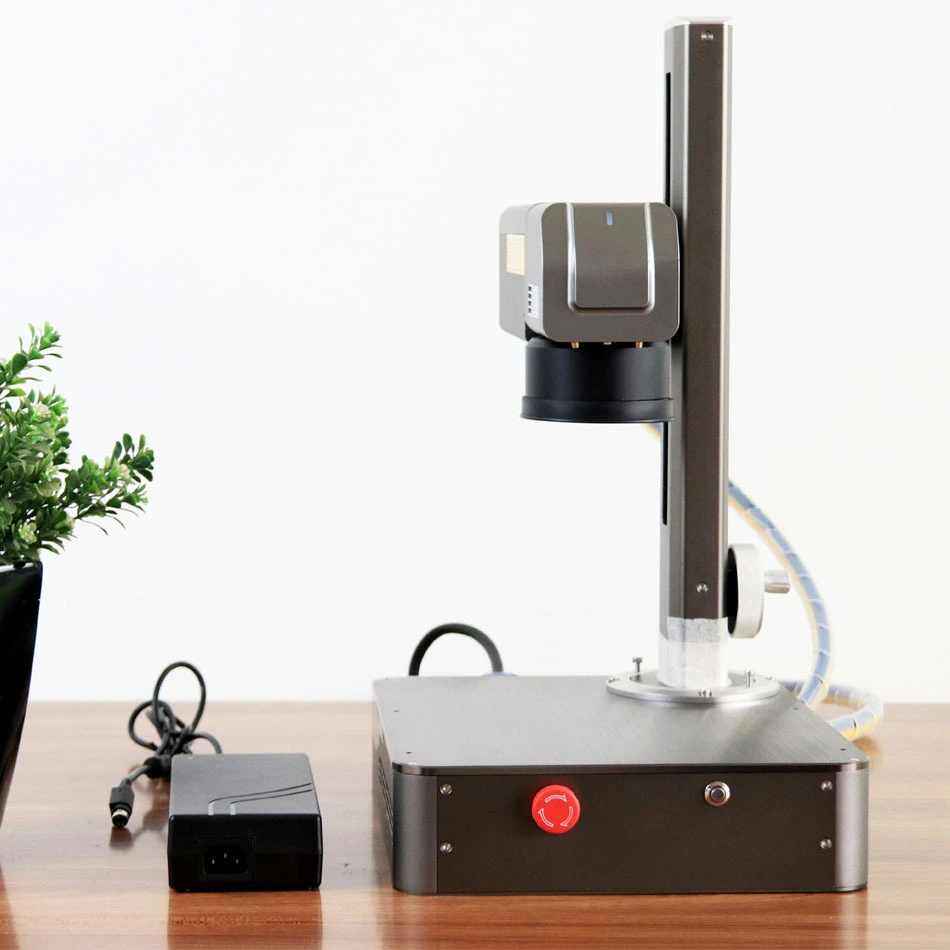

| -KELIER FG20HB3 Portable Laser Marker is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increases the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon. | ||
Description for KELIER Portable Laser Marker
Purchase an economical and effective optical fiber laser marking solution for your factory, which is fast, reliable and easy to use. You can find us through or contact us.
Portable 2020news 20W KELIER laser marking machine can be used in many fields, such as tool steel, cemented carbide, aluminium, anodized parts and so on. It can be used to mark customer parts and logos of robots and automobiles to meet specific customer requirements. KELIER's laser machine is clearly marked to meet the needs of more customers.
We provide installation videos and instructions, online teaching and training, so that you can learn how to use them anywhere very quickly.
Our customers are very satisfied with our services and products. If you are looking for a high quality and reasonable price optical fiber laser marking solution, then KELIER is the company.
MAX fiber laser is used to provide accurate marking for all types of metals, plastics and paint materials. The estimated duration is 100,000 marking hours. Without maintenance, you can rely on KELIER laser marking devices in the coming years and years.
1. Ultra-small fiber laser manufacturing machine, easy to move.
2. Wide scope of application: suitable for all kinds of metal and plastic, leather, ABS and other non-metallic materials.
3. Permanent marking: It will not fade, run or become less clear over time.
4. Long service time: The working time of the fiber laser model exceeds 100,000 hours. There was little maintenance during this period.
5. Simple operation: support almost all Windows-based software, such as coreldraw, autocad, photoshop.
6. High accuracy: 0.003mm multiple positioning accuracy. The minimum line width is 0.01 mm.
7. Non-contact process: It will not cause mechanical extrusion or mechanical stress to the material.

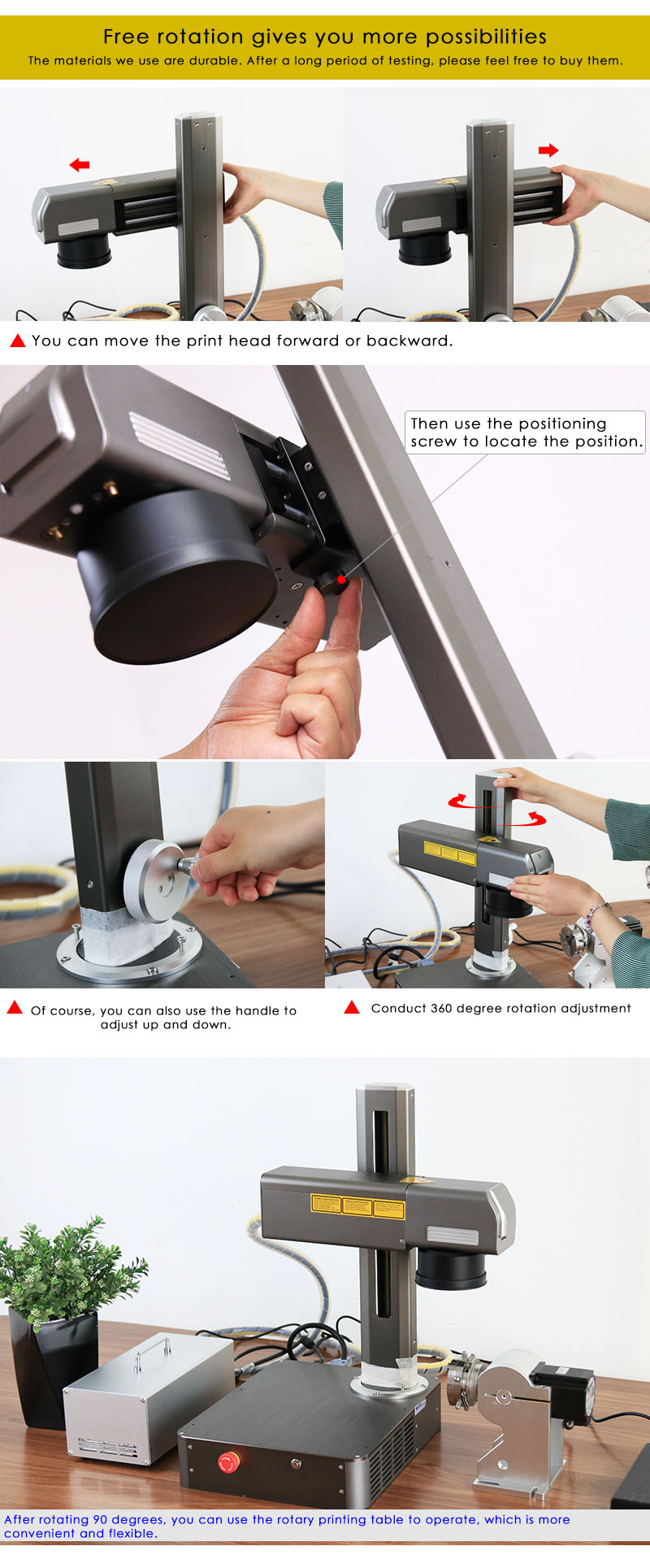

The laser printer head can be rotated, adjusted up and down, and adjusted back and forth.
Optical Fiber Transmission-Optical Beam Transmission with Integrated Optical Isolator

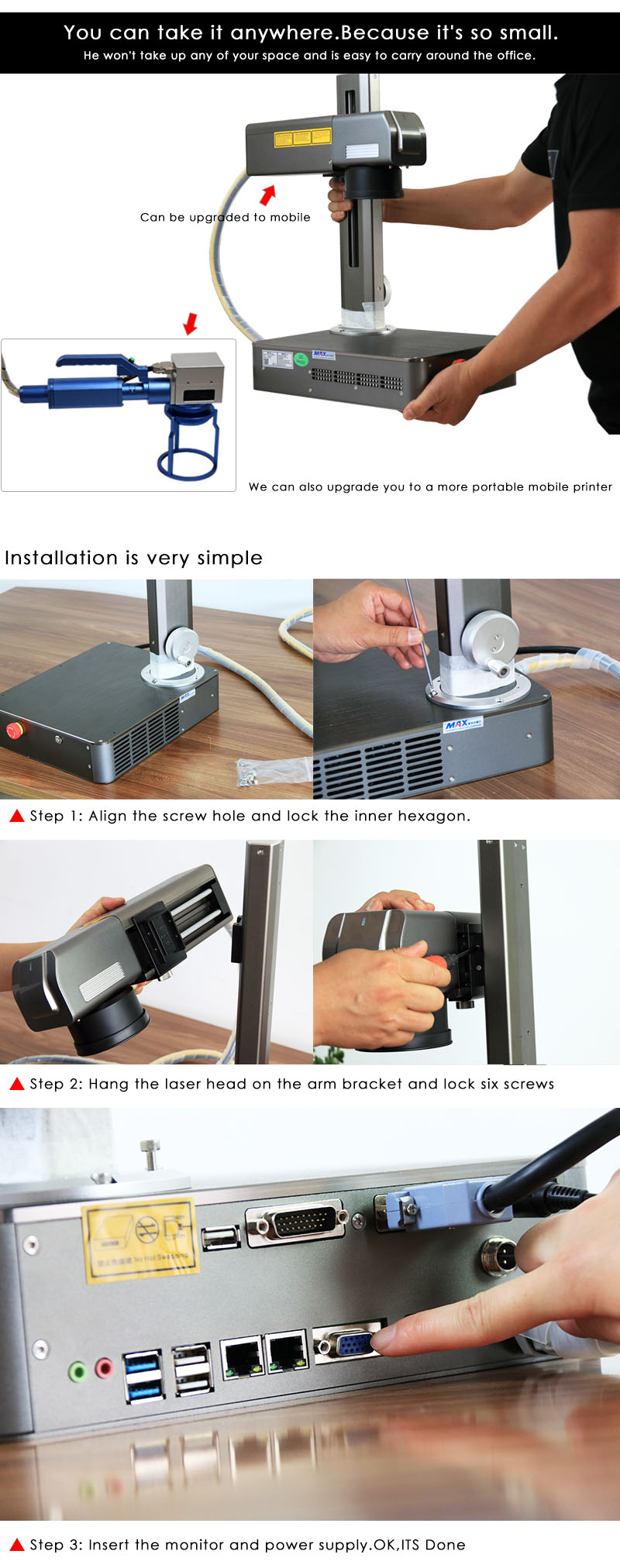

Very light, with handle, easy to carry.
Working with 110V-240V standard plug
Q-switched fiber laser with pulse energy up to 0.5 MJ can be engraved on hard materials.
Lasers absorb only 250 watts of power (less than computers) Wavelength 1060-1070 NM
Laser Document Flash Memory 2 meter optical cable
Genuine laser software, no alignment required
Emergency stop button Small exhaust fan
Advantages of this printer

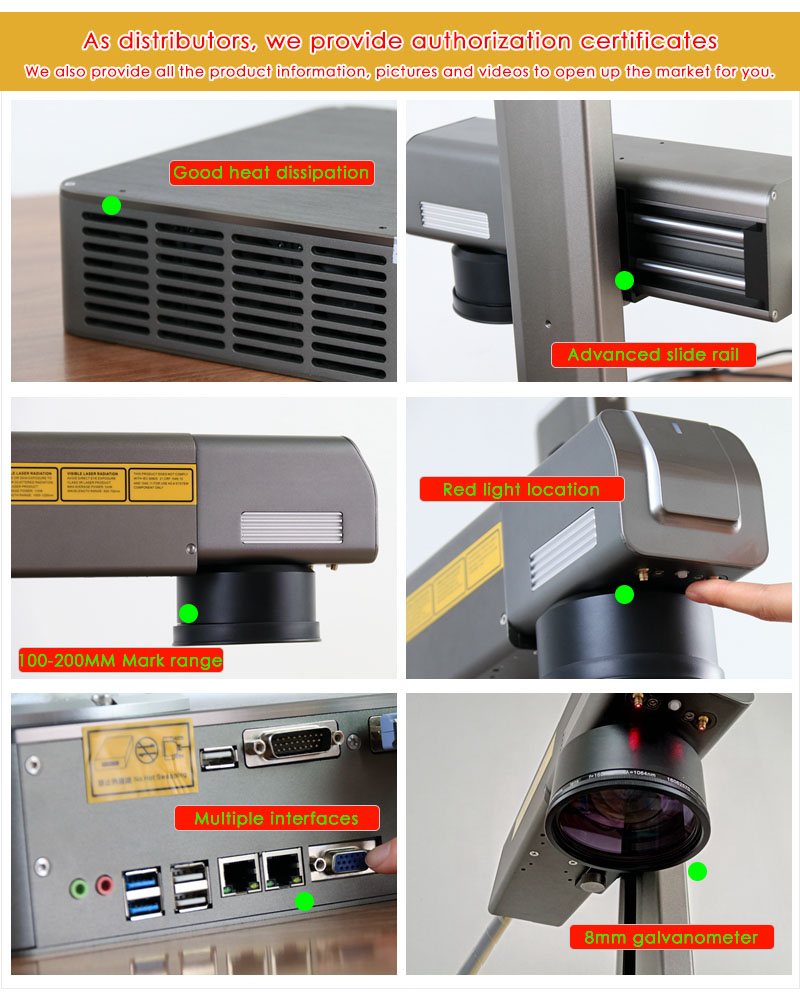

1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.

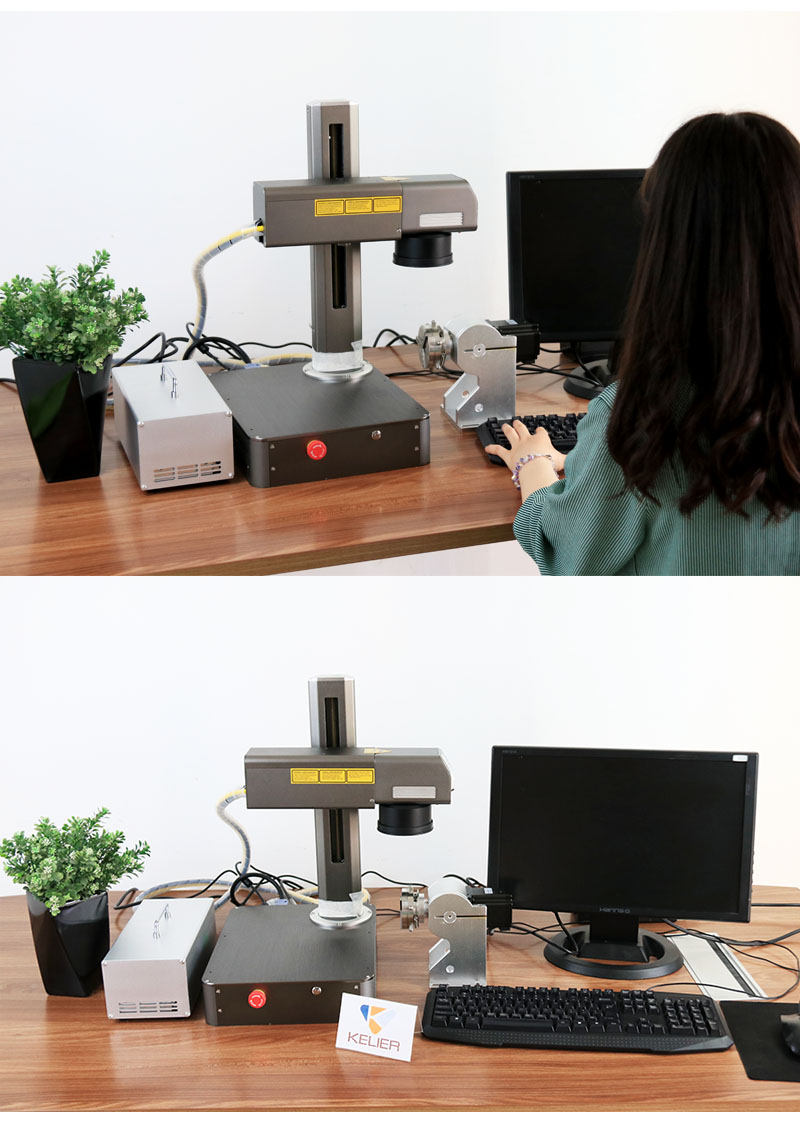

3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. KELIER HB3 Easy transport and can be displayed separately according to user’s site space situation.
Portable Fiber Laser Marking Machine laser marking machine 20w Advantages:
1) High Precision: Up to 0.0012mm, bring you the fantastic and satisfied marking effect.
2) Superior Laser Beam: The definition is 1 micron,10 times as that of traditional products.
3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4) High Speed: 8000mm / second, is 3 to 5 times above that of traditional products.
5) The fiber laser beam comes out from the MAX/Raycus fiber device directly,no need to adjust the laser optical path.
| Portable Laser Marker Product parameters | ||
| Optional Model | FG10HB3 | FG20HB3 |
| Laser power | 9.5±0.5 W | 19.5±0.5 W |
| Laser source | Max or Raycus | |
| Laser wavelength | 1064 nm | |
| Beam quality | M2 < 1.4 | |
| Modulation frequency | 20-50 khz | 30-60 khz |
| Marking range | 100/200 mm | |
| Carving speed | 0-8000 mm/s | |
| Focusing mode | Support for automation or manual | |
| Marking speed | 600-1000characters/Min | |
| Minimum line width | 0.02 mm | |
| Minimum characters | 0.15 mm | |
| Repeatability accuracy | ±0.002 mm | |
| Cooling method | Air Cooling | |
| Use environment | IP4 Clean, dustless or less dusty | |
| control software | MAXCAD | |
| Laser indicator | Double Red dot pointer | |
| working temperature | 10-35 ℃ | |
| Power consumption of the whole machine | ≤ 100 W | ≤ 160 W |
| Electricity demand | AC220V±10%,50 HZ | |
| Computer configuration parameters | ||
| CPU | Intel J1900 Processors | |
| Memory | ADATA 4G DDR3L 1600 | |
| BIOS | AMI EFI BIOS | |
| Super I/O | Winbond W83627DHG-P | |
| Ethernet | 1x LAN Intel I211(IO) | |
| GPU | Intel HD Graphics | |
| Display interface | 1x HDMI:1920×1200@60Hz | |
| Hard disk | 32G | |
| USB interface | 4xUSB | |
| serial port | 1x RS232,COM1,RS422,RS485 | |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux | |
| working temperature | 0℃~ 60℃ | |
| Storage temperature | -40℃~ 85℃ | |
| humidity | 5% ~ 95% Relative humidity, no condensation | |
Product Applications If you are a user of special products, such as jewelry processing, jewelry processing, you can choose our special rotary printing table, the quality is better and more accurate; at the same time, we also have a variety of automation equipment, you can consult us for more information.
Applicable Industries:
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industrie
Laser processing principle:
Laser marking is the use of a high-energy-density laser beam to locally illuminate the surface of the workpiece, causing the surface material to rapidly vaporize or change color, thereby exposing deep matter, or causing chemical-physical changes in the surface material to trace, or through light energy. Burn some of the material and show the pattern and text to be etched.
Use this machine to do the work for you.
2D UDI/UID Barcodes Sequential
Serial Numbers
Lot Codes and Date Codes
Medical/Automotive Coding
IC Chip Package Marking
Part Numbering
Surface Annealing/Etching
OCR Code Marking
Alphanumeric Marking Logos and Schematics
Ablation: (Anodized/Painted/Coated)
Complex graphics/pictures
Paint removal
Applied Materials:
1.All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2.Non-metallic:non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material

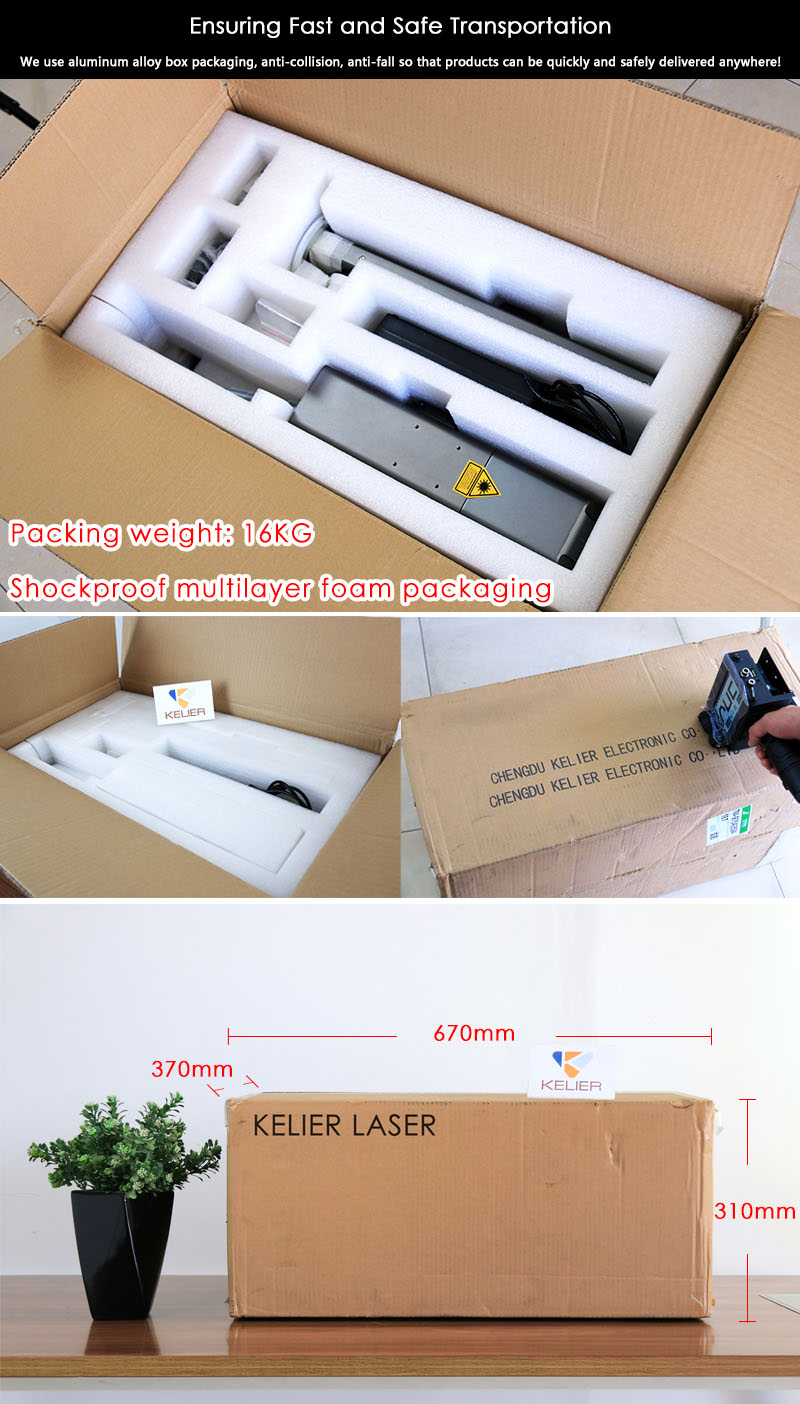

Outside: Cardboard box packing 67*37*31cm, 16 kg
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.
| Packing list | |||
| Title | Size(cm) | G.w(kg) | Remarks |
| Laser packaging | 67*37*31 | 16 | Cardboard box packing |
| Rotating platform packaging | 30*23*17 | 6.5 | Cardboard box packing |
| it is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator. | |||
| Combination packaging | Items | Pics | |
| FG20/10Hb3 Laser machine | 1 | Standard packing | |
| Data line | 1 | ||
| Charger | 1 | ||
| Foot switch | 1 | ||
| Screw | 12 | ||
| Shipping Method |
|
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
|
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
|
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non- urgent goods. |
|
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
|
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by wechat, whatsapp,QQ etc in time when problems happen, if necessary, overseas service is available. |
|
2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
|
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
|
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
1,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3,Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading
5: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
6: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
7: If some problems happen to this machine, what should I do?
We provide three years machine warranty. During the three-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
8: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
9: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
