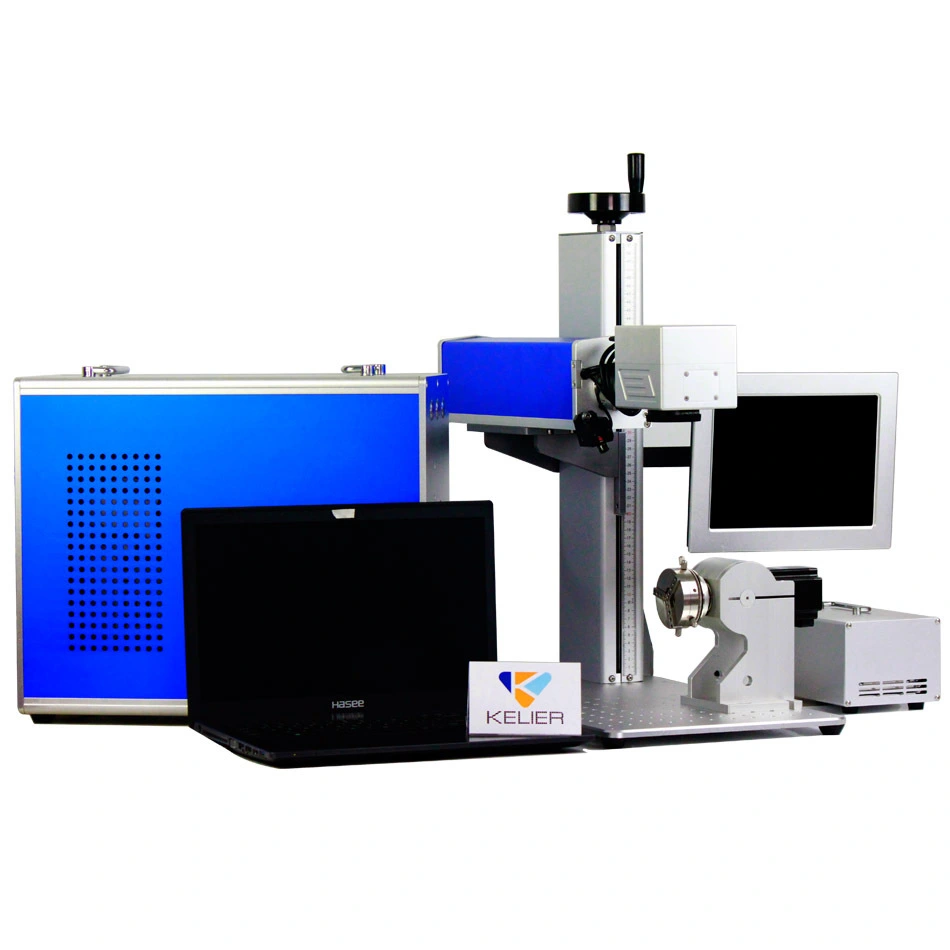

Kelier - laser printers for metal/plastic/tag/key chains/pen metal tag printing machine-3 Fiber laser marking machine
Chengdu Kelier Electronic Co., Ltd. always devotes unlimited efforts to the research and development of products. Continuous innovation ability is the fundamental guarantee of product quality. We strictly stick to the concept of scientific design, which contributes to the unique appearance and easy-to-use performance of our TIJ inkjet printers, CIJ inkjet printers, laser marking machines, industrial conveying equipment, Packaging equipment. Also, we never use inferior raw materials and ensure they are all tested by our QC inspectors, thereby, guaranteeing Laser Marking Machines quality. We believe that our product with so many advantages can bring benefits to all customers.
| Application: | Laser Marking | Working Accuracy: | 0.001mm |
| Graphic Format Supported: | AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPG | Laser Type: | Fiber Laser |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD borad |
| Place of Origin: | Sichuan, China | Brand Name: | Kelier |
| Laser Source Brand: | RAYCUS | Control System Brand: | EZCAD |
| Marking Head Brand: | Sino Galvo | Weight (KG): | 30 KG |
| Key Selling Points: | Low Noise Level | Warranty: | 3 years, 3 Years /laser Metal Printer |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, metal tag printing machine | Marking Area: | 250mm*250mm |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Other |
| Marking Speed: | 9000mm/s | Marking Depth: | 0.01-1mm |
| Standard marking area: | 50mm*50mm--- 300mm*300mm | Laser generator Life: | 100,000hours |
| Frequency of pluse: | 20KHZ~80KHZ | Repeated accuracy: | 0.001mm |
| Laser source: | Raycus/MAX | Power supply: | AC220V/50Hz;110V/60Hz |
| Marking material: | Ss Aluminum Metal Plastic | Certification: | ce |
| After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support | After Warranty Service: | Video technical support, Online support |
| Local Service Location: | Egypt | Showroom Location: | Italy |
| Marketing Type: | New Product 2019 |
| Brand: KELIER | Model: FG20/30/50T | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 20W/30W/50W |
| DCarving speed:9000mm/s | Voltage: 110V-240V | Packing weigth:60kg |
| Product Name:laser printers for metal/plastic/tag/key chains/pen metal tag printing machine | ||
| -The laser ring engraving machine is a new generation laser marking system developed with the world's most advanced laser . It uses fiber laser source and the high-speed scanning galvanometer system to realize the marking function. Jewelry laser marking electromechanical light conversion efficiency is extremely high with high reliability. Cooled by air cooling. The laser ring engraving machine`s overall size is small. |
||

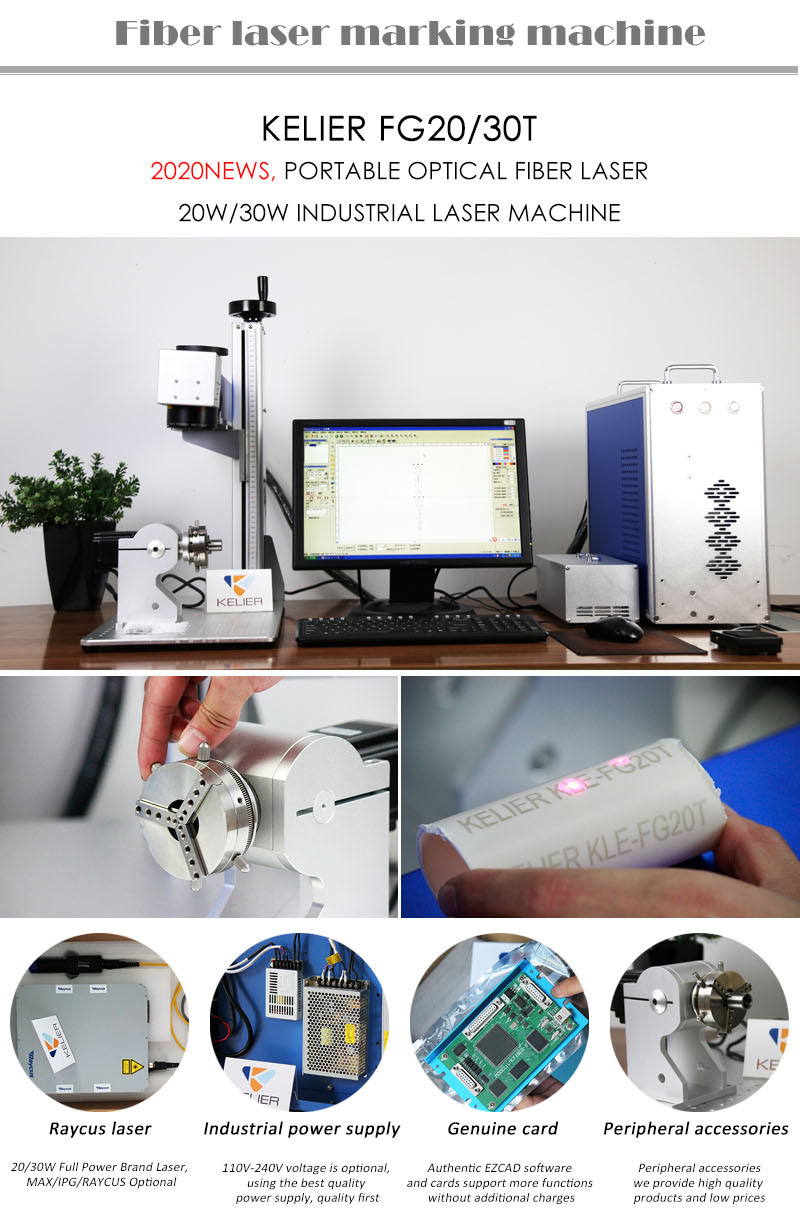

Description for KELIER Raycus/MAX/IPG Desktop 20W 30W 50W laser marking machine
When it comes to rings and jewelry, there is no doubt that they are an indisputable part of our daily lives. They are becoming more and more popular not only because they make us feel stylish and beautiful, but also because it is a promise or symbol of love for couples. Different people have different preferences for rings and jewelry. Couples like to mark lover's names or special dates on rings and jewelry.
People pursuing fashion may like to mark special letters or patterns. As a result, laser marking machines are increasingly used for the marking of rings and jewelry. Laser ring engraving machine is not only practical but also meets the needs of the times and people.
Advantages for Raycus/MAX/IPG Desktop 20W 30W 50W laser marking machine
1. Laser ring engraving machine can work continuously for 24 hours without consumables. More than 10,000 hours service time can meet long-term and stable work requirements. The laser ring engraving machine `s laser beam is stable.

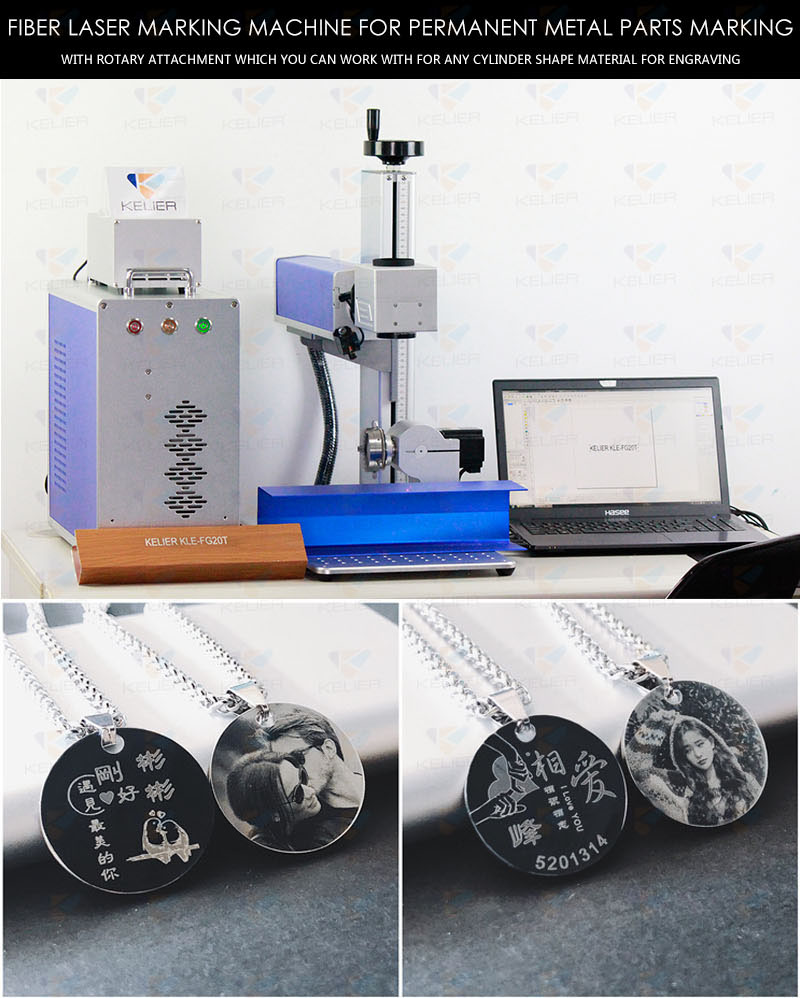

2. Gold laser marking machine equipped with special rotary system to support mark on ring. You can finish marking inside or outside to keep your perpetual signs.
3. Laser ring engraving machine powerful software compatible with Coreldraw, AutoCAD, Photoshop and other software files which can support PLT, PCX, DXF, BMP, etc., can use SHX, TTF font directly;

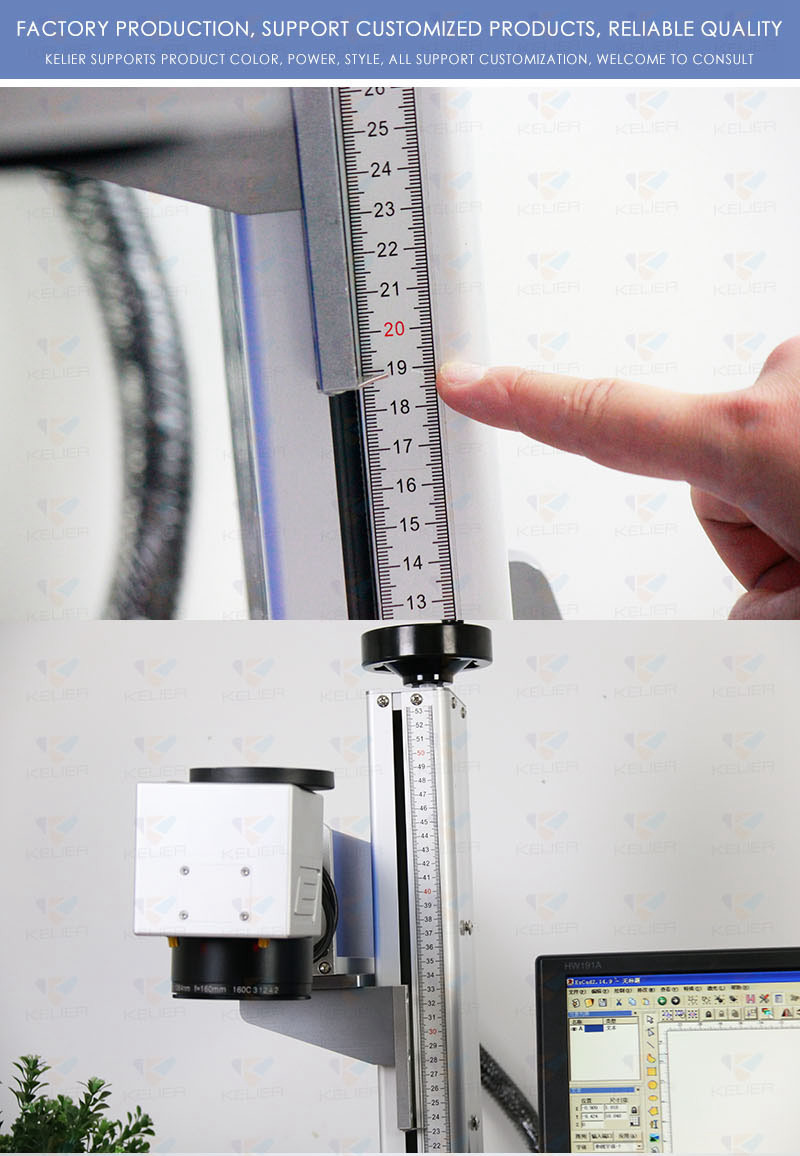

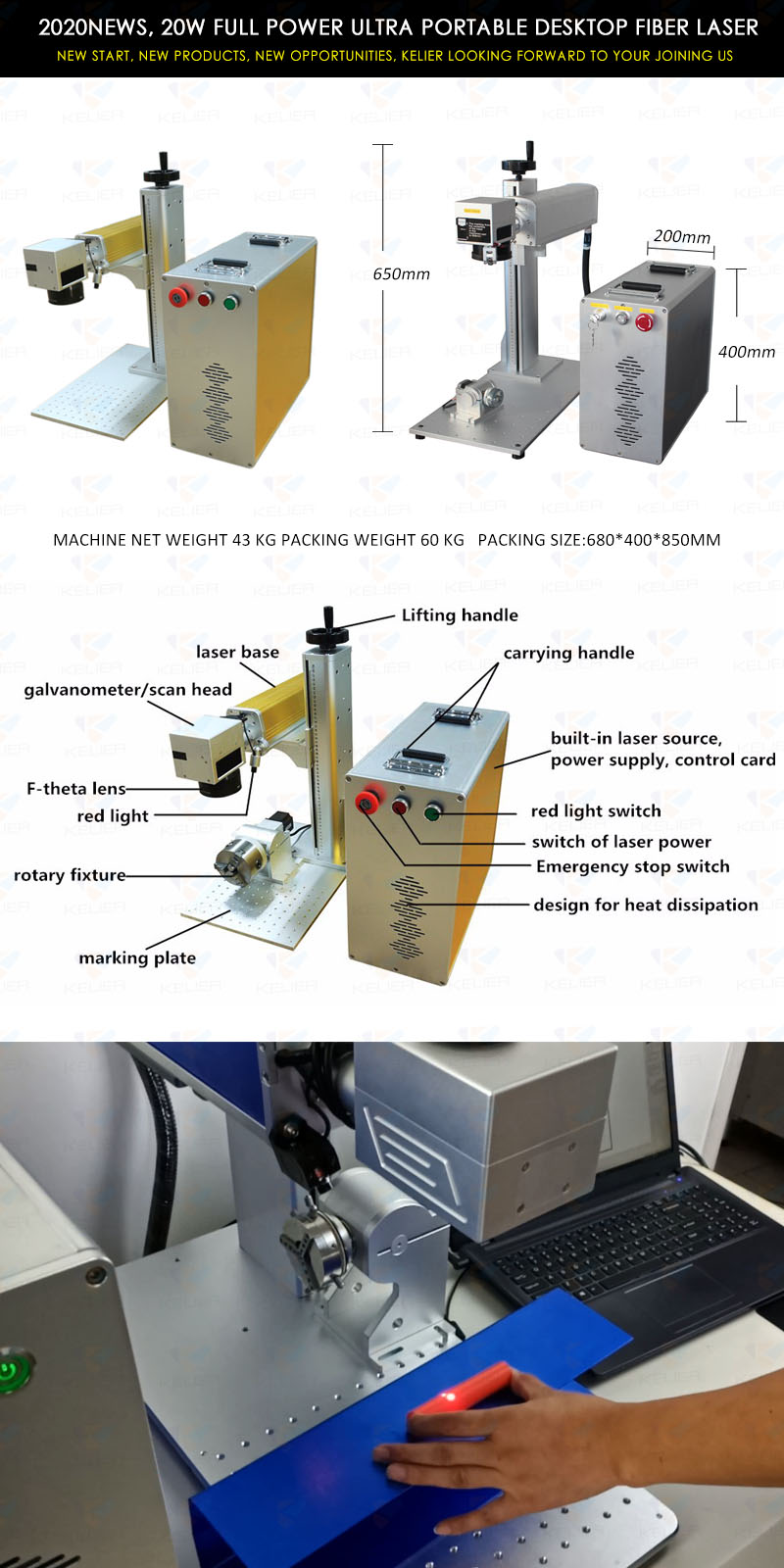

4. The gold laser marking machine structure has been greatly improved: the optical system adopts a fully sealed structure with a red light preview function, a more beautiful appearance and a more convenient operation.
5. The photoelectric conversion efficiency is high, the beam quality is good, the lines are fine, the spot is small, and the laser has long service life, the laser ring engraving is specially suitable for jewery marking.
6. The laser ring engraving is equipped with the latest precision constant temperature chiller, low operating noise, high temperature adjustment accuracy, and provides a reliable guarantee for the continuous operation of the machine for a long time.
7. Jewellery laser marking machine high-speed scanning galvanometer, suitable for industrial mass production. No mechanical stress, small thermal stress, no damage to the processed material, no deformation. To maintain your best jewery effect.
| KELIER Laser Marker Product parameters | ||
| Optional Model | FG20T/FG30TFG50T | |
| Laser power | 20W30W50W(optional) | |
| Laser source | China Max or Raycus German IPG fiber laser | |
| Laser wavelength | 1064 nm | |
| Beam quality | M2 < 1.4 | |
| Modulation frequency | 20kHz~80kHz | |
| Marking range | 30mm x 30mm - 300mm x 300mm can be optional | |
| Carving speed | 0-9000 mm/s | |
| Carving depth | 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material | |
| Focusing mode | Support for automation or manual | |
| Marking speed | 600-1000characters/Min | |
| Minimum line width | 0.002 mm | |
| Minimum characters | 0.15 mm | |
| Repeatability accuracy | ±0.002 mm | |
| Cooling method | Air Cooling | |
| Use environment | IP4 Clean, dustless or less dusty | |
| Laser type | Pulse or continuous | |

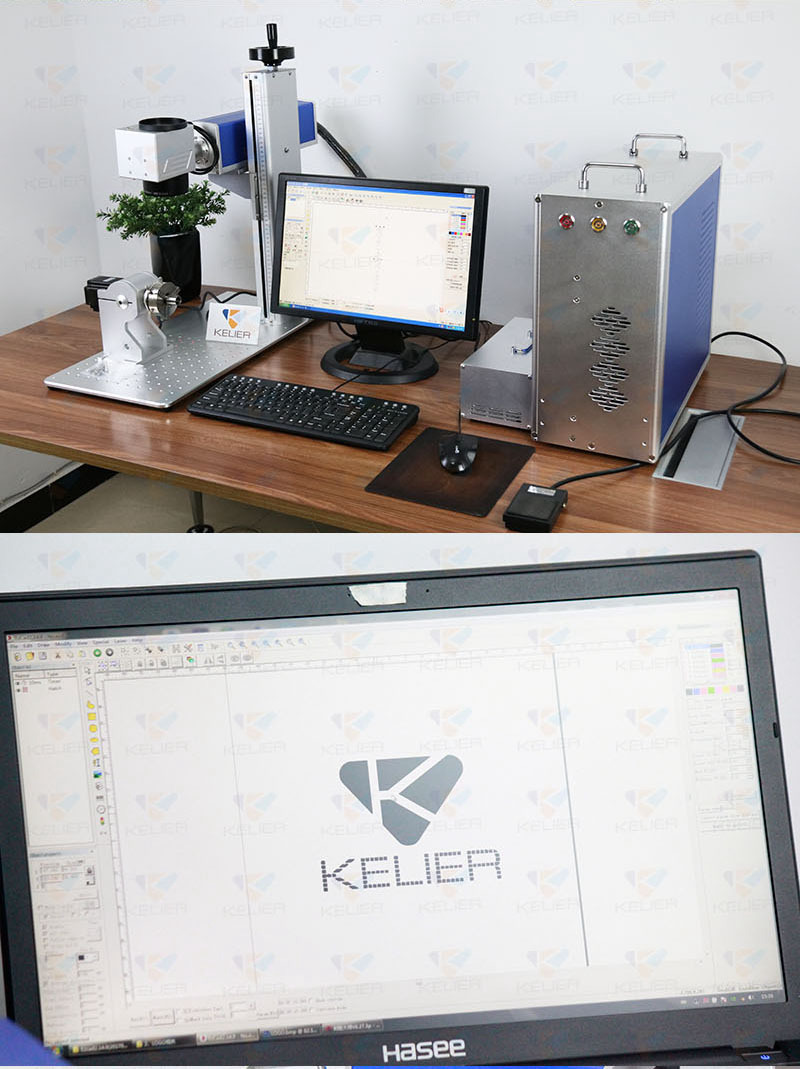

| control software | Authorization EZCAD marking control software | |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. | |
| Laser indicator | Double Red dot pointer | |
| Operating system | Win98/Win2000/WinXP/win7 (64,32bit)win8/win10 | |
| working temperature | 0-35 ℃,90% or humidity | |
| Power consumption of the whole machine | ≤ 100 W | ≤ 160 W |
| Electricity demand | AC220V±10%,50 HZ | |
| This product does not include computers, if you need to configure computers, please contact us, we will provide you with industrial computer mainframe, price concessions, the following is the configuration list of engineering-specific computers. | ||
| Computer configuration parameters | ||
| CPU | Intel J1900 Processors/N2810 | |
| Memory | ADATA 4G/8G DDR3L 1600 | |
| BIOS | AMI EFI BIOS | |
| Super I/O | Winbond W83627DHG-P | |
| Ethernet | 1x LAN Intel I211(IO) | |
| GPU | Intel HD Graphics | |
| Display interface | 1x HDMI:1920×1200@60Hz | |
| Hard disk | 32G | |
| USB interface | 4xUSB | |
| serial port | 1x RS232,COM1,RS422,RS485 | |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux | |
| working temperature | 0℃~ 60℃ | |
| Storage temperature | -40℃~ 85℃ | |
| humidity | 5% ~ 95% Relative humidity, no condensation | |
Application
1. This jewellery laser marking machine can mark metal and a variety of non-metallic, the laser ring engraving machine is suitable for some materials with finer requirements, higher precision and deep processing.

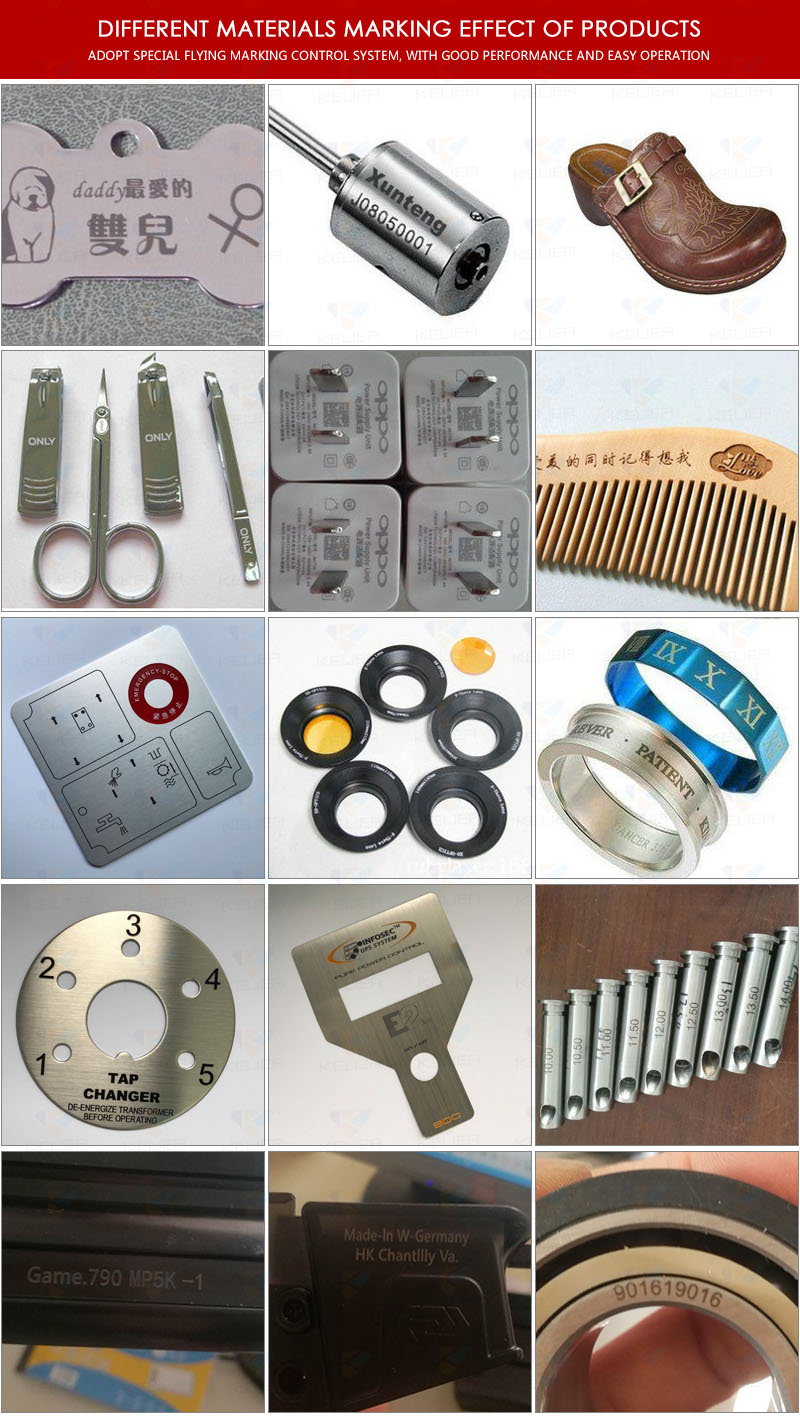

2. The laser ring engraving machine is widely used in metal products, tool accessories, precision instruments, eyeglasses and watches, jewelry, auto parts, plastic buttons, building materials, food, medicines, electronic components, integrated circuits (IC), electrical appliances, mobile communications, PVC Pipe, medical equipment, sanitary ware and other industries.
Great Performance: Identical marking quality with high speed.(up to 0.002mm accuracy and 9000mm/s speed). Adopt advanced fiber generator, the life time could up to 100,000 hours.Optical fiber laser
environmental friendly and energy-saving 50MM Rotary Attachment: Professional for round material marking, ideal for marking rings, pens,etc. Laser Engraving Machine Application: Fits for all metal and varies non-metal materials
Guarantee: 3-year warranty for whole machine; lifetime online technical support. If you have any question just contact us via e-mail, we will provide you with the best after-sale service
Outside: wooden box packing 85*68*40cm, 60 kg
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.
| Packing list | ||
| It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator. | ||
| Packaging size/weight(mm):850(L)*680(W)*400(D) / 60KG | ||
| Part name | Brand origin | Quantity |
| Fiber laser | Raycus/Max/Ipg | 1 sets |
| High speed scanning galvanometer | Beijing Sino Galvo | 1 sets |
| Focusing lens | Singapore wavelength | 1 sets |
| Marking software | EZCAD | 1 sets |
| Indicator locator | Xi'an sapling | 1 sets |
| Power switch | Taiwan Meanwell | 1 sets |
| Laser frame | Self-control | 1 sets |
| Print foot | Customized | 1 sets |
| Equipment switch | Shanghai Jia Jia | 1 sets |
| Control computer(Order required ) | desktop computer | 1 sets |
| Instructions |
Video, text and pictures |
1 sets |
| Shipping Method |
|
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
|
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
|
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non- urgent goods. |
|
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
|
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by wechat, whatsapp,QQ etc in time when problems happen, if necessary, overseas service is available. |
|

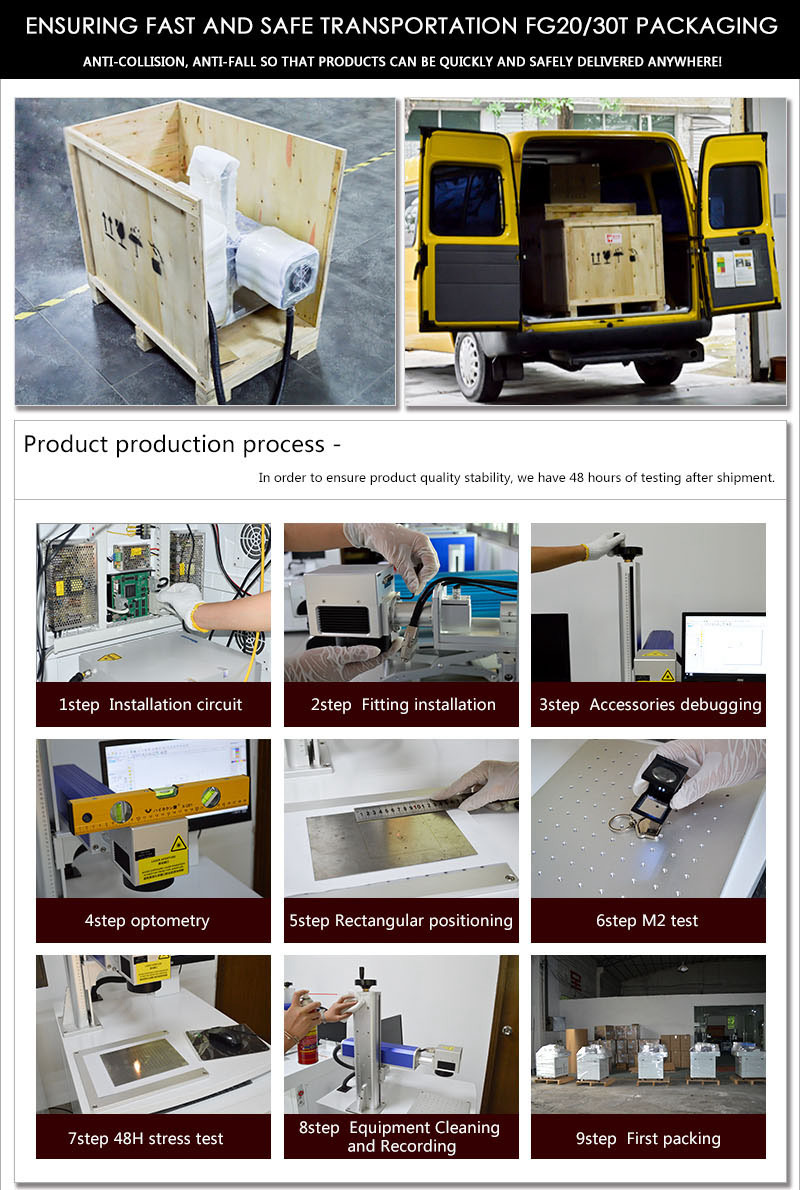

2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
|
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
|
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .
Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?

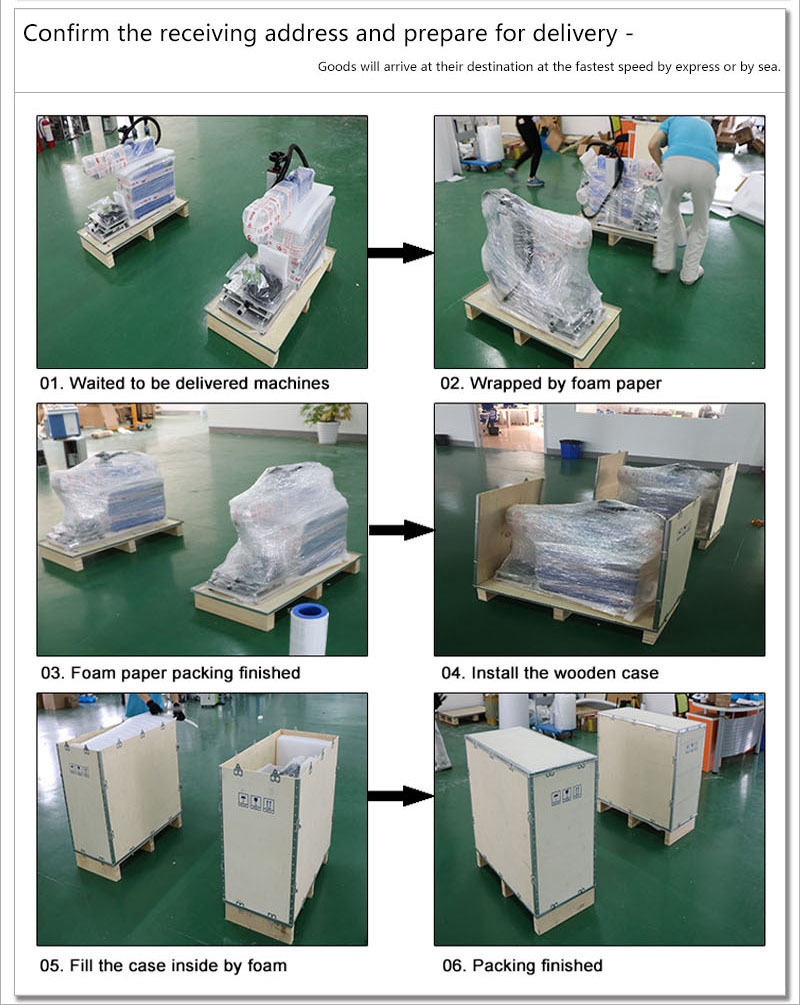

Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.
Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.
Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
