Kelier - carton coder coding machine manual date coder machine mrp machine CO2 laser marking machine
Always putting an emphasis on the improvement of the research and development, Chengdu Kelier Electronic Co., Ltd. has finally developed carton coder coding machine manual date coder machine mrp machine. The product with improved properties and features is expected to lead the trend of the industry. In today's era,carton coder coding machine manual date coder machine mrp machine has proved its value in the field(s) of Laser Marking Machines. Chengdu Kelier Electronic Co., Ltd. have always advocated the customer-centric business concept, aiming to provide customers with specialized, standardized, and diversified services. We focus on technology development and hope to make some innovations backed by strong technical strength.
| Application: | Laser Marking | Working Accuracy: | 0.001mm |
| Graphic Format Supported: | AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPG | Laser Type: | CO2 |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD borad |
| Place of Origin: | Sichuan, China | Brand Name: | KELIER |
| Laser Source Brand: | DAVI/CRD | Control System Brand: | NOAH |
| Marking Head Brand: | SINO GALVO | Weight (KG): | 30 KG |
| Key Selling Points: | Automatic | Warranty: | 3 years |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, CO2 Laser Marker Machine | Marking Area: | 250mm*250mm |
| Machinery Test Report: | Provided | Video outgoing-inspection: | Provided |
| Warranty of core components: | 1 Year | Core Components: | Other |
| Marking Speed: | 0-7000mm/s | Operation Temperature: | 10~35°C |
| Marking area: | 110*110mm/175*175mm/200*200mm/300*300mm | Laser wavelength: | 10.64um |
| Laser Power: | 20W/30W/50W | Repeated accuracy: | ±0.001mm |
| Laser source: | DAVI/CRD | Software: | EZCAD Software |
| Marking material: | Partial Plastic | Name: | CO2 Laser Marker Machine |
| Certification: | ce | After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| After Warranty Service: | Video technical support, Online support | Local Service Location: | Italy |
| Showroom Location: | Peru | Marketing Type: | New Product 2019 |
| Brand: KELIER | Model: FC20/30/50F | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 20W/30W/50W |
| DCarving speed:0-9000mm/s | Voltage: 110V-240V | Packing weigth:150kg |
| Name:carton coder coding machine manual date coder machine mrp machine | ||
| -The machine adopts the most advanced closed continuous CO2 laser device made in CHINA and the life of laser tube is over 20,000 hours, which is especially suitable for laser cutting, carving and marking. The high speed galvanometer scanning system imported from China has the advantages of high marking accuracy and fast processing speed. | ||

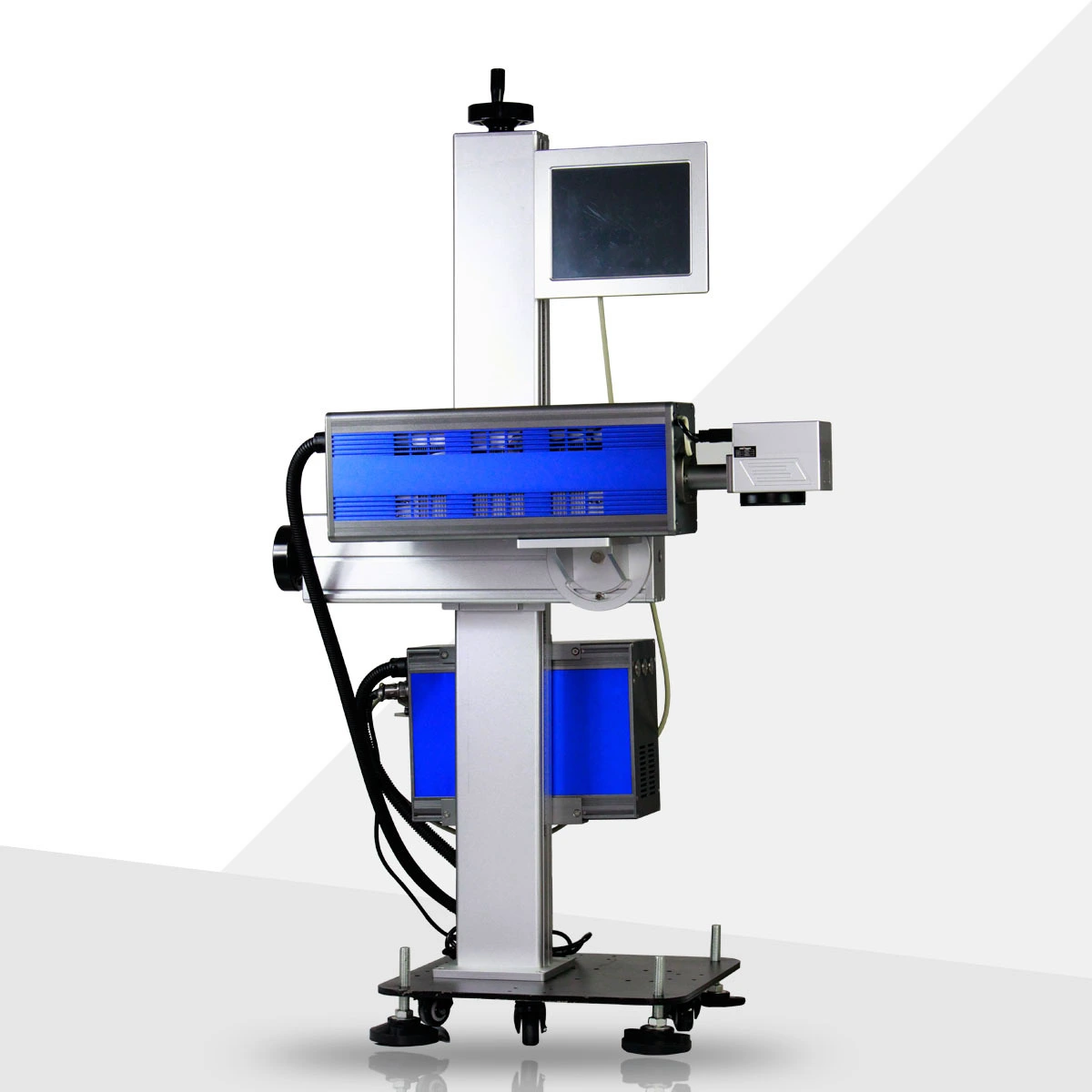

Features of KELIER CO2 on-line laser
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. FC30F Online fiber laser marking machine is a standard type in the whole fiber laser marking machine series. Its classical design stands popular since laser marking machine’s birth.
Co2 Galvo Laser Marking Machine for Leather/Plastic/Wood/Acrylic/Carton
Thoery of KELIER CO2 laser
CO2 laser marking machine is gas laser device whose band wavelength of infrared light is 10.6 µm. It uses CO2 filled in the discharge tube as medium that generates laser. When electrode is added high voltage, the discharge tube generates glow and then discharge, so that gas molecules release laser and the laser energy can form laser beam after amplifying. Changing the path of laser beam by using computer to control galvanometer can realize automatically marking.
Basic operation
The marking software is operated under Windows so it is easy to learn and convenient to operate. It allows files of AUTOCAD, AI, CORELDRW and supports PLT, PCX, DXF, BMP files and SHX, TTF font. It supports automatic coding, serial numbers, batch numbers, dates, bar codes and two- dimension code marking and the software has a function of back marking. It also supports marking bar codes, patterns, various fonts and automatically number jumping and coding, which is convenient to mark serial numbers, batch numbers and dates of products.
| KELIER Industrial Laser Marker parameters | |
| Optional Model | FC20F/FC30F/FC50F |
| Laser power | 20W30W50W(optional) |
| Laser source | China DAVI or CRD CO2 laser-Support customization |
| Laser wavelength | 1064 nm |
| Beam quality | M2 < 1.4 |
| Modulation frequency | 20kHz~100kHz |
| Marking range | 30mm x 30mm - 300mm x 300mm can be optional |
| Carving speed | ≤7000 mm/s(Adjustable) |
| Carving depth | 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material |
| Focusing mode | Support for automation or manual |
| Marking speed | 1500-2000characters/Min |
| Minimum line width | 0.001 mm |
| Minimum characters | 0.15 mm |
| Repeatability accuracy | ±0.002 mm |
| Cooling method | Air Cooling |
| Use environment | IP4 Clean, dustless or less dusty |
| Laser type | Pulse or continuous |
| control software | NOAH marking control software |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
| Laser indicator | Double Red dot pointer |
| Operating system | Win98/Win2000/WinXP/win7 (64,32bit)win8/win10 |
| working temperature | 0-35 ℃,90% or humidity |
| Power consumption | ≤ 550 W |
| Electricity demand | AC110V-240V±10%,50 HZ/60HZ |
| This product contains computers. The following is the configuration list of the dedicated computers. | |
| Computer configuration parameters | |
| CPU | Intel G630X2/I3 540 |
| Memory | ADATA 4G/8G DDR3L 1600 |
| BIOS | AMI EFI BIOS |
| Super I/O | Winbond W83627DHG-P / HG41/HG55 |
| Ethernet | 1x LAN Intel I211(IO) |
| GPU | Intel HD Graphics |
| Display interface | 1x HDMI:1920×1200@60Hz |
| Hard disk | 60G/120G/500G |
| USB interface | 4xUSB |
| serial port | 1x RS232,COM1,RS422,RS485 |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux |
| working temperature | 0℃~ 60℃ |
| Storage temperature | -40℃~ 85℃ |
| humidity | 5% ~ 95% Relative humidity, no condensation |
Applicable materials and industry
Markings on the non- metal materials and surface of their products, such as plexiglass, ceramic, plastics, synthetic material, timber, rubber, leather, paper products ,Electronics industry: laser markings on capacitance, inductance, printed-circuit board, integrated circuit, instrument and control panel Daily supplies and clothing industry: button, cosmetics package, food package, tobacco and alcohol, stationery, artwork PVC, ABS material, acrylic, epoxy resin EP, leather, unsaturated polyester etc.
The equipment is widely used in non-metal materials such as paper, leather, wood product, plastic, Perspex, cloth, acrylic, wood bamboo, rubber, crystal, diamond stone, jade, ceramics, glass, artificial stone and etc
Applicable Materials:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
| Packing list | ||
|
It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator.
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
|
||
| Packaging size/weight(mm):900(L)*800(W)*1060(D) / 150KG | ||
| Part name | Brand origin | Quantity |
| Fiber laser | China DAVI or CRD | 1 sets |
| High speed scanning galvanometer | Beijing SINO GALVO | 1 sets |
| Focusing lens | Singapore wavelength | 1 sets |
| Marking software | EZCAD/NOAH | 1 sets |
| Indicator locator | Xi'an sapling | 1 sets |
| Power switch | Taiwan Meanwell | 1 sets |
| Laser frame | Self-control | 1 sets |
| Print foot | Customized | 1 sets |
| Equipment switch | Shanghai Jia Jia | 1 sets |
| Control computer(Include) | desktop computer | 1 sets |
| Rotary Printing Table (Order) | Dongsheng Precise | 1 sets |
| Instructions |
Video, text and pictures |
1 sets |
| Shipping Method |
|
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
|
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
|
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods. |
|
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
|
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available. |
|
2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
|
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
|
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
Q1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .
Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?
Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.
Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.
Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
