Professional inkjet marking supplier.

Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 1
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 2
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 3
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 4
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 5
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 6
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 7
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 1
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 2
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 3
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 4
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 5
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 6
Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier 7

Fiber laser marking machine co2 tube source FC2030G-3 laser marking machine-kelier

Our employees who engage in the technical analysis have successfully upgraded technologies mainly to manufacture Fiber laser marking machine co2 tube source FC2030G-3 in a more efficient way.It has applications in a wide range of fields, such as Laser Marking Machines.

    oops...!

    no product data.

    Go to homepage

    After a long period of exploration,Chengdu Kelier Electronic Co., Ltd. has launched Fiber laser marking machine co2 tube source FC2030G-3. We pride ourselves on our personalized and efficient service. Chengdu Kelier Electronic Co., Ltd. will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.

    Application:Laser MarkingWorking Accuracy:0.001mm
    Graphic Format Supported:AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPGLaser Type:Fiber Laser
    Condition:NewCNC or Not:Yes
    Cooling Mode:Air CoolingControl Software:EZCAD borad
    Place of Origin:Sichuan, ChinaBrand Name:Kelier
    Laser Source Brand:DAVI/CRDControl System Brand:EZCAD/NOAH
    Marking Head Brand:SINO GALVOWeight (KG):15 KG
    Key Selling Points:Easy to OperateWarranty:1 years, 1 Years /laser Metal Printer
    Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Fiber laser marking machine co2 tube sourceMarking Area:250mm*250mm
    Machinery Test Report:ProvidedVideo outgoing-inspection:Provided
    Warranty of core components:1 YearCore Components:Other
    Marking Speed:0-9000mm/sMarking Depth:0.01-1mm
    Standard marking area:50mm*50mm--- 300mm*300mmLaser generator Life:100,000hours
    Frequency of pluse:20KHZ~80KHZRepeated accuracy:0.001mm
    Laser source:DAVI/CRDPower supply:AC220V/50Hz;110V/60Hz
    Laser wavelength:1060nmCertification:ce
    After-sales Service Provided:Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical supportAfter Warranty Service:Video technical support, Online support
    Local Service Location:Sri LankaShowroom Location:Romania
    Marketing Type:New Product 2019




    Brand: KELIERModel: FC20/30/50GOrigin: Mainland China
    Provinces: SichuanCity: ChengduPower: 20W/30W/50W
    DCarving speed:0-9000mm/sVoltage: 110V-240VWeight: packing weigth:120kg
    Name:20W 30W CO2 Fiber laser marking machine co2 tube source
    -KELIER’s laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics, glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D, DMC and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving:



    Product Description

    Fiber laser marking machine co2 tube source FC2030G-3

    Fiber laser marking machine co2 tube source FC2030G-3



    Marking and Engraving FCG-Series is suitable for laser marking and surface-engraving.



    FCG CO2 laser machines apply precise, permanent and abrasion-proof marks on nearly every material by Annealing, Color Change/Frothing, Color/Material Removal, Carbonizing or Surface-engraving.



    KELIER offers the complete range of solutions for high-precision laser engraving and efficient laser marking: Stand-alone systems like M-Series, fiber, uv and co2-lasers for integration into production lines, vision systems and accessories. We will be pleased to advise you on the issue of your requirements and to find the right system for your application!



    Fiber laser marking machine co2 tube source FC2030G-3Fiber laser marking machine co2 tube source FC2030G-3







    Fully enclosed maintenance-free laser optical system, no adjustment, ready-to-use.

    The imported RF metal laser has good optical quality and long service life. High precision, high speed marking performance, marking clear, firm and permanent.



    According to the different use requirements of customers, choose the most reasonable configuration, with a high cost performance ratio.



    Using WINDOWS interface, it can be compatible with CORELDRAW, AUTOCAD, PHOTOSHOP and other software output files. Supporting PLT, AI, DXF, BMP and other files, using SHX directly, TTF font library supports automatic coding, serial number, batch number, date, bar code and two-dimensional code marking.



    CO2 laser marking machine adopts CO2 RF laser and high-speed scanning galvanometer system imported from the United States. It is equipped with high quality optical devices, high stability laser power supply and automatic control system.

    Whole machine system Marking accuracy is high, speed is fast, performance is extremely stable, can work continuously for a long time can be directly applied to a large number of on-line processing line.



    Fiber laser marking machine co2 tube source FC2030G-3Fiber laser marking machine co2 tube source FC2030G-3Fiber laser marking machine co2 tube source FC2030G-3



    Technical Paramet

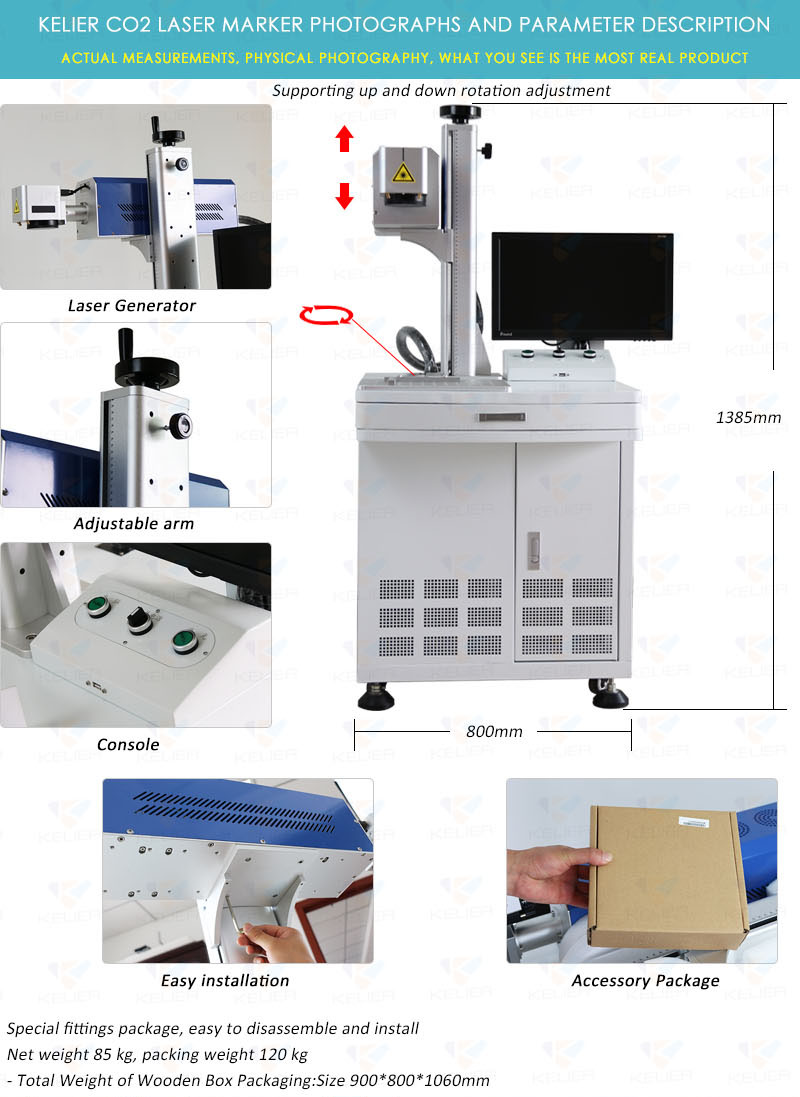

    KELIER Industrial Laser Marker parameters
     Optional Model FC20G/FC30G/FC50G
     Laser power 20W30W50W(optional)
     Laser source China DAVI or CRD CO2 laser-Support customization
     Laser wavelength 1064 nm
     Beam quality M2 < 1.4
     Modulation frequency 20kHz~100kHz
     Marking range 30mm x 30mm - 300mm x 300mm can be optional
     Carving speed ≤7000 mm/s(Adjustable)
     Carving depth 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material
     Focusing mode Support for automation or manual
     Marking speed 1500-2000characters/Min
     Minimum line width 0.001 mm
     Minimum characters 0.15 mm
     Repeatability accuracy ±0.002 mm
     Cooling method Air Cooling
     Use environment IP4 Clean, dustless or less dusty
     Laser type Pulse or continuous
     control software NOAH marking control software
     Graphic format supported bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.

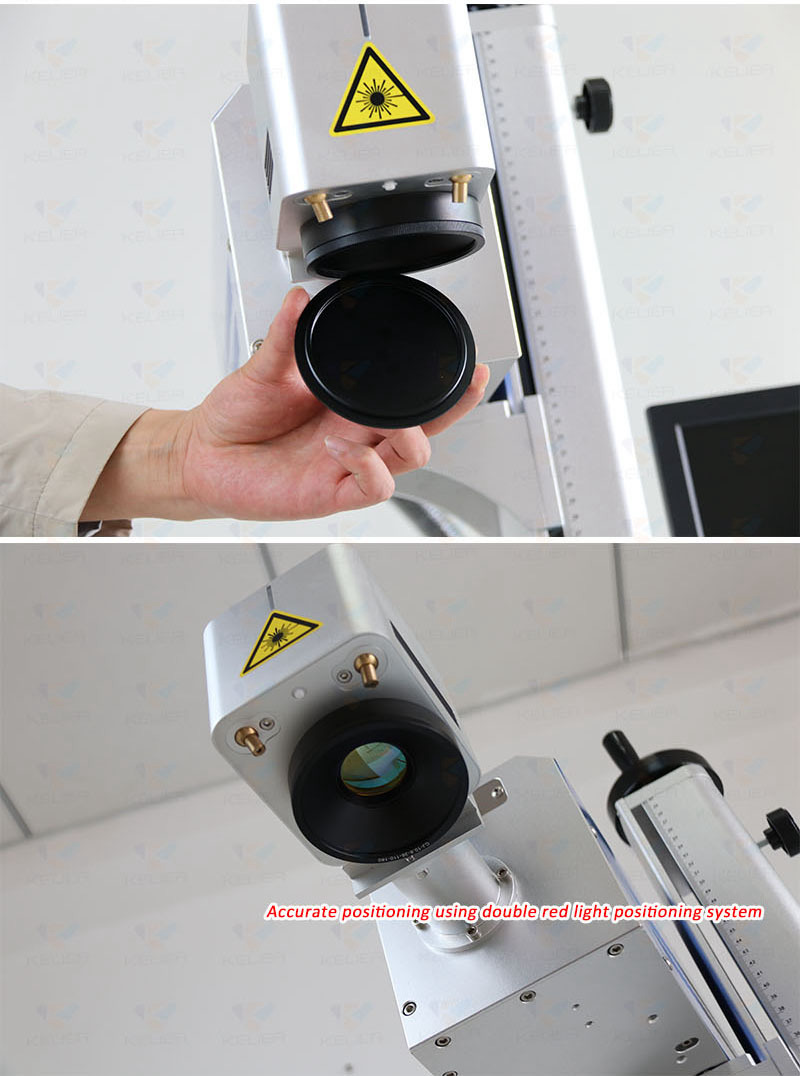

     Laser indicator  Double Red dot pointer
     Operating system Win98/Win2000/WinXP/win7 (64,32bit)win8/win10
     working temperature 0-35 ℃,90% or humidity
     Power consumption  ≤ 550 W
     Electricity demand AC110V-240V±10%,50 HZ/60HZ
    This product contains computers. The following is the configuration list of the dedicated computers.
    Computer configuration parameters
     CPU Intel G630X2/I3 540
     Memory ADATA 4G/8G DDR3L 1600
     BIOS AMI EFI BIOS
     Super I/O Winbond W83627DHG-P / HG41/HG55
     Ethernet 1x LAN Intel I211(IO)
     GPU Intel HD Graphics
     Display interface 1x HDMI:1920×1200@60Hz
     Hard disk 60G/120G/500G
     USB interface 4xUSB
     serial port 1x RS232,COM1,RS422,RS485
     operating system Windows 7 32bit;Can support/Windows 8/Windows 10/Linux
     working temperature 0℃~ 60℃
     Storage temperature -40℃~ 85℃
     humidity 5% ~ 95% Relative humidity, no condensation



    Applications



    CO2 laser marking machine advantages:

    1. High precision and fast speed. Marking depth is controllable optionally.

    2. Wide application. It can mark most non-metals.

    3. No consumption and pollution.

    4. The marking lines are clear, it can withstands heavy wearing.

    5. English software. The software works in Windows environment and it is compatible with many file formats, for instance, PLT, PCW, DXF, BMP and others saved by CORELDRAW, AUTOCAD, PHOTOSHOP and other software. Meanwhile, SHX and TTF can be imported into the software directly.



    Fiber laser marking machine co2 tube source FC2030G-3



    Widely used in Electronic Components, Instruments, Garments, Leather, Bags, Shoemaking, Buttons, Glasses, Medicine, Video, Beverages, Cosmetics, Packaging, Electrical Equipment and other fields.



    Marking on electronic components, electrical products, IT industry, auto parts, hardware products, precision instruments, gift accessories, medical equipment and other high-end products, precision, fine logo print. Typical applications such as plastic (PA66) heat insulating flight laser marking, metal plate,packaging boxes and etc.



    Fiber laser marking machine co2 tube source FC2030G-3Fiber laser marking machine co2 tube source FC2030G-3

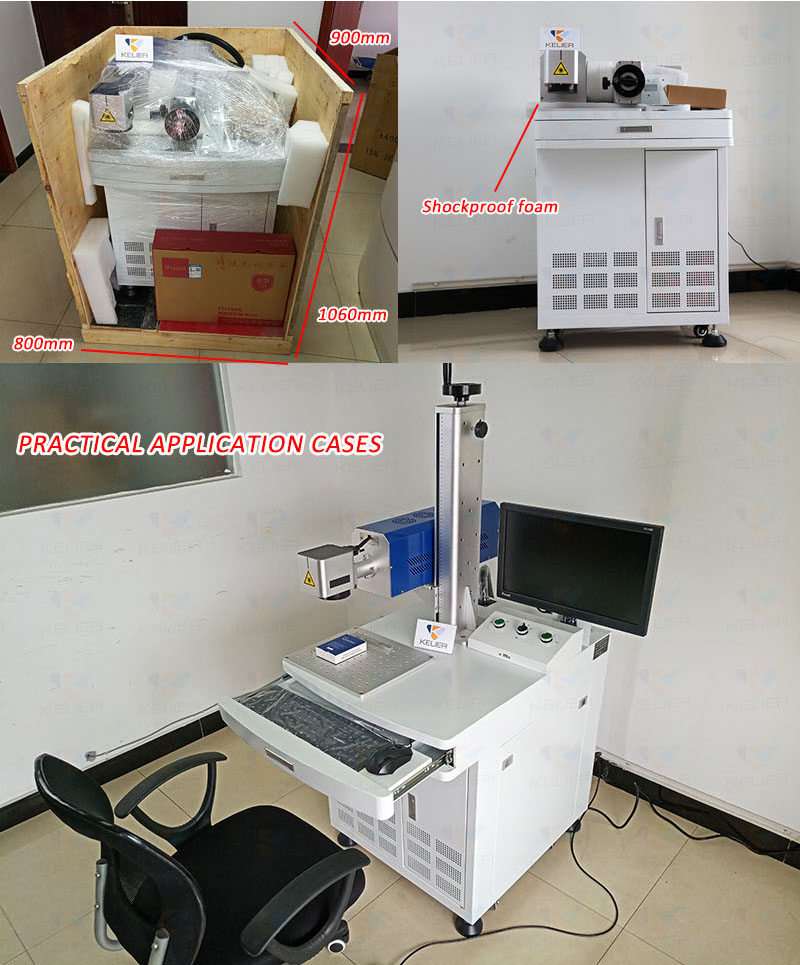

    Packaging & Shipping
    Packing list



    It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator.



    Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
    The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.



    Packaging size/weight(mm):900(L)*800(W)*1060(D)   /  120KG
     Part name Brand origin Quantity
     Fiber laser China DAVI or CRD 1 sets
     High speed scanning galvanometer Beijing SINO GALVO 1 sets
     Focusing lens Singapore wavelength 1 sets
     Marking software EZCAD/NOAH 1 sets
     Indicator locator Xi'an sapling 1 sets
     Power switch Taiwan Meanwell 1 sets
     Laser frame Self-control 1 sets
     Print foot Customized 1 sets
     Equipment switch Shanghai Jia Jia 1 sets
     Control computer(Include) desktop computer 1 sets
     Rotary Printing Table (Order) Dongsheng Precise 1 sets
     Instructions

     Video, text and pictures

     1 sets

    Fiber laser marking machine co2 tube source FC2030G-3Fiber laser marking machine co2 tube source FC2030G-3



     Shipping Method

     1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;

     2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery;

     3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods.

     4. Your shipping agent or forwarder.

     Information you need to know before buying

     1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available.

     2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department.

     3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required.

     4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.



    Fiber laser marking machine co2 tube source FC2030G-3Fiber laser marking machine co2 tube source FC2030G-3

    FAQ

    Q1:How to distinguish laser tubes with different powers and applications?
    A:Laser tube length (relatively speaking, the longer, the bigger)
    B:Laser tube diameter (relatively speaking, the thicker, the bigger)
    C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
    So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .



    Q2:Please let us know following information:
    A. What materials you want to mark ?
    B. How many products you want to mark per day?
    C. What is the MAX working area ?



    Q3: What’s the package?
    A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.



    Q4: Will the package damaged during transportation?
    A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

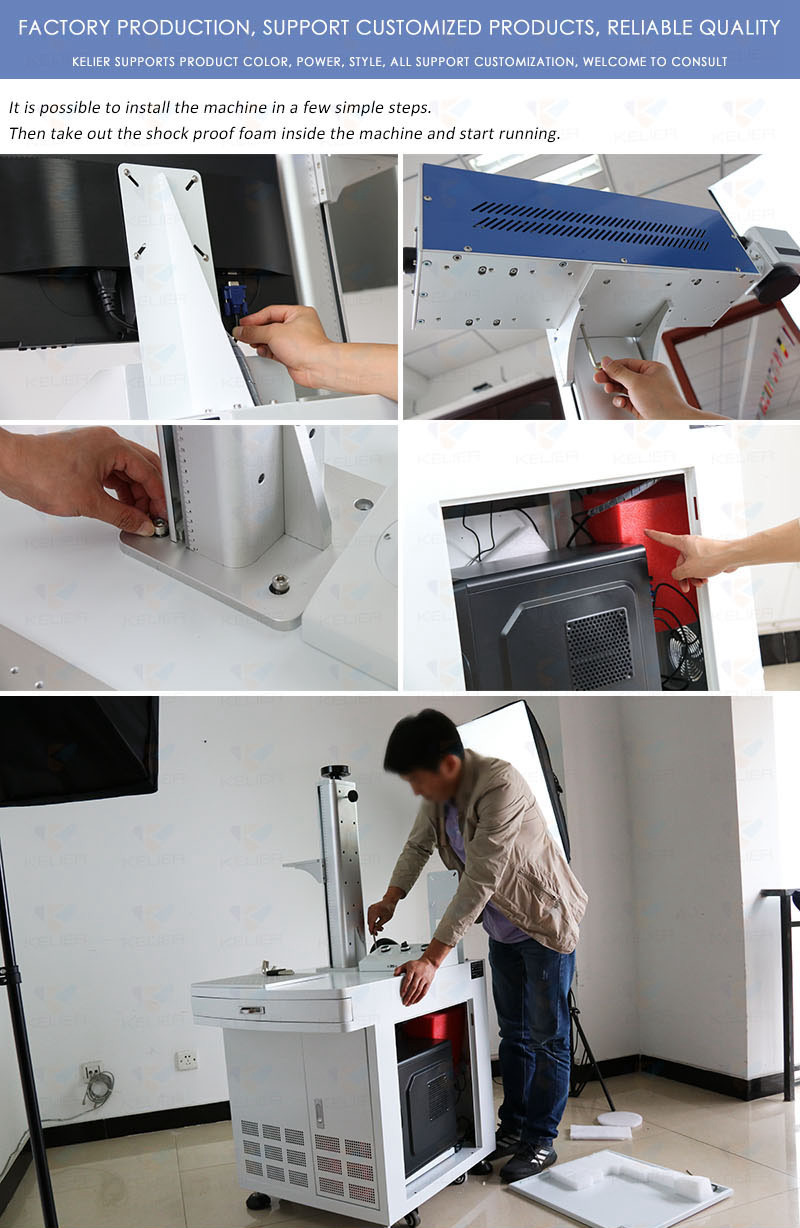

    Q5: How to install and run the machine?
    A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
    learn by themselves.



    Q6: How can I do if the machine goes wrong?
    A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.



    Q7: Is it easy to operate the laser marking machine for the new user ?
    A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.



    Q8.What i need to do when the laser marking machine suffer trouble ?
    A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.



    Q9.How to maintain the laser marking machine?
    A:After 8 hours working,it’s better close 10 minutes.
    B:Keep lens and mirrors clean.
