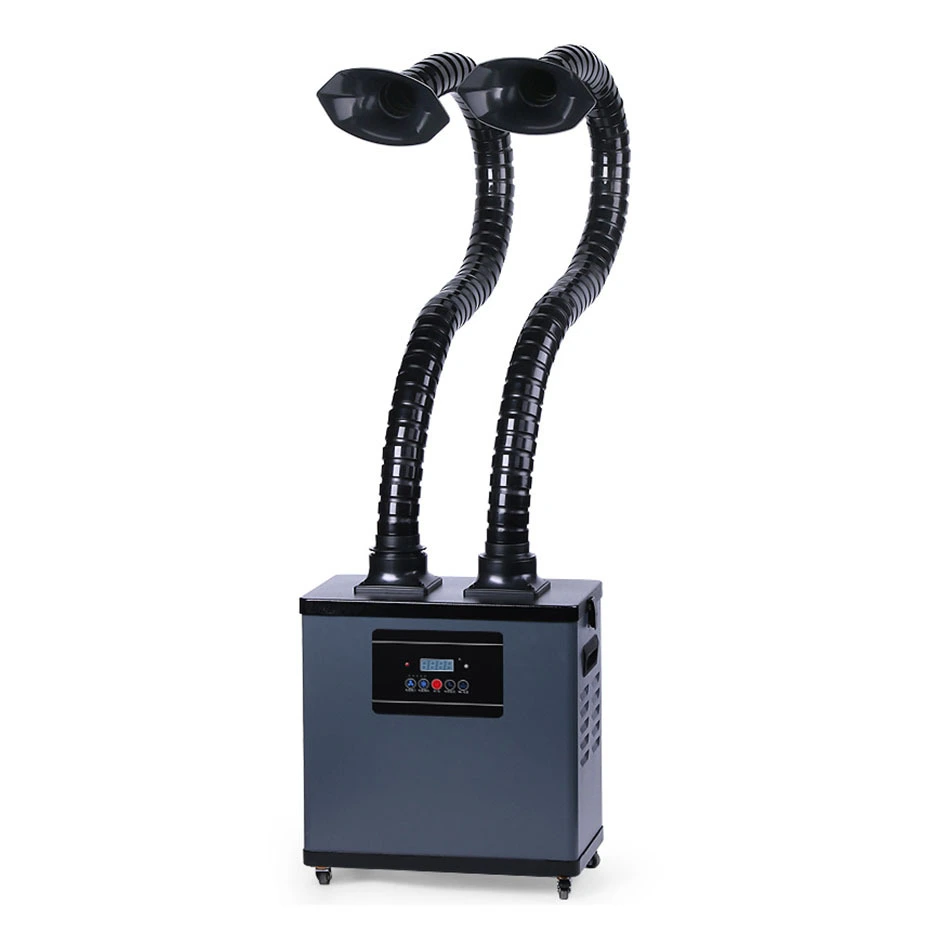

Smoke purifier for laser marking machine Smoke purifier-Kelier
Produced by the latest technology, Smoke purifier for laser marking machine presents its finest function well.The design of it has met varied needs of customers.It has been proved that can be applied to wide range because the product embodies superb characteristic than other products in the market.
It is Smoke purifier for laser marking machine features and appearance that differentiates it from other products in the market. We pay close attention to the selection of raw materials and the use of manufacturing technologies. In this way, the quality and performance of TIJ inkjet printers, CIJ inkjet printers, laser marking machines, industrial conveying equipment, Packaging equipment can be better guaranteed. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of Other Air Cleaning Equipment,Smoke purifier for laser marking machine is widely accepted by users. Over the years,Smoke purifier for laser marking machine has been widely recognized by customers who have cooperated.
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company | Place of Origin: | Sichuan, China |
| Brand Name: | OEM | Warranty: | 3 years |
| Name: | Laser Smoke purifier | Model: | KLE-SP180/SP250 |
| Power: | 80W/135W | Filtration accuracy: | 0.0003mm |
| Wind speed: | 14M/S*2 | Noise: | <55db |
| Flow: | 180000L/H | Filter element layer: | 3 |
| Weight: | 14KG | Electricity demand: | AC220V±10%/50Hz |
| After-sales Service Provided: | Online support |
| Brand: KELIER | Model: KLE-SP180/SP250 | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 80W/135W |
| Flow:180m³/h/250m³/h | Voltage: 110V-240V | Packing weigth:15kg |
| Name:Smoke purifier for laser marking machine | ||
| -Laser Cutting Laboratory PM2.5 Smog Smoke Purifier Absorber air Purifier support out door fresh air air purifier, It is a Induarrial,civil and household use dust and air cleaning equipment. Use Multiple layer filter, Usually include Pre+HEPA+activated carbon Filter, have high quality air purification efficiency, with quiet working noise, Could Effectively Filter out VOC/Pollen/PM2.5/ Formaldehyde/Smoke/Haze /sterilize ect. | ||

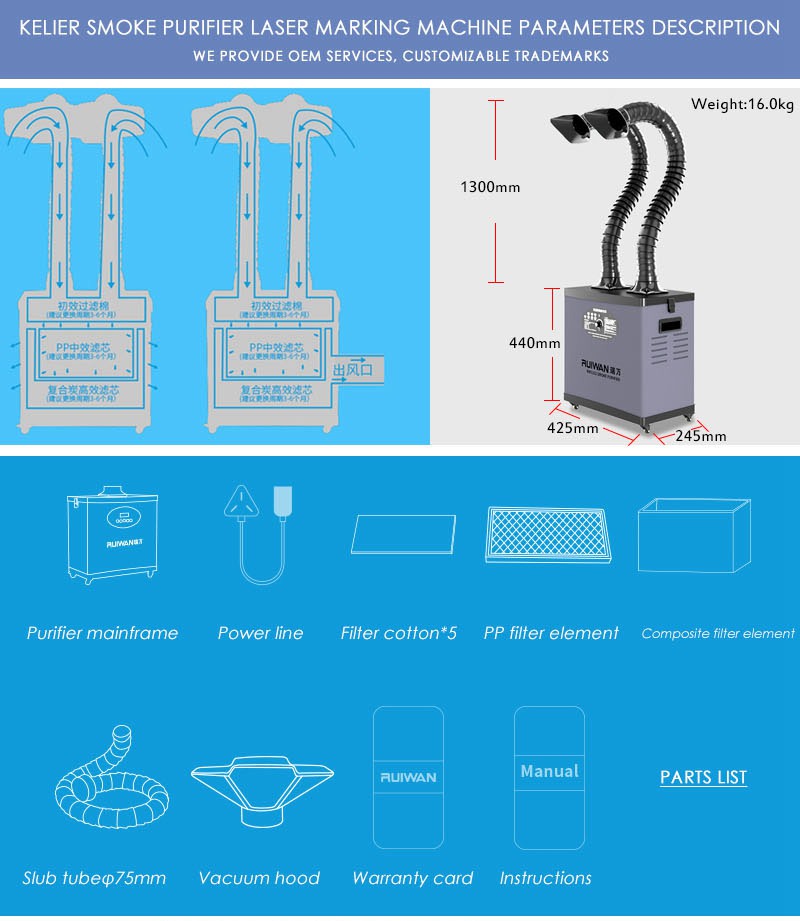

1. In the function of fan, the exhaust gas enter into the dust collector machine. The fire barrier device will interception the spark.
2. The coarse particles will drop in the ash hoper with the function of gravity and upstream airflow firstly. The small dust particles will be trapped in the outer surface of the filter element.
3. The purified clean gas enter into the clean room through filter element, and then be absorbed by the activated carbon, the satisfactory air will discharge.
Filters Using Time
When you find filters become dirty and affected the smoke purifier absorb air volume and working effect, you may need replace the air filters.
According to User feedback, If 8 hours working time per Day, The Recommend Replacement Filters time is:
HEPA Filter: 180-240 Days
Medium Filter: 30-60 Days
*Noted:
The Filters actual using time depends on the different working enviroment, and please change the filters when it need to change, otherwise the dirty filters may blocked the Fan, then lead the smoke purifier stop work.
| KELIER Smoke purifier parameters | ||

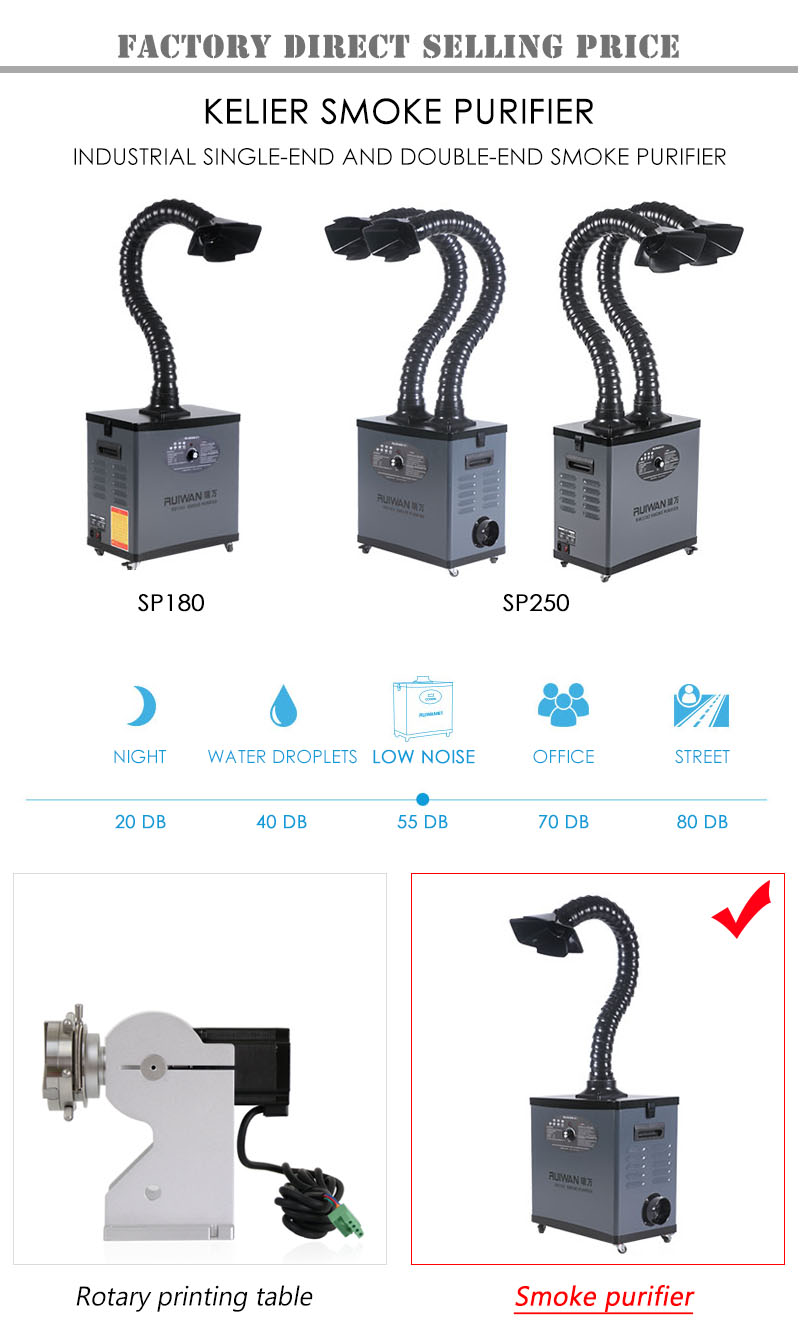

| Model | KLE-SP180 | KLE-SP250 |
| Power | 80W | 135W |
| Filtration accuracy | 0.0003mm | 0.0003mm |
| Wind speed | 14M/S | 2*10M/S |
| Noise | <55db | <63db |
| Flow | 180m³/h | 2*125m³/h |
| Filter element layer | 3 | 3 |
| Size | 425*245*440mm | 425*245*440mm |
| Weight | 13kg | 14kg |
| Electricity demand | AC220V±10%/50Hz | |
| Product certification | CE,PONY | |

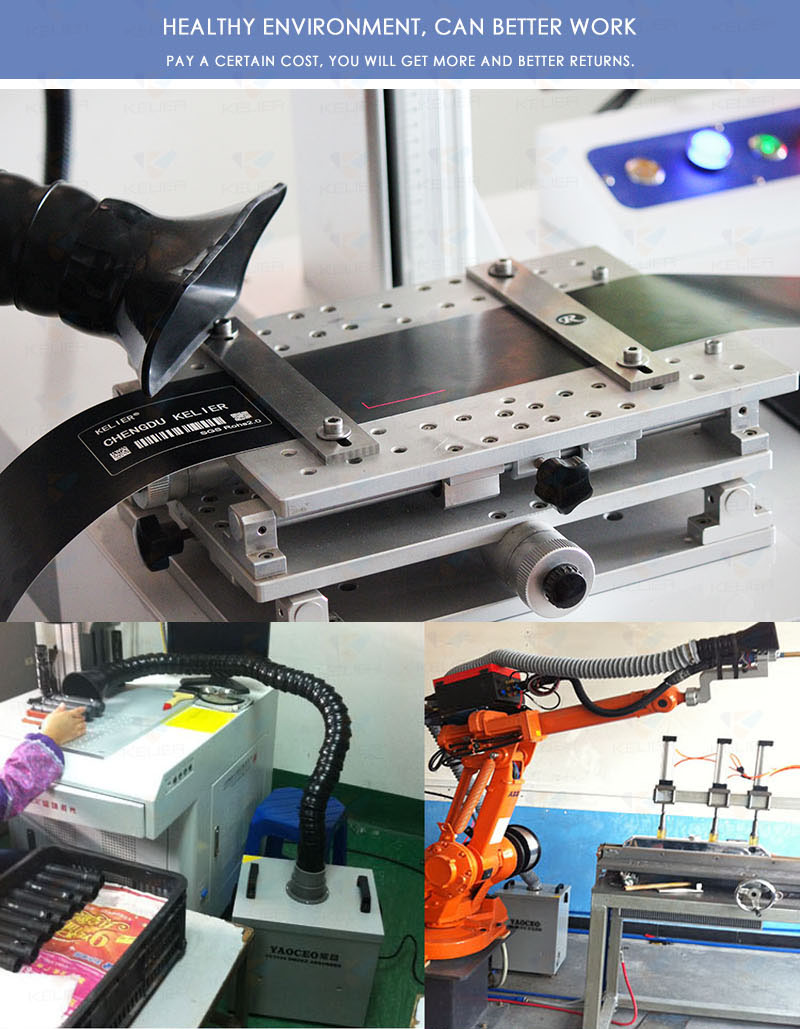

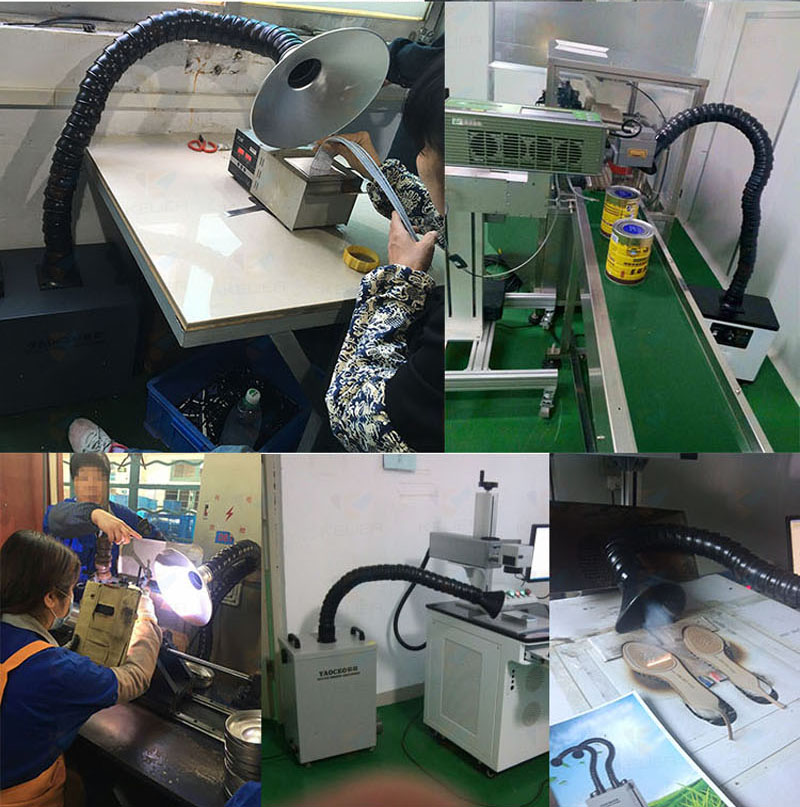

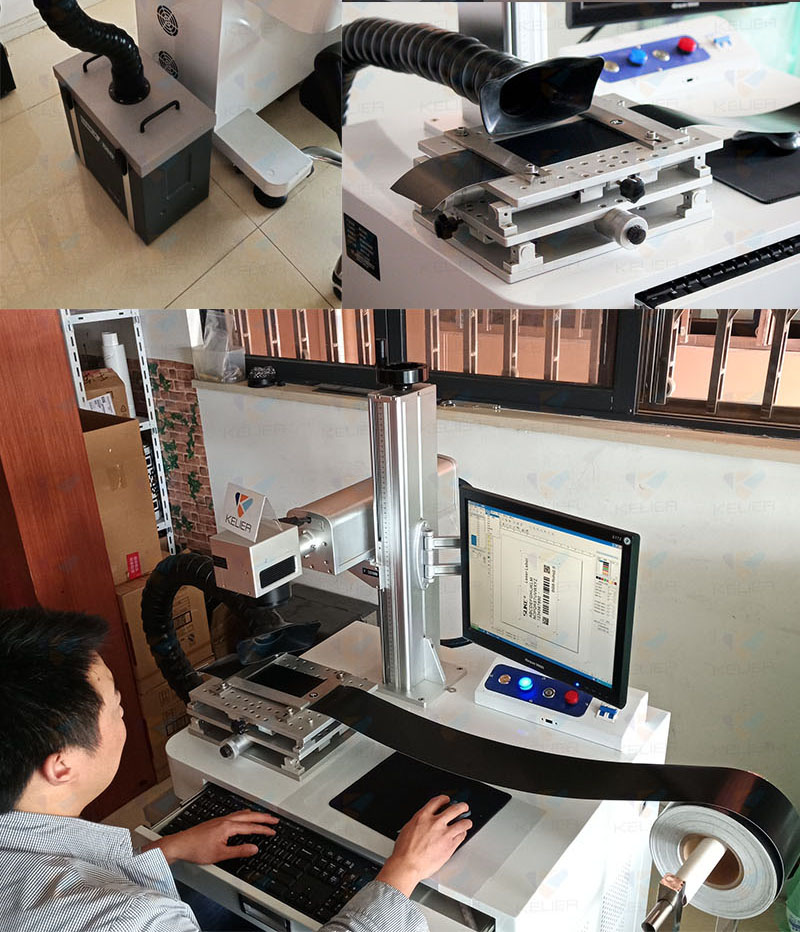

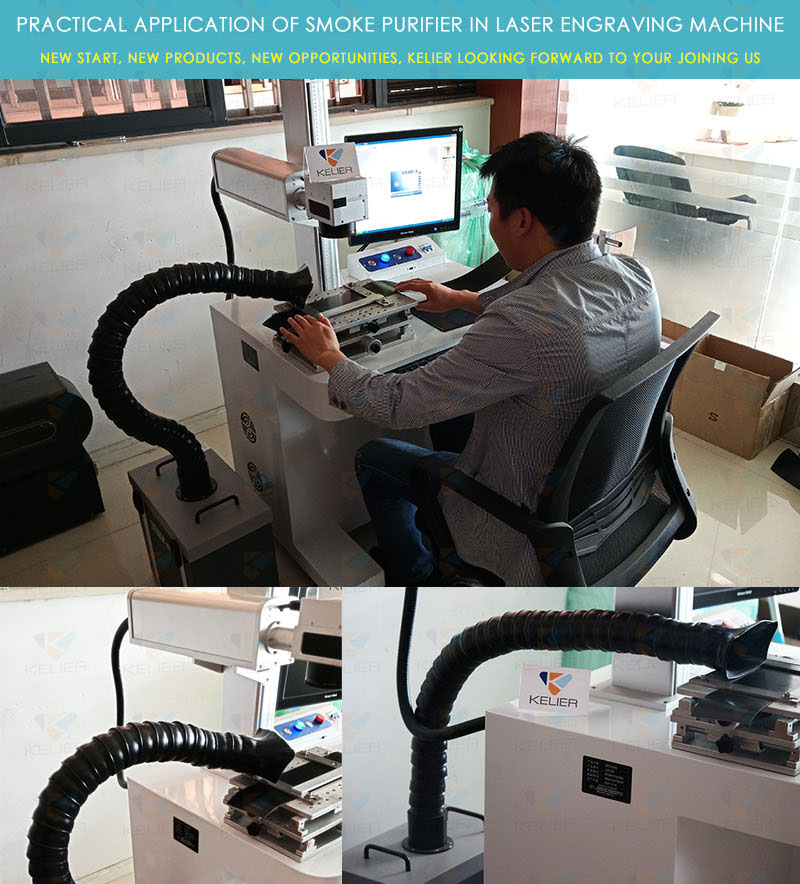

| KELIER Smoke Purifier Laser Marking Smoke Machine Soldering Tin Furnace Smoke Removal and Smoking Can Rotate Different Configuration Schemes According to Demand | ||
It is equipped with built-in centralized PLC controlling system. The operation panel is clear and simple, very easy to operate. Pulsing back-flushing automatic dust-removal system: The filter core is the automatic rotating and back-flushing type, which keeps the filter core surface clean when working, to insure the stable blowing rate;
the air compressor parts are connected with high pressure rubber pipe with high pressure air-inflow in the bottom, which insure the facility always in good working condition. The filter core is imported from America with long useful life. It can arrest the 0.3μm particles.
The filtering effect is good for all kinds of particles including the wet particles. Photoelectric controlled on/off, energy saving and high efficiency. The hood has the lighting device which is upon customer’s choice.The parts working condition are all stable and have long useful life, meantime easy to be replaced.
Total Weight of Wooden Box Packaging:Size 750*430*370mm, weight:15kg
Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.
| Packing list |
| Support customization of various non-standard sizes, support customization of different shapes of transmission equipment |
| Packaging size/weight(mm):750(L)*430(W)*370(D) / 15KG |
| Shipping Method |
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods. |
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available. |
2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
Q1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .
Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?
Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.
Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.
Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
