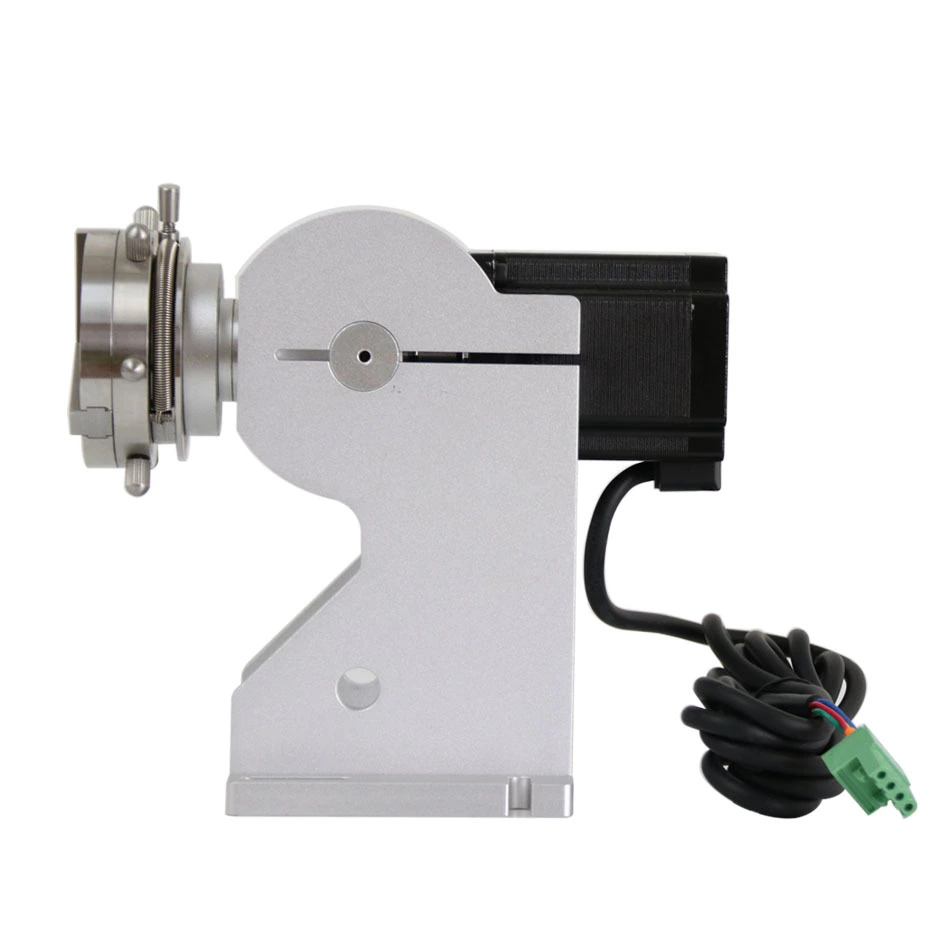

Rotary axis for fiber laser marking machine jewelry ring processing metal gold Rotary-Kelier

The use of highly advanced technologies contributes to the safe and efficient manufacturing of the product.At present, Rotary axis for fiber laser marking machine jewelry ring processing metal gold can be widely seen in the application scope(s) of Laser Marking Machines.

    oops...!

    no product data.

    Go to homepage

    Chengdu Kelier Electronic Co., Ltd. boasts strong R&D capabilities and has been working on product development for years. Rotary axis for fiber laser marking machine jewelry ring processing metal gold is our newly-developed product and goes on sale starting now. To meet various needs of customers, we supports customized Rotary axis for fiber laser marking machine jewelry ring processing metal gold. Since the beginning,Chengdu Kelier Electronic Co., Ltd. have been sticking to the business principle of 'integrity' and bearing the mind of 'offering customers the best of us'. We are fully confident that we will make a great success in the future.

    Application:Laser MarkingWorking Accuracy:0.001mm
    Graphic Format Supported:AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPGLaser Type:Fiber Laser
    Condition:NewCNC or Not:Yes
    Cooling Mode:Air CoolingControl Software:EZCAD borad
    Place of Origin:Sichuan, ChinaBrand Name:Kelier
    Laser Source Brand:DAVI/CRDControl System Brand:EZCAD/NOAH
    Marking Head Brand:SINO GALVOWeight (KG):7 KG
    Key Selling Points:Easy to OperateWarranty:3 years
    Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Fiber laser marking machine co2 tube sourceMarking Area:100mm*100mm
    Machinery Test Report:ProvidedVideo outgoing-inspection:Provided
    Warranty of core components:2 yearsCore Components:Engine
    Poewr:60WPrint Range:360 Degree Rotation
    Voltage:110V-240VPacking Weight:7KG
    Model:KLE-RE6088Axis length:150mm(90°elevation)
    Diameter of turntable:69mmCertification:ce
    After-sales Service Provided:Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical supportAfter Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair service
    Local Service Location:Egypt, Turkey, Viet Nam, Indonesia, SpainShowroom Location:Egypt, Canada, Turkey, United Kingdom, Viet Nam, Indonesia
    Marketing Type:New Product 2020




    Brand: KELIERModel: KLE-RE6088Origin: Mainland China
    Provinces: SichuanCity: ChengduPower: <60W
    Print Range: 360 Degree RotationVoltage: 110V-240VPacking weigth:7kg
    Name:Rotary axis for fiber laser marking machine jewelry ring processing
    -Rotary axis for fiber laser marking machine 360 degree rotation marking Rotary elastic mounting Fast loading, can print any round, square material, using Japanese imported positioning motor, higher accuracy, with KELIER laser machine, you can print any information you need.



    Product Description

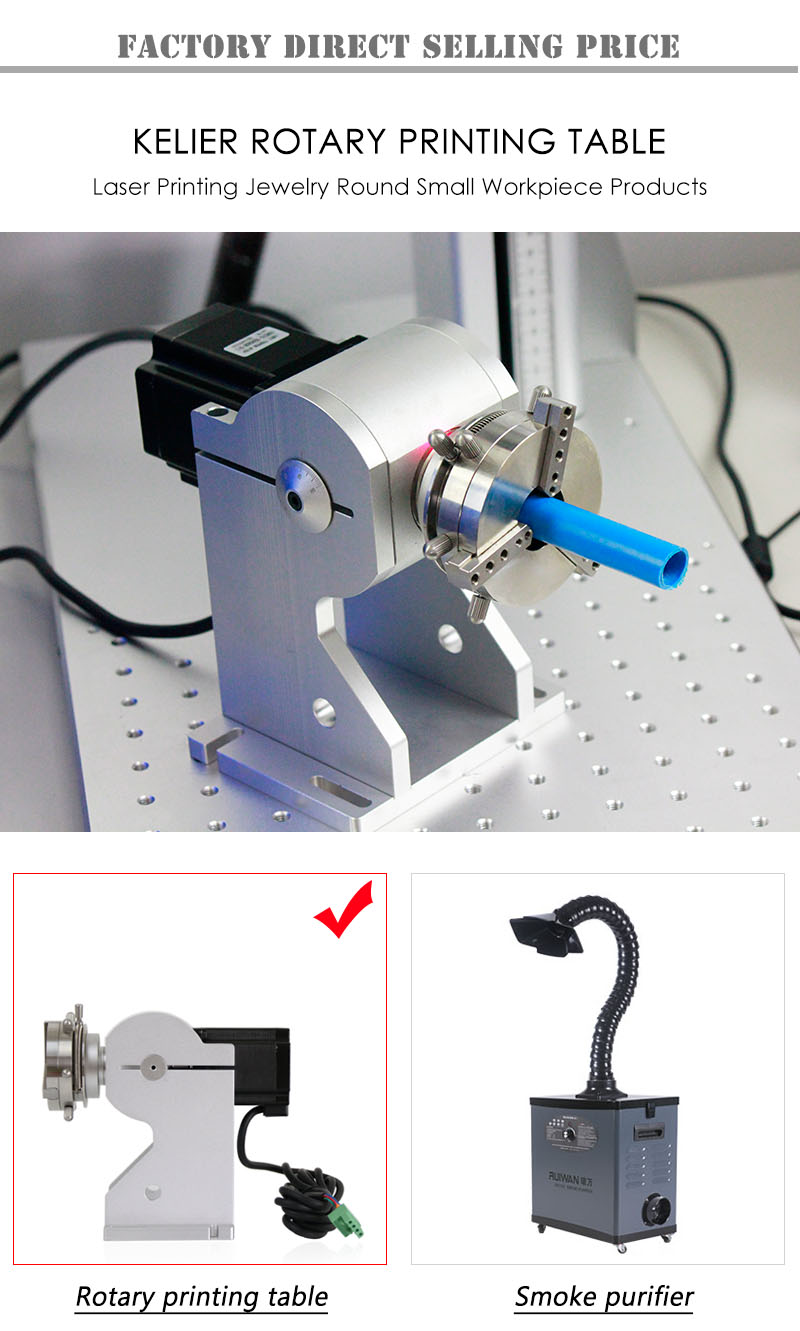

    Rotary axis for fiber laser marking machine jewelry ring processing metal gold

    Rotary axis for fiber laser marking machine jewelry ring processing metal gold





    KELIER laser engraving machine rotary clamp fixture, using high-quality aluminium alloy, after many processes of production, machine use is extremely uncertain, can print rings, jewelry products, inside and outside can be rotated, marking the information you need to mark.

    Product characteristics:

    1. Use stainless steel chuck;

    2. Miniature laser marking rotary table with compact products;

    3. It is equipped with 110V-240V power supply, which can be used anywhere in the world.

    4. Equipped with complete accessories, you can print products of different sizes from 2mm to 150mm.

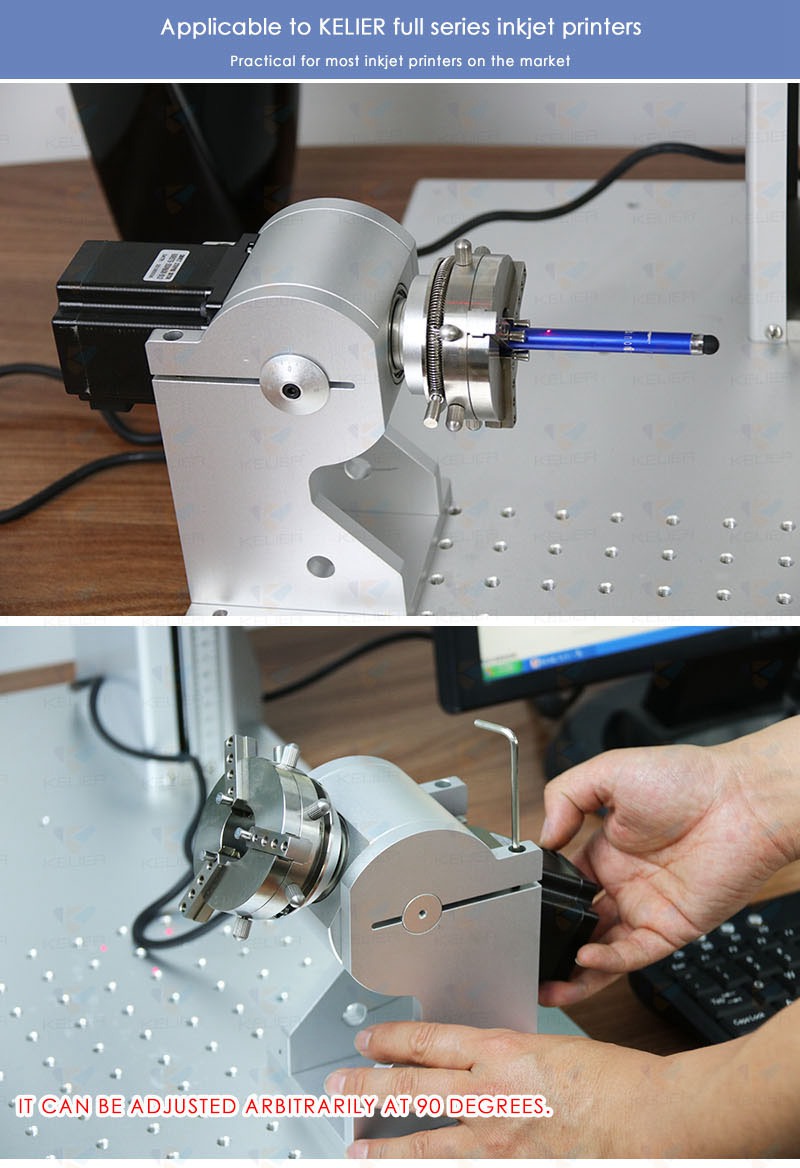

    5. Adopt Japanese imported progressive motor, accurate positioning, 90 degree adjustment, 360 degree no dead angle printing.



    Rotary axis for fiber laser marking machine jewelry ring processing metal goldRotary axis for fiber laser marking machine jewelry ring processing metal gold



    With KELIER laser engraving machine, we can provide you with more technical support, and we provide long-term after-sales service. If you have any problems, you can consult us to solve them.



    We are a professional engraving machine, jet printer manufacturer, with a complete after-sales service system. At the same time, we hope to reach a cooperation agreement with you to sell our products in your country or region. You can become our agent and distributor, and get higher profits.



    Rotary axis for fiber laser marking machine jewelry ring processing metal goldRotary axis for fiber laser marking machine jewelry ring processing metal gold



    Technical Paramet
    KELIER Rotary axis table parameters
     Model KLE-RE6088
     Motor 60*88 (SNOWIT)
     Driver MD542A
     Axis length 150mm(90°elevation)
     Diameter of turntable 69mm
     Application range of inner clip 2mm-143mm

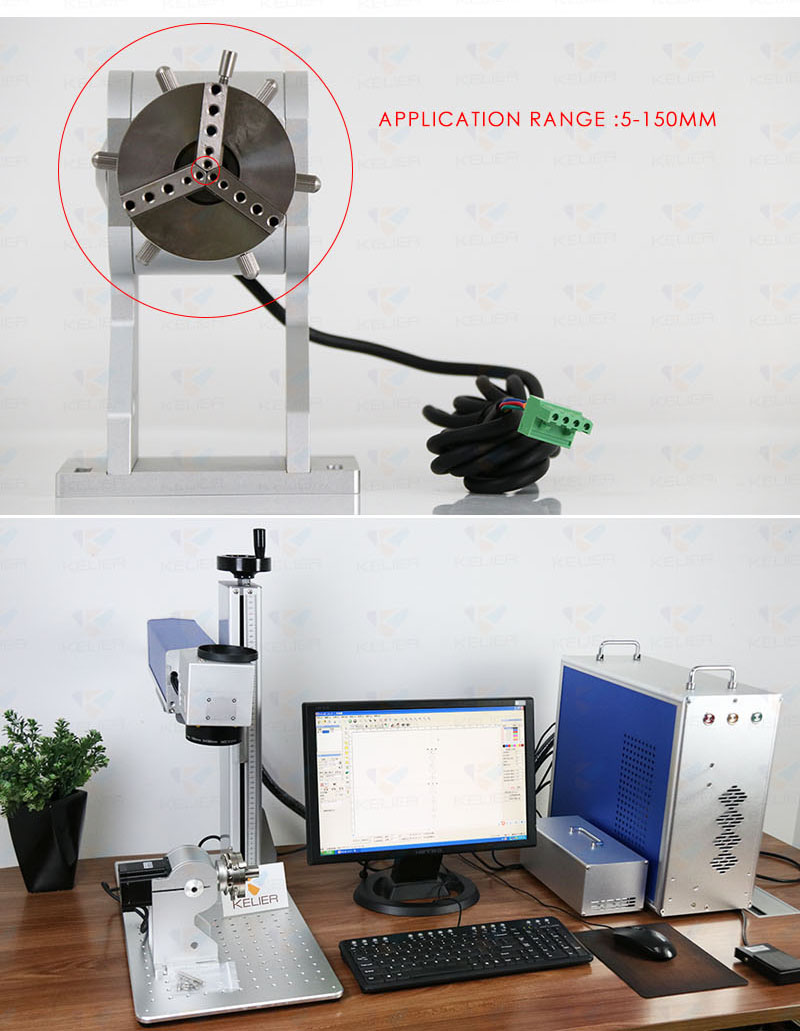

     External clamp application range 5mm-150mm
     Bearing capacity 0-2000g
     Power consumption  <60W
     Material Stainless Steel

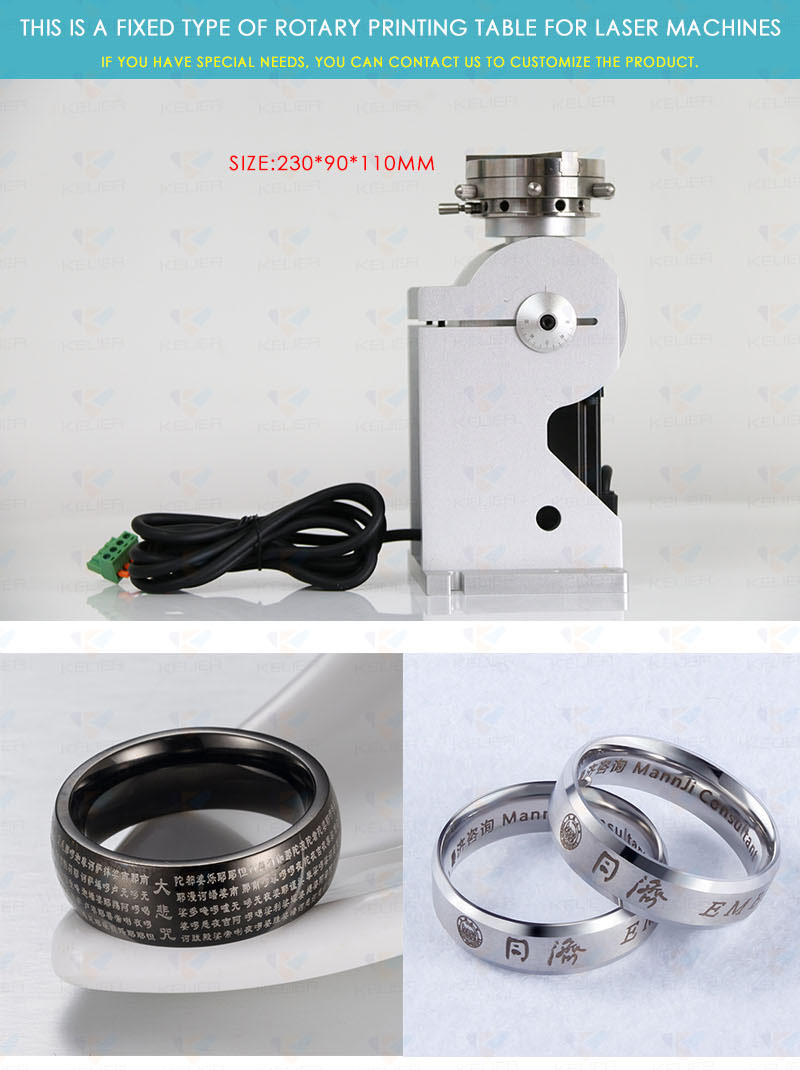

     Size 230*90*110MM (length, width and height)
     Electricity demand S-120-24/AC110V-240V±10%,50HZ/60HZ(Must explain)

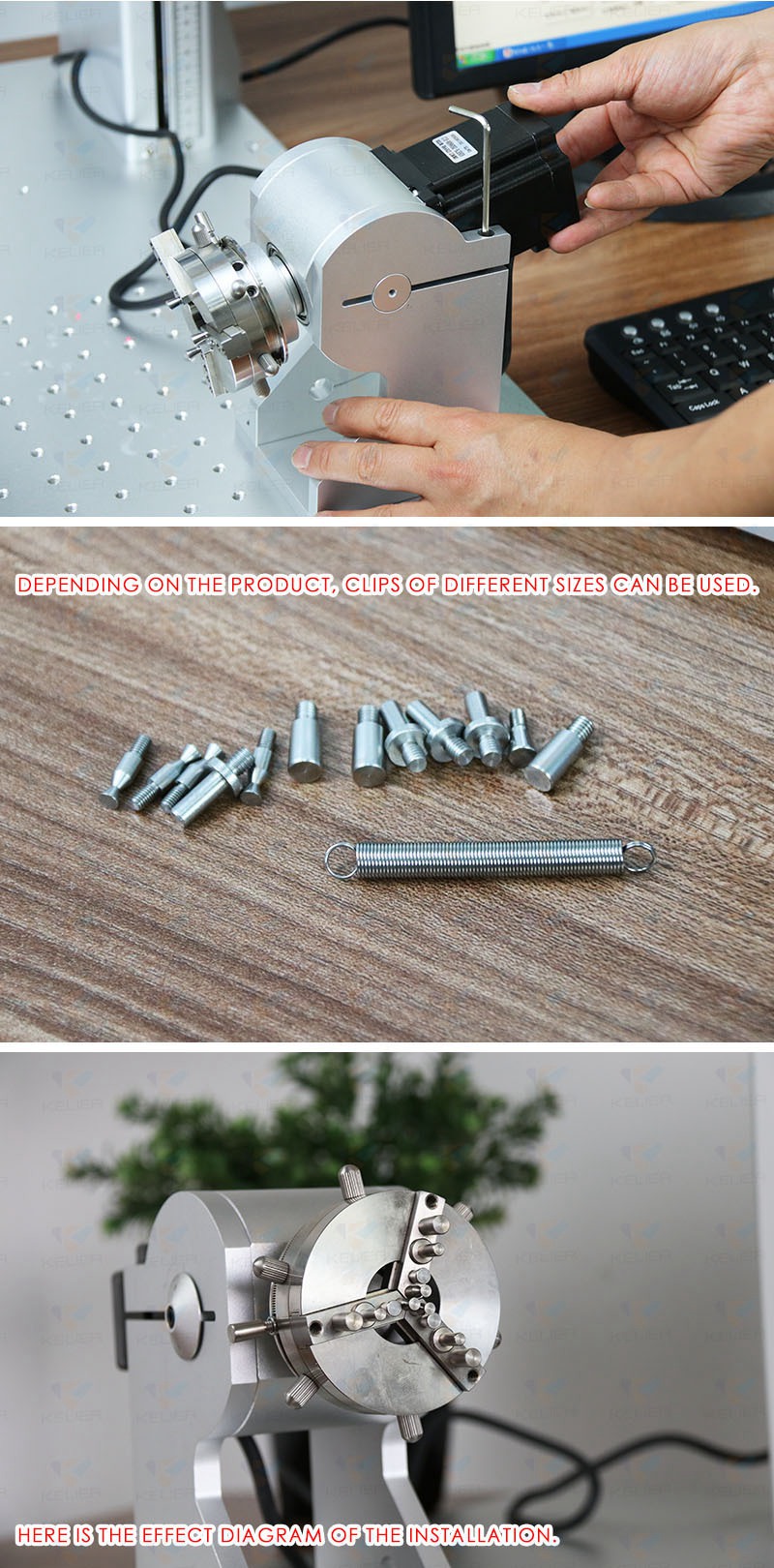

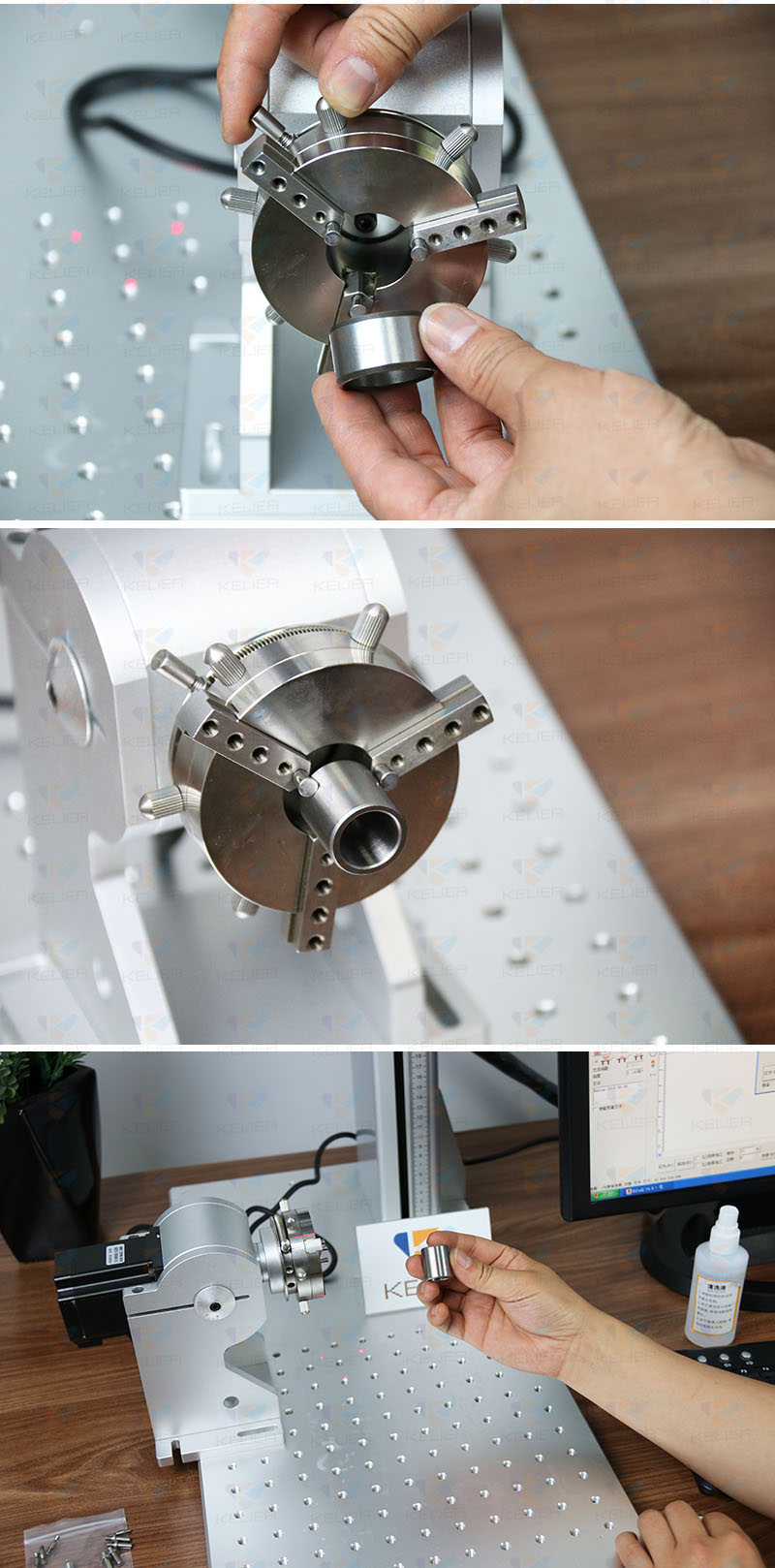

    Equipped with a full set of precision clip needles, shake-proof, good stability, high accuracy, support rapid loading and unloading, applied to: laser marking machine, laser welding machine, laser engraving machine. Can mark: cigarette holder, pen, bearing, hardware, etc.

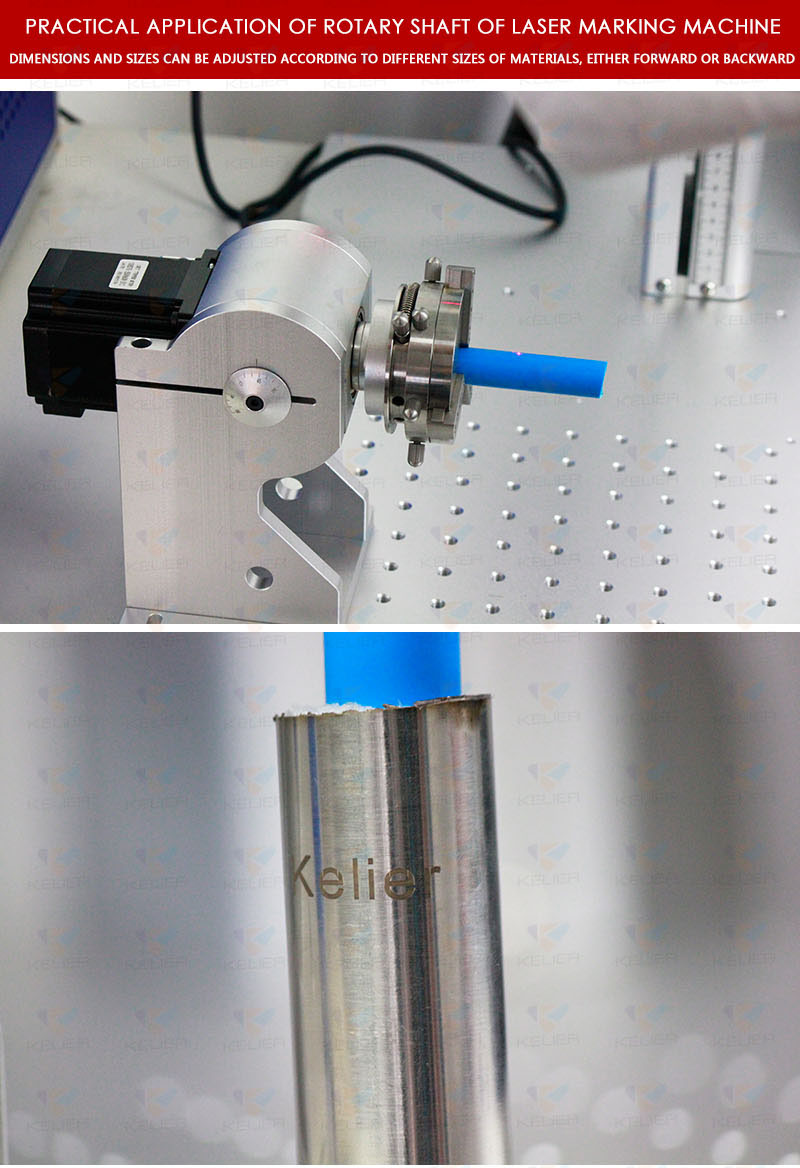

    Applications

    You can develop the product use completely independently in order to obtain more value of the product, such as various metals, plastics, even cloth and other items, you can use rotary table printing to achieve.



    Rotary axis for fiber laser marking machine jewelry ring processing metal goldRotary axis for fiber laser marking machine jewelry ring processing metal gold

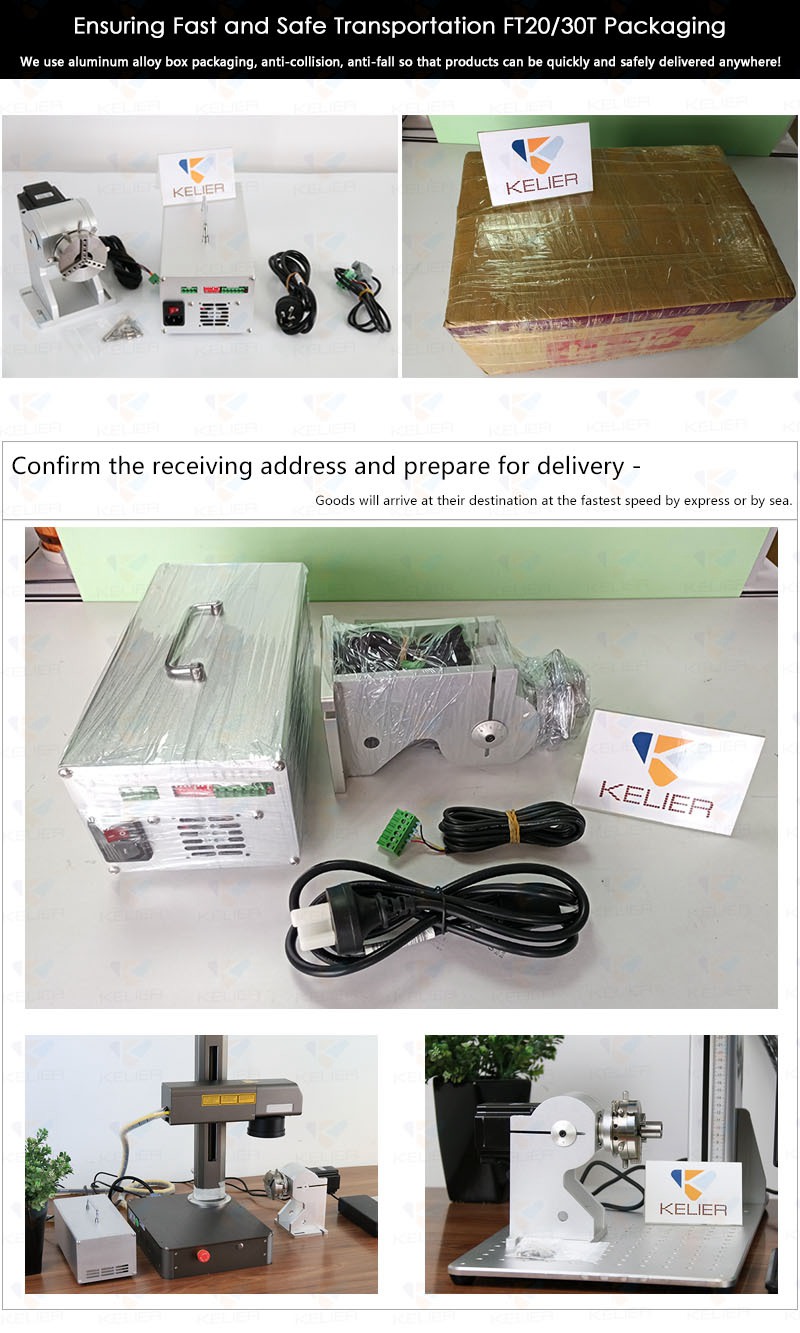

    Packaging & Shipping
    Net weight: 6kg
    Total Weight of Wooden Box Packaging:Size 370*230*180mm, weight:7kg


    Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
    The outer cardboard packaging, the middle use of shockproof foam protection,waterproof, moisture-proof, shockproof.
    Packing list
    TitleSize(cm)G.w(kg)Remarks
      Inner packaging   37*23*18   7.0   Moisture and collision-proof packaging materials

      Singel packingItemsPics
       Rotary table   1     Standard packing
       Power Control   1
       Power Line   1
       Data line   1
       Parts package   1
       Instructions   1

    Rotary axis for fiber laser marking machine jewelry ring processing metal gold



     Shipping Method

     1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;

     2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery;

     3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods.

     4. Your shipping agent or forwarder.

     Information you need to know before buying

     1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available.

     2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department.

     3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required.

     4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions.



    Rotary axis for fiber laser marking machine jewelry ring processing metal goldRotary axis for fiber laser marking machine jewelry ring processing metal gold

    FAQ

    Q1:How to distinguish laser tubes with different powers and applications?
    A:Laser tube length (relatively speaking, the longer, the bigger)
    B:Laser tube diameter (relatively speaking, the thicker, the bigger)
    C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
    So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .



    Q2:Please let us know following information:
    A. What materials you want to mark ?
    B. How many products you want to mark per day?
    C. What is the MAX working area ?



    Q3: What’s the package?
    A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.



    Q4: Will the package damaged during transportation?
    A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.



    Q5: How to install and run the machine?
    A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
    learn by themselves.



    Q6: How can I do if the machine goes wrong?
    A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.



    Q7: Is it easy to operate the laser marking machine for the new user ?
    A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.



    Q8.What i need to do when the laser marking machine suffer trouble ?
    A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.



    Q9.How to maintain the laser marking machine?
    A:After 8 hours working,it’s better close 10 minutes.
    B:Keep lens and mirrors clean.
