Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Kelier summarizes the defects of past products and continuously improves them. The specifications of the Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine can be customized according to your needs.

Printer type: fibre marking machine

Laser: Raycus

Weight: 15KG

Customization: OEM\ODM, boot interface, packaging design (quantity requirements)

Minimum order quantity: 1

Packing: plastic box+carton+foam

Delivery time: 7-20 working days

Model: FG20T


    oops...!

    no product data.

    Go to homepage
    Laser

    RAYCUS

    Laser power

    18W~20W (Subject to factor inspection)

    Laser wavelength

    1064nm

    Beam quality

    <2

    Indicating light

    Red li^ht

    Galvanometer

    SKYLER

    Marking speed

    W5000mm/s

    Repeat accuracy

    ±0.01mm

    Field lens

    JGZ

    Marking range

    HOmmXllOmm

    Marking line width

    0.17mm

    Marking control system

    KELIER

    Support operating system

    Windows operating system

    Support file format

    PLT, Al, dxf, bmp.jpg

    Sport control

    (Optional)

    Lifting mechanism

    KELIER

    Lifting stroke

    165mm-410mm

    Exercise mode

    Manually up

    Workbench and tools

    KELIER

    Workbench

    One-piece aluminum alloy :200mmX213rrm)

    Fixture

    (Optional)

    Cooling system

    KELIER

    Cooling method

    Finned radiator+forced air cooling

    Power supply system

    KELIER

    Operating Voltage

    110V/230V, 50/60HZ

    Peak power

    20-30W

    Equipment size and packaging

    KELIER

    Equipment size

    390mmX215mmX603mm

    Total Weight

    15KG

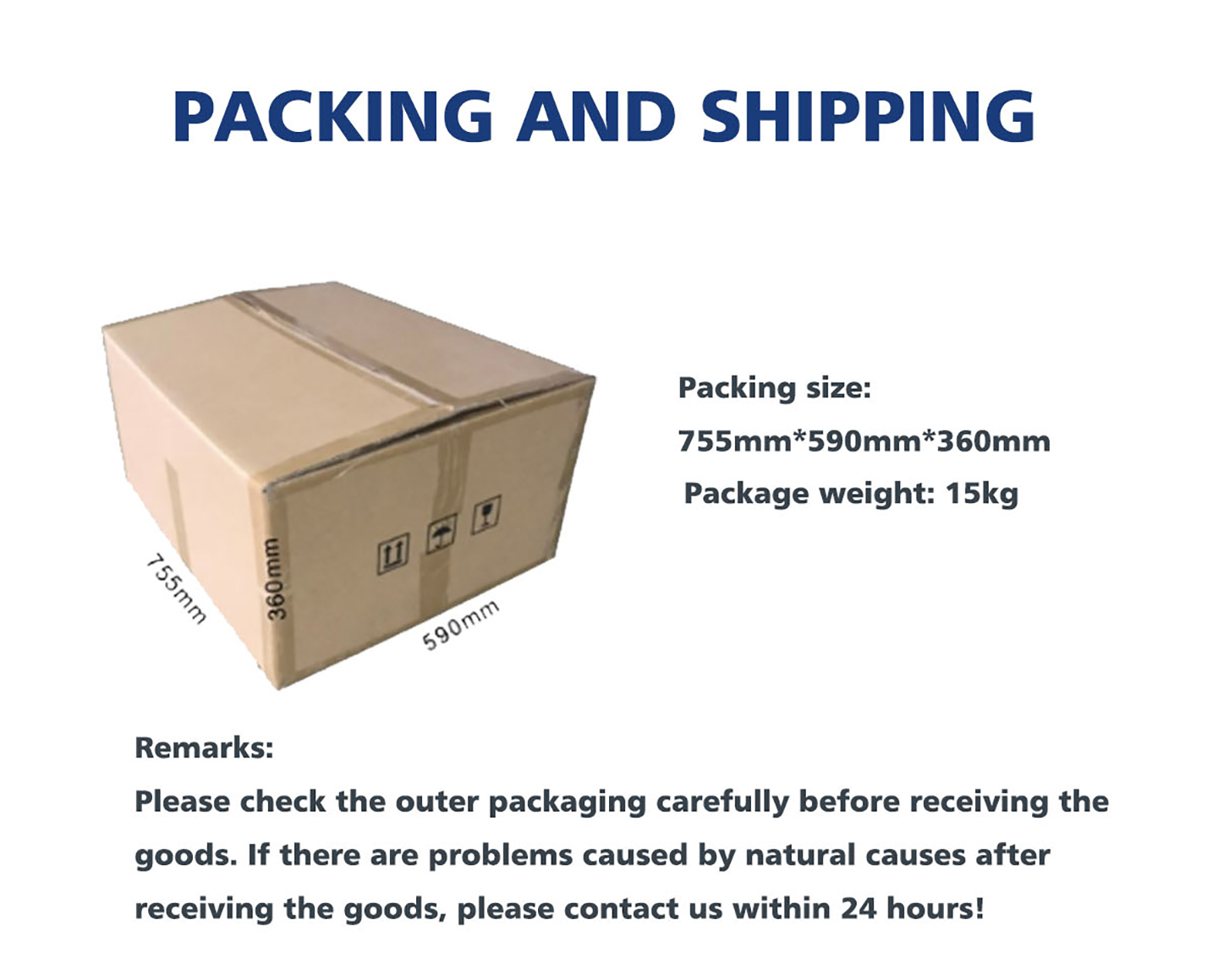

    Package dimensions

    755mmX590mmX360mm

    Packing material

    Pearl cotton + corrugated paper box

    The equipment adopts Raycus laser, the control system adopts the golden orange control card and marking software, the galvanometer adopts the Skyler galvanometer, the field mirror adopts the lattice subfield mirror, and the core accessories are all well-known domestic brands.

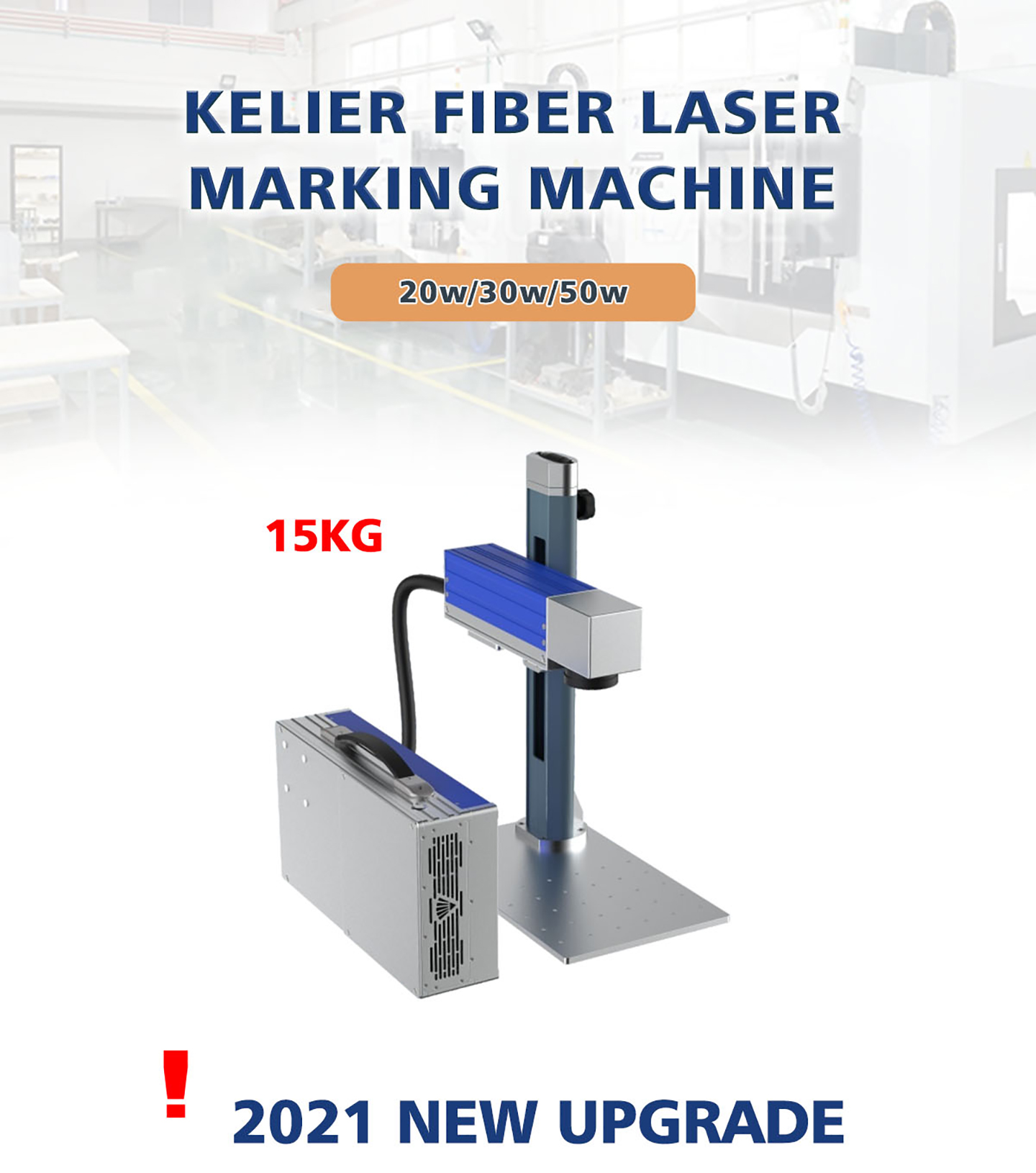

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 8

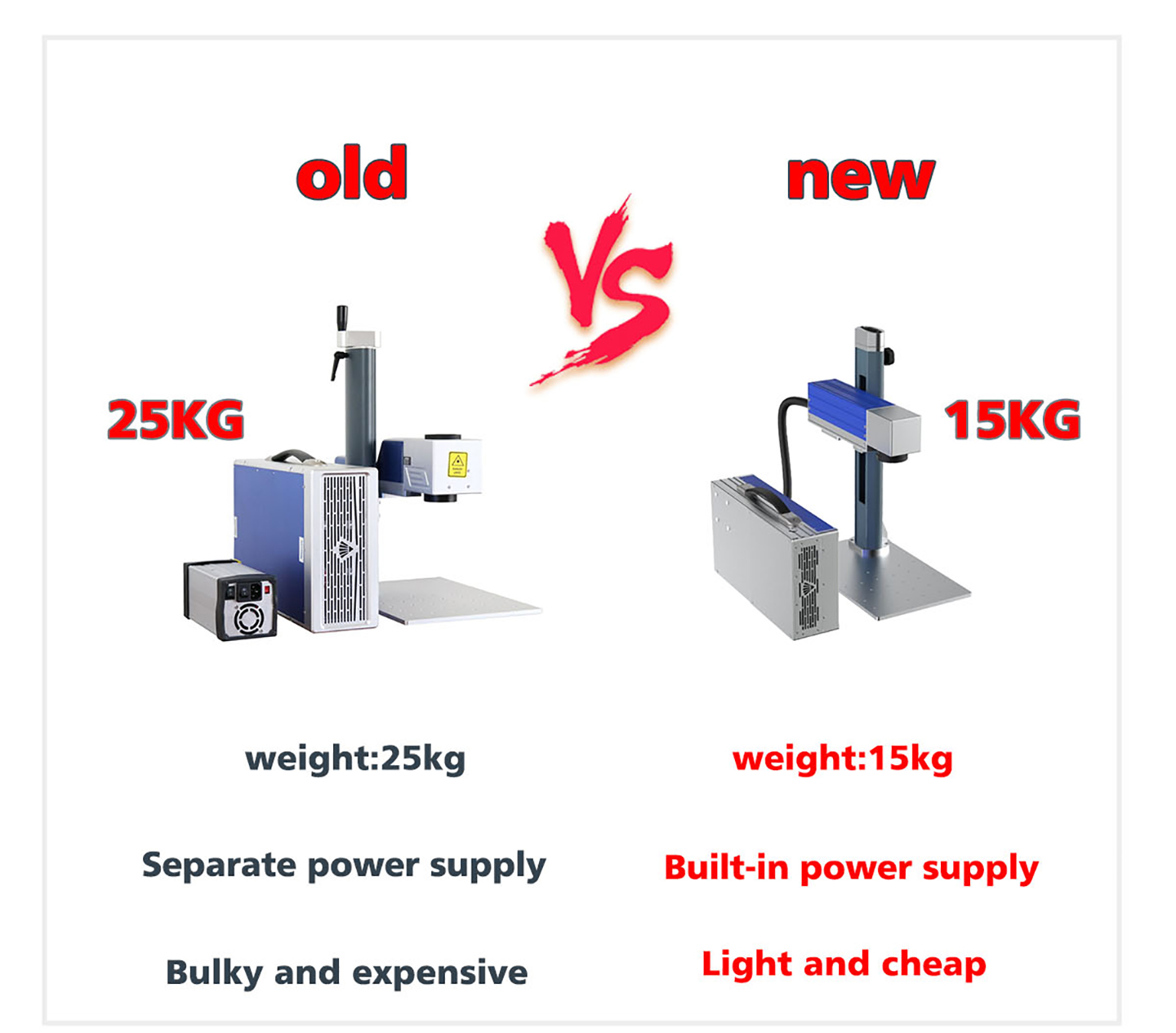

    The host adopts an integrated design, which integrates core components such as laser, control card, and power supply, making the host smaller. The optical path adopts a compact design, and the size is only half the size of the traditional optical path. The size of the whole machine is 390mmX215mmX603mm, and the weight of the whole machine is about 15KG.

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 9

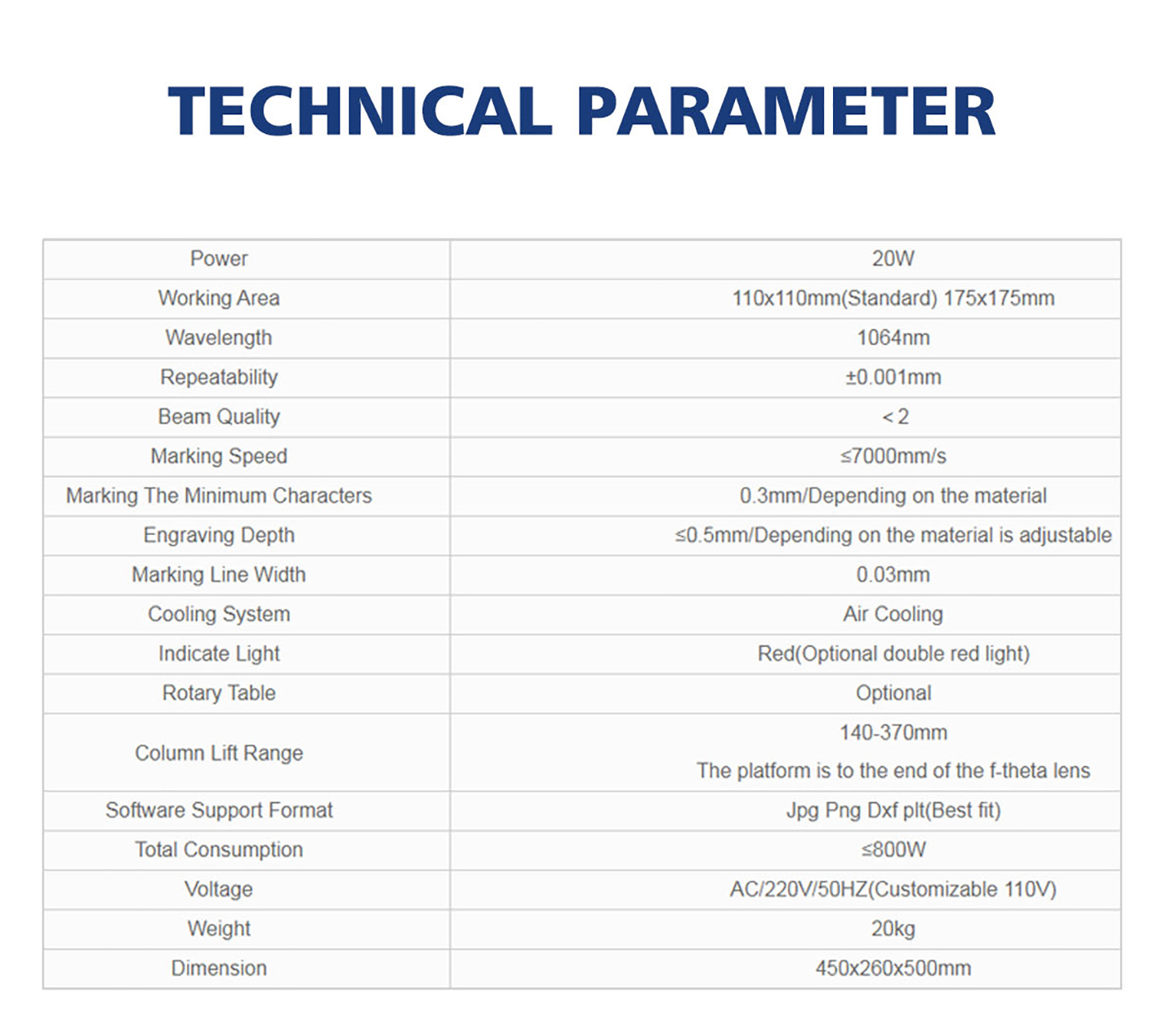

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 10

    The aluminum alloy fin heat-conducting chassis is designed, and the laser and control board power supply system adopts a separate design, so that the heat can be quickly conducted to the aluminum alloy chassis fins, and then the heat is taken away by the forced air cooling system to ensure that the equipment The components work in an ideal temperature environment, which greatly improves the stability and reliability of the equipment

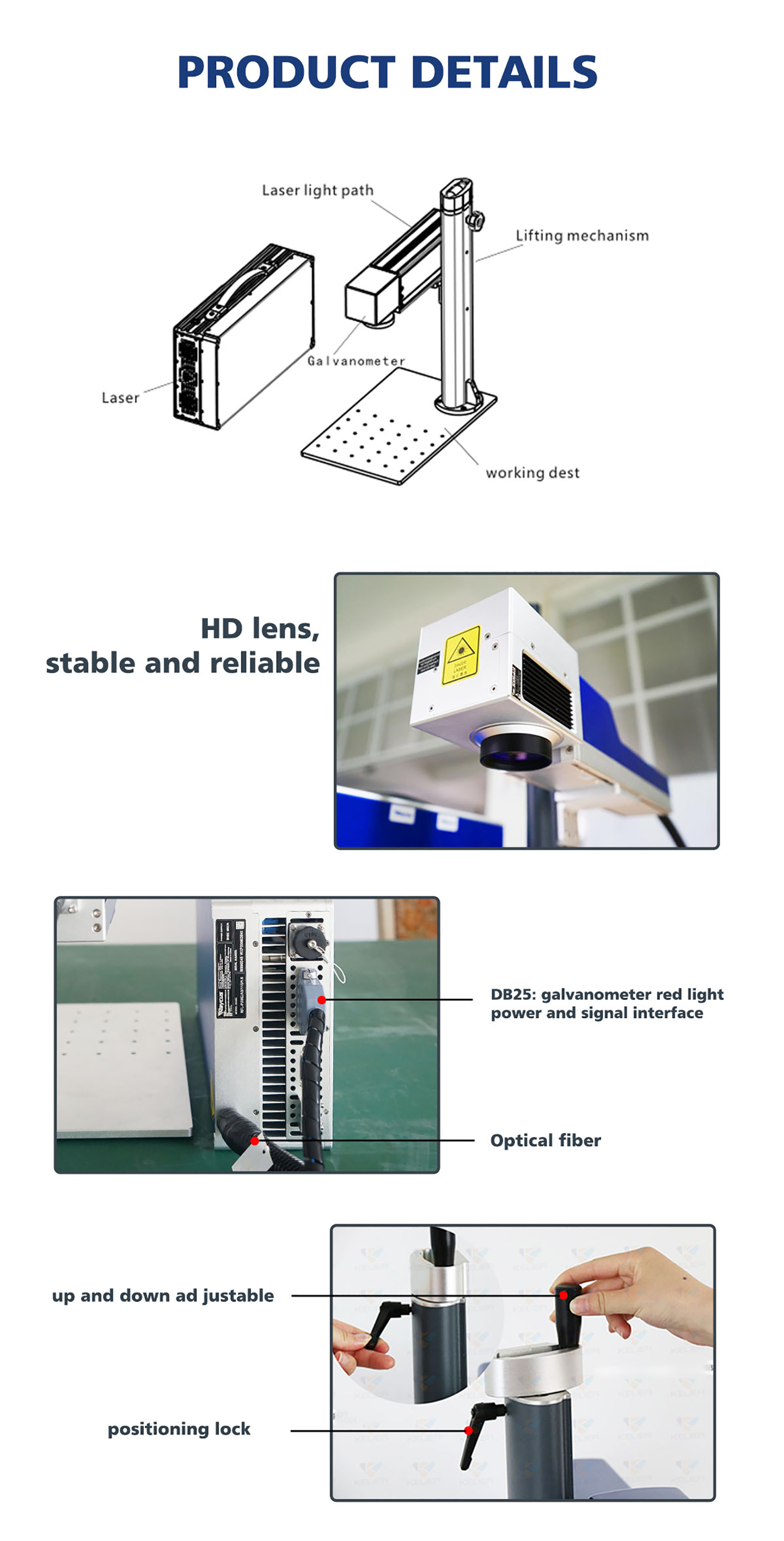

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 11

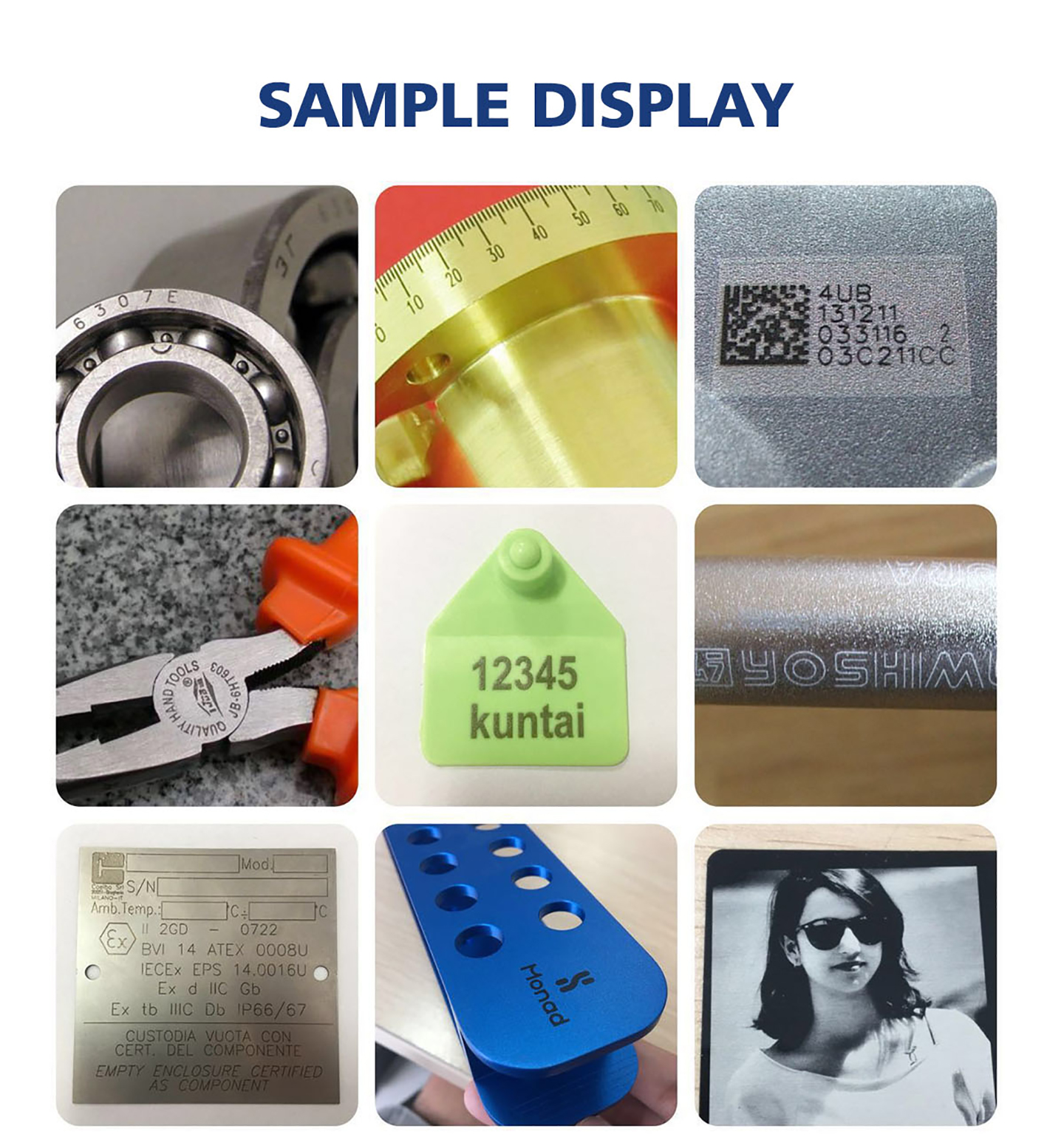

    Common process

    1. Fiber laser annealing marking

    Fiber laser annealing marking is a permanent mark caused by heat generated by a laser without removing or damaging the material. Annealed marking is used on all carbon-containing metals and when exposed to heat reduces the thermal effect of the carbon in the material to the surface, resulting in a color change.

    2. Fiber laser ablation, surface removal

    Fiber laser ablation, surface removal, is the ablation or vaporization of material surface coatings by laser thermal energy to create contrast without damaging the substrate. This process is usually used to remove materials such as surface paint, anodized aluminum, etc. Common applications are automotive dashboards, backlit buttons, etc.

    3. Fiber laser engraving

    Fiber laser engraving is a laser-induced ablation of the workpiece or material surface by laser melting or evaporating the substrate through the high-energy heat of the laser beam, so the laser beam removes the material. Engraving is a method for creating durable, direct, permanent markings that are counterfeit-proof and wear-resistant and corrosion-resistant.

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 12

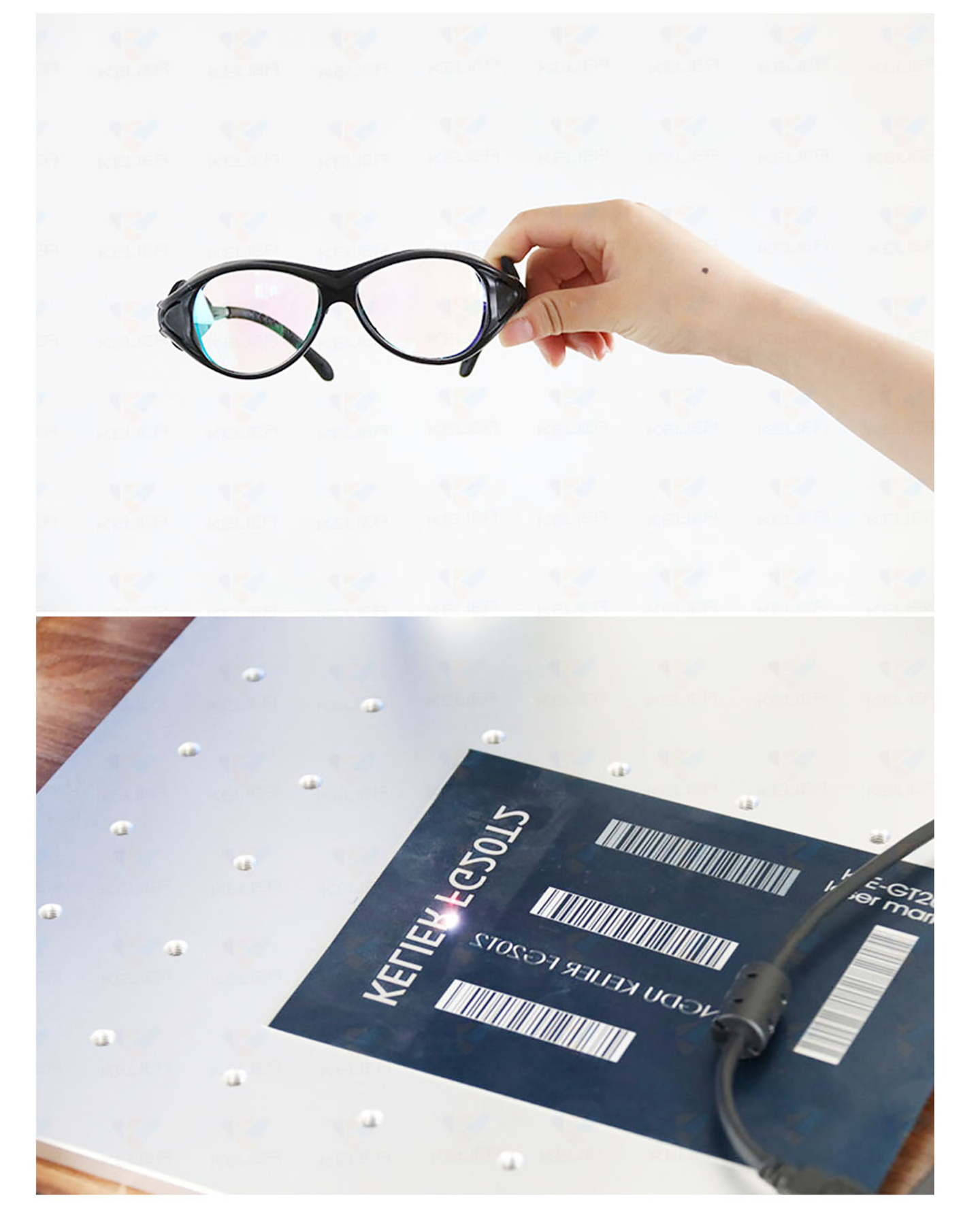

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 13

    Chengdu Kelier Electronic Co., Ltd.

    It has more than 20 product lines, supports OEM/ODM customization, supports boot interface customization, and packaging customization.

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 14

    Participated in international exhibitions more than 10 times, won the favor of customers from many countries, and reached long-term cooperation with customers from many countries.

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 15

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 16

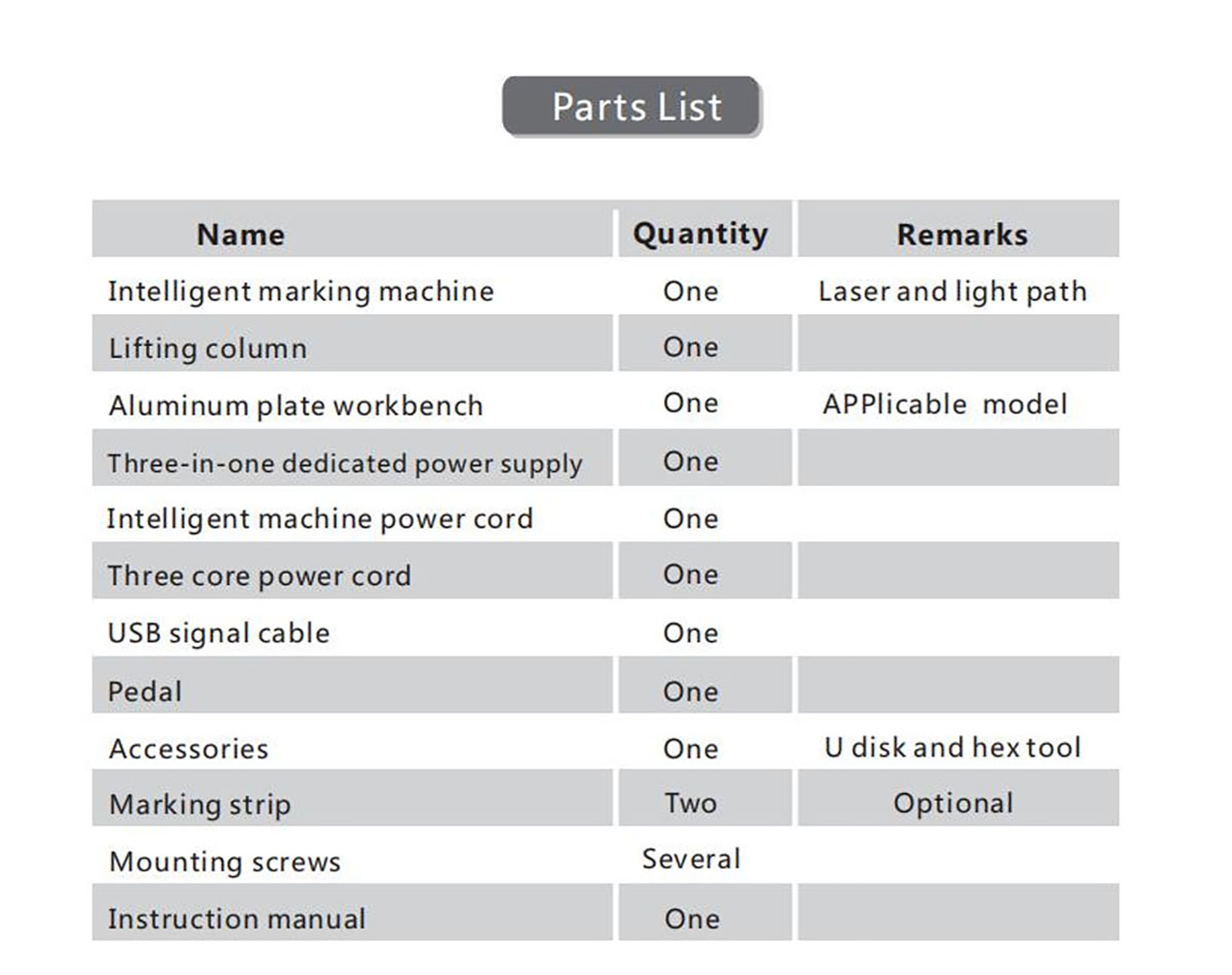

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 17

    Chengdu Kelier Electronic Co., Ltd. Won the national high-tech enterprise certificate, a number of product certificates, product patents, and has a number of trademarks.

    The products are made of high-quality materials and imported accessories from the United States.

    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 18

    Kelier has many years of export experience, rich export experience, supports a variety of transportation methods, sea, long distance, air, etc., and provides professional and high-quality export services.


    Quality Color Rotary Metal Fiber Laser Engraving Fiber Laser Marking Machine Manufacturer | Kelier 19
