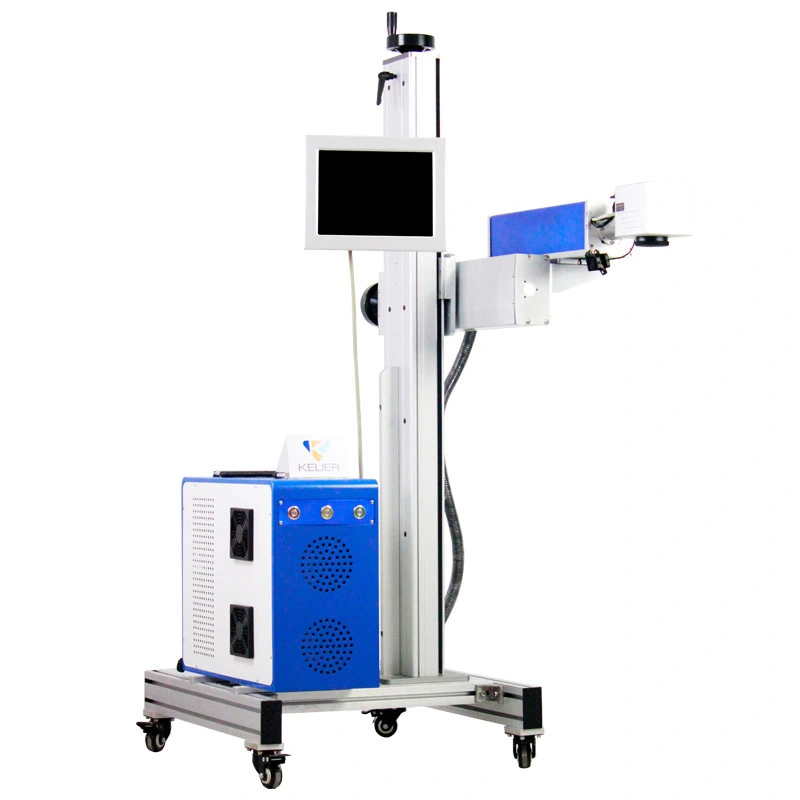

Fly Metal 20w 30w 50w Fiber Laser Marking Machine Air Cooling online-Kelier
The adoption of technology allows to deliver leading production efficiency.So Fly Metal 20w 30w 50w Fiber Laser Marking Machine Air Cooling online laser stands for brand-name products in the field of laser marking machine.
Chengdu Kelier Electronic Co., Ltd. In order to better meet the diversified needs of the market, relying on its own technology, resources, talents and other advantages, it has successfully created Fly Metal 20w 30w 50w Fiber Laser Marking Machine Air Cooling online laser. Chengdu Kelier Electronic Co., Ltd. is dedicated to ensuring that you receive a top class service, every time. We have an experienced team consisting of several industry experts. They have years of experience in manufacturing and designing laser marking machine.In the past months, they have been focusing on improving the practical use of the product, and finally they made it. Proudly speaking, our product enjoys a wide application range and can be very useful when applied in the field(s) of TIJ inkjet printers, CIJ inkjet printers, laser marking machines, industrial conveying equipment, Packaging equipment.
| Application: | Laser Marking | Working Accuracy: | 0.001mm |
| Graphic Format Supported: | AI, DXF, PLT, BMP, Dst, Dwg, LAS, DXP, JPG | Laser Type: | Fiber Laser |
| Condition: | New | CNC or Not: | Yes |
| Cooling Mode: | Air Cooling | Control Software: | EZCAD borad |
| Place of Origin: | Sichuan, China | Brand Name: | Kelier |
| Laser Source Brand: | RAYCUS | Control System Brand: | EZCAD |
| Marking Head Brand: | SINO GALVO | Key Selling Points: | fly online printing |
| Warranty: | 3 years, 20W30W50W | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Marking Speed: | 9000mm/s | Marking Depth: | metal laser marking |
| Standard marking area: | 50mm*50mm--- 300mm*300mm | Laser generator Life: | 100,000hours |
| Frequency of pluse: | 20KHZ~80KHZ | Repeated accuracy: | 0.001mm |
| Power supply: | AC220V/50Hz;110V/60Hz | Name: | 20W30W50W laser marking machine |
| Laser source: | Raycus/MAX/IPG | Certification: | CCC, ce, ISO |
| After-sales Service Provided: | Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| Brand: KELIER | Model: FG20/30/50F | Origin: Mainland China |
| Provinces: Sichuan | City: Chengdu | Power: 20W/30W/50W |
| DCarving speed:0-9000mm/s | Voltage: 110V-240V | Packing weigth:120kg |
| Name:Fly Metal 20w 30w 50w Fiber Laser Marking Machine Air Cooling online laser | ||
| -Description:KELIER online optical fiber marking machine, using the fifth generation of fiber laser, has a service life of up to 100,000 hours. The laser machine supports CO2, Raycus, IPG, MAX lasers. According to different machine parameters, the software can adjust current, pulse frequency and duty cycle by software. We set up a separate red light indicator preview for the machine. The software uses EZCAD and has powerful variable text function: Fixed text, date, time, keyboard input, jump sign, list file, dynamic and dynamic file, support EXCEL table, TXT file, support serial communication, network communication. It can be customized to read from any database file according to customer requirements, and supports PLT, DXF, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF. | ||
Product advantages:
1. This equipment is specially designed for laser marking of flight in assembly line, such as PE pipe production line, PE material and metal parts, wire and cable production line.
2. Switch indicator button, direct and clear, unique standby laser independent switch, so that the laser life is longer.
3. Intelligent touch-control operation, real-time online editing marking information, can provide customized secondary development platform for customers, convenient to connect with customer anti-counterfeiting system.
4. Support multi-language operation and multi-language marking.

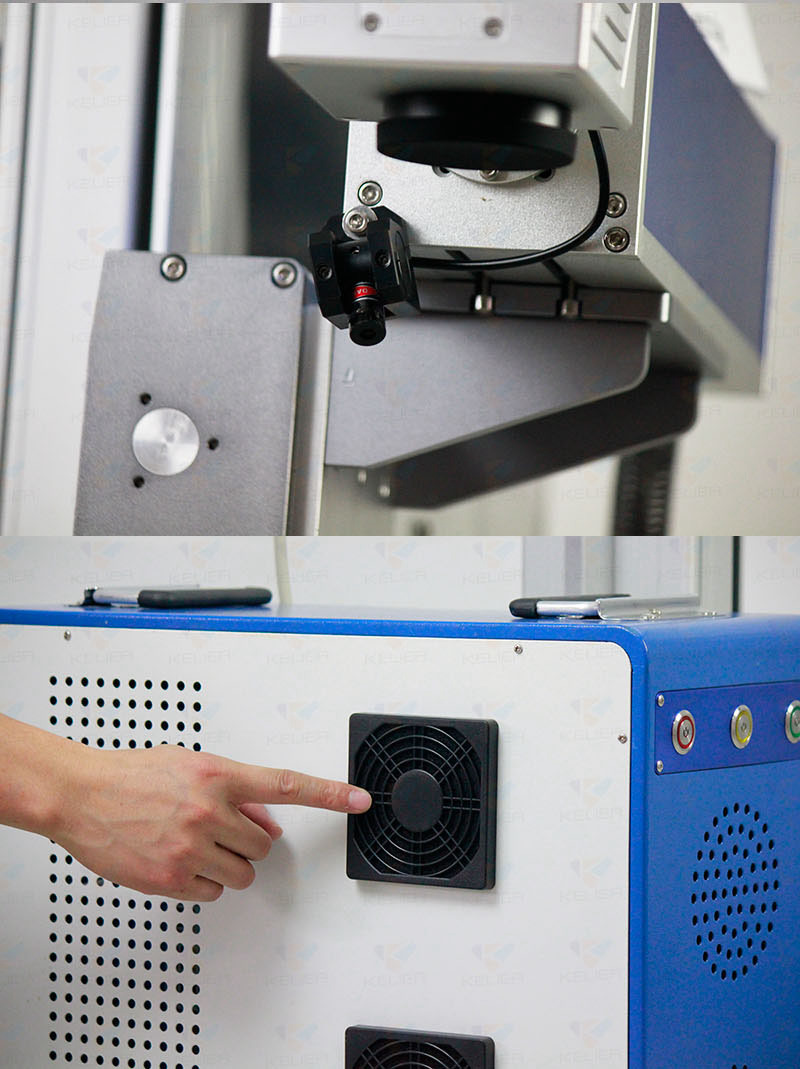

5. All-air-cooled, consumable-free, maintenance-free, low cost, low power consumption, no water-cooled system, flexible optical fiber output, more convenient use, energy saving. Integrated modular design, easy maintenance, compact size. Save your precious workshop space, mark environmental protection, non-fading, in line with international standards.
online Fiber Laser Printing Machine with Fiber Laser Source Detailed Parts Introduction:

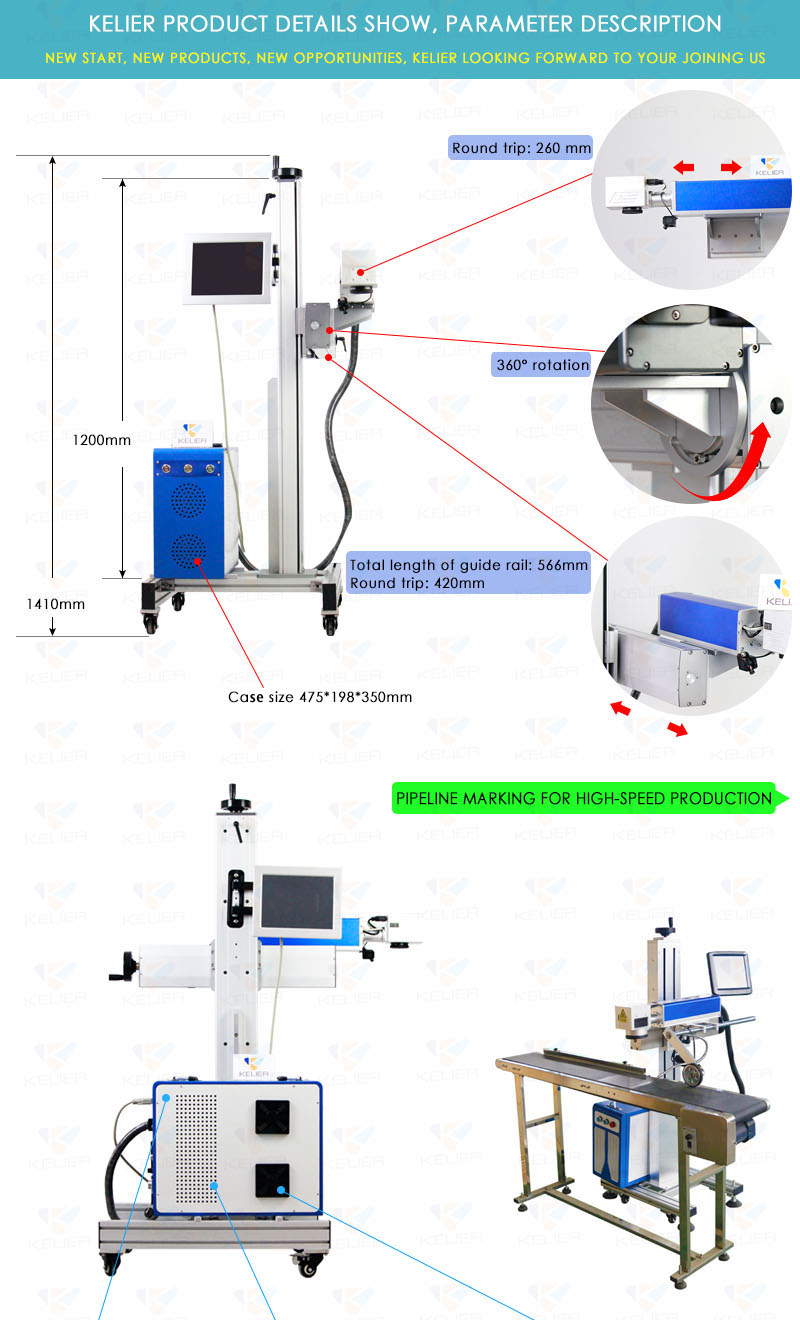

1,Modular design, the separate laser generator, and lifter, more flexible, can mark on the bigger area and complicated surface.
2,Adopt the embedded laser operating software system, which the performance is leading domestic peers, good touch interface, and powerful control system, can meet the demand of most industrial laser printing application process in the market.
3,Adopts advanced digital high-speed scanning galvanometer, small volume, quick speed, good stability, performance, reach the international advanced level.
| KELIER Industrial Laser Marker parameters | |
| Optional Model | FG20F/FG30F/FG50F |
| Laser power | 20W30W50W(optional) |
| Laser source | China Max or Raycus German IPG fiber laser |
| Laser wavelength | 1064 nm |
| Beam quality | M2 < 1.4 |
| Modulation frequency | 20kHz~110kHz |
| Marking range | 30mm x 30mm - 300mm x 300mm can be optional |
| Carving speed | 0-9000 mm/s |
| Carving depth | 0.01~0.4mm(10W) ; ≤1.0mm(50W) according to material |
| Focusing mode | Support for automation or manual |
| Marking speed | 600-1000characters/Min 0-9000mm/s |
| Minimum line width | 0.002 mm |
| Minimum characters | 0.15 mm |
| Repeatability accuracy | ±0.002 mm |
| Cooling method | Air Cooling |
| Use environment | IP4 Clean, dustless or less dusty |
| Laser type | Pulse or continuous |
| control software | Authorization EZCAD marking control software |
| Graphic format supported | bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc. |
| Laser indicator | Double Red dot pointer |
| Operating system | Win98/Win2000/WinXP/win7 (64,32bit)win8/win10 |
| working temperature | 0-35 ℃,90% or humidity |
| Power consumption | ≤ 550 W |
| Electricity demand | AC110V-240V±10%,50 HZ/60HZ |
| This product contains computers. The following is the configuration list of the dedicated computers. | |
| Computer configuration parameters | |
| CPU | Intel G630X2/I3 540 |
| Memory | ADATA 4G/8G DDR3L 1600 |
| BIOS | AMI EFI BIOS |
| Super I/O | Winbond W83627DHG-P / HG41/HG55 |
| Ethernet | 1x LAN Intel I211(IO) |
| GPU | Intel HD Graphics |
| Display interface | 1x HDMI:1920×1200@60Hz |
| Hard disk | 60G/120G/500G |
| USB interface | 4xUSB |
| serial port | 1x RS232,COM1,RS422,RS485 |
| operating system | Windows 7 32bit;Can support/Windows 8/Windows 10/Linux |
| working temperature | 0℃~ 60℃ |
| Storage temperature | -40℃~ 85℃ |
| humidity | 5% ~ 95% Relative humidity, no condensation |
The fiber laser generator is highly integrated, has a superior laser beam and uniform power density, Out Laser power is stable.
This design highly increases the laser printing machine’s anti-reflection ability, be able to print & mark on aluminum, copper, gold, and silver without the shadow and virtual open phenomenon. Adopt special flying/online printing marking control system, with good performance and easy operation.

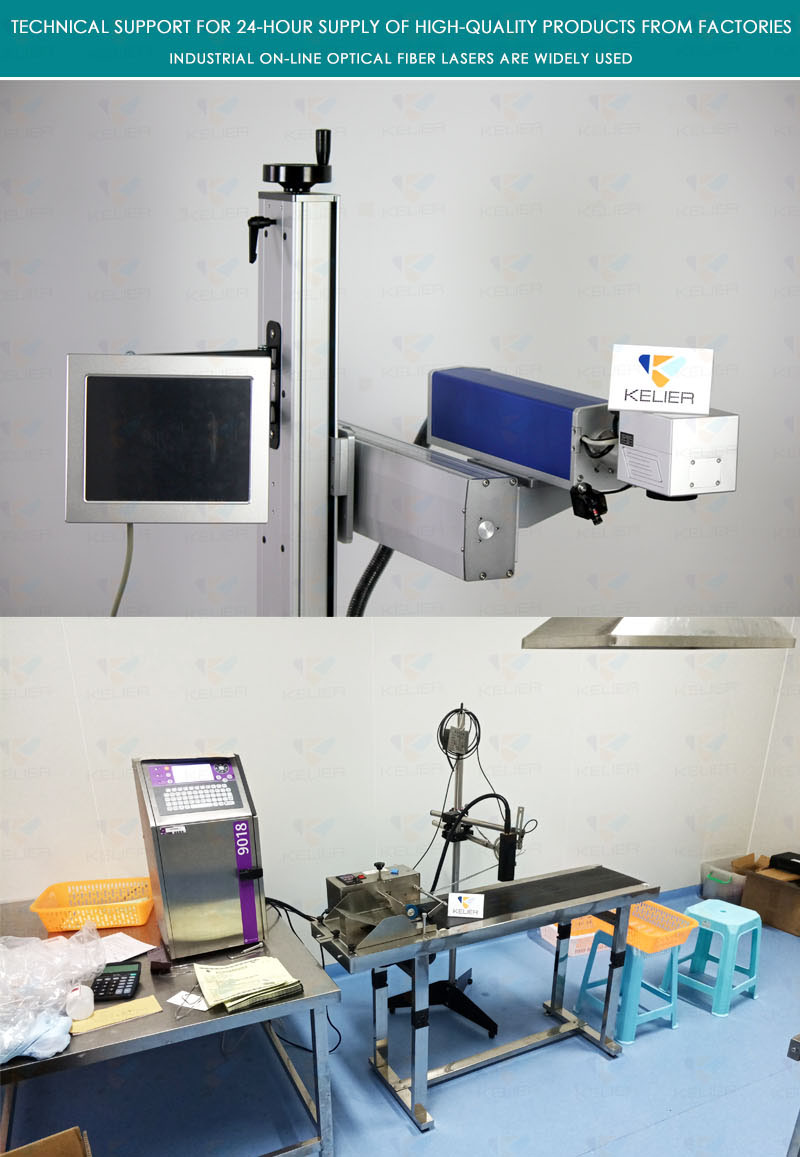

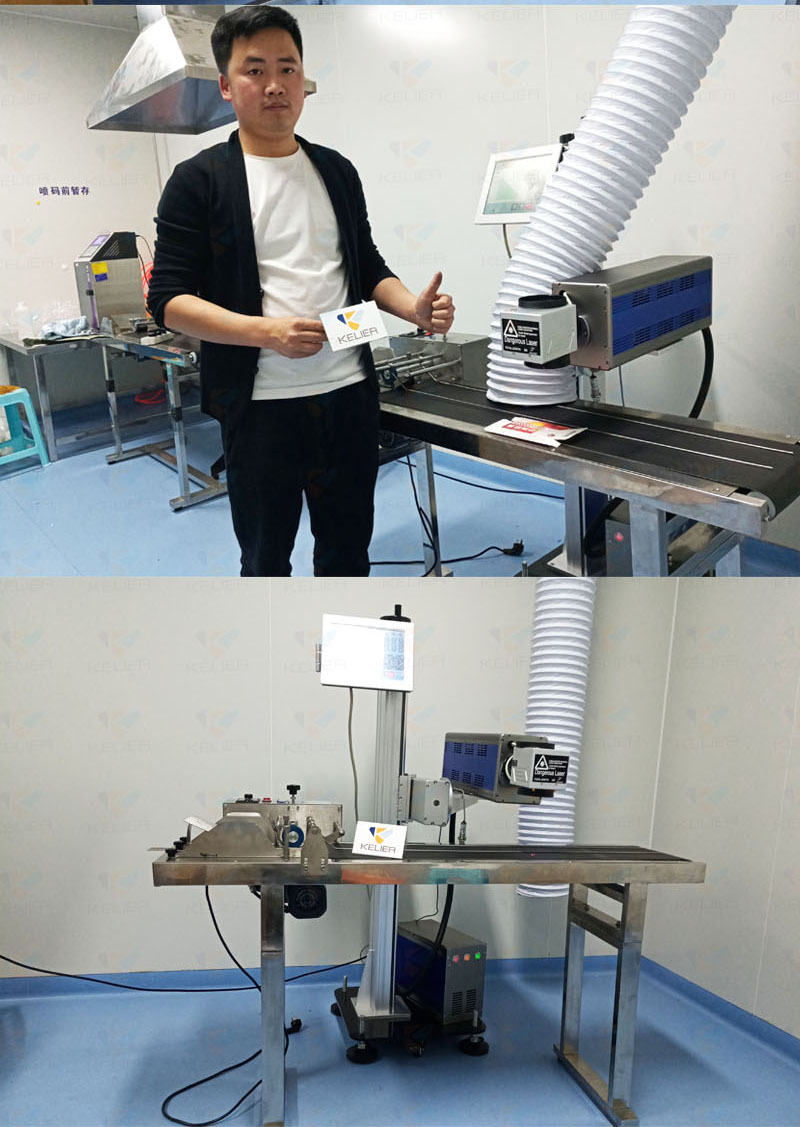

With the continuous fabrication processes, you need to be able to mark parts without stopping the conveyor belt. With our On-The-Fly laser marking process, you have the ability to mark your products on the fly.
The "Marking on the Fly" option synchronizes the movement of the parts with the movement of the laser beam, so that the laser marking produces an undistorted mark. The speed in the transport direction is continually measured with an encoder signal - so even with a change in conveyor speed or starts and stops, you can obtain consistent marking results.
Application industry: It is widely used in piping, wire and cable, metal fittings and other pipeline production operations.
| Packing list | ||

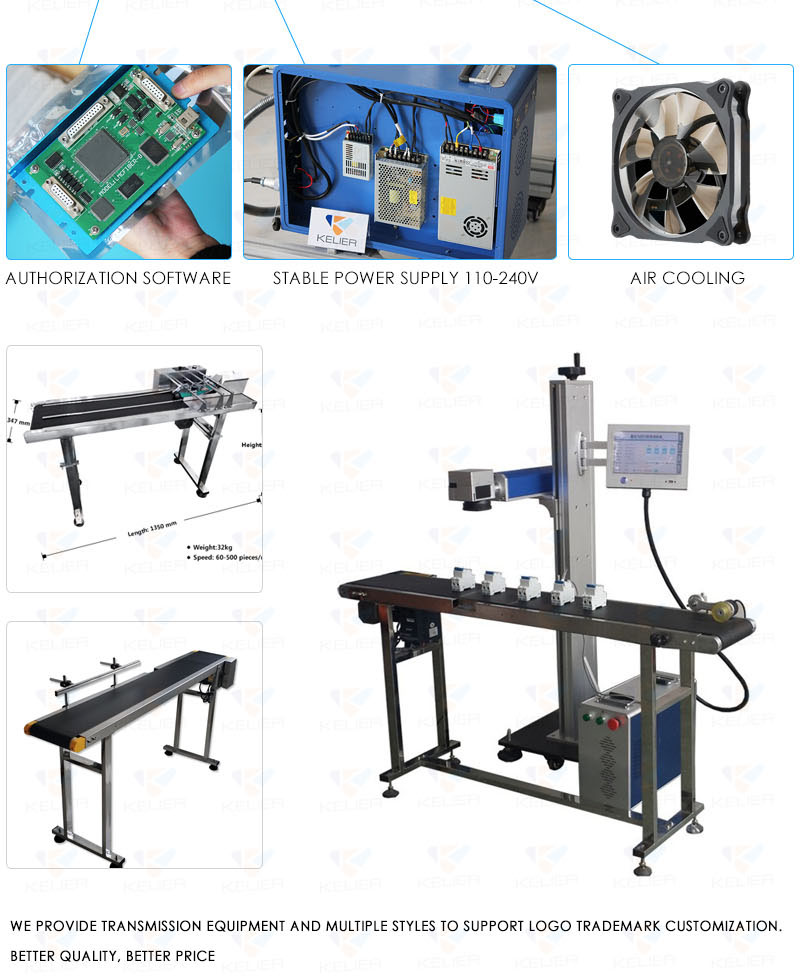

It is composed of fiber laser, high-speed scanning mirror, control software, computer, switching power supply control chip set and precision Z-axis elevator.

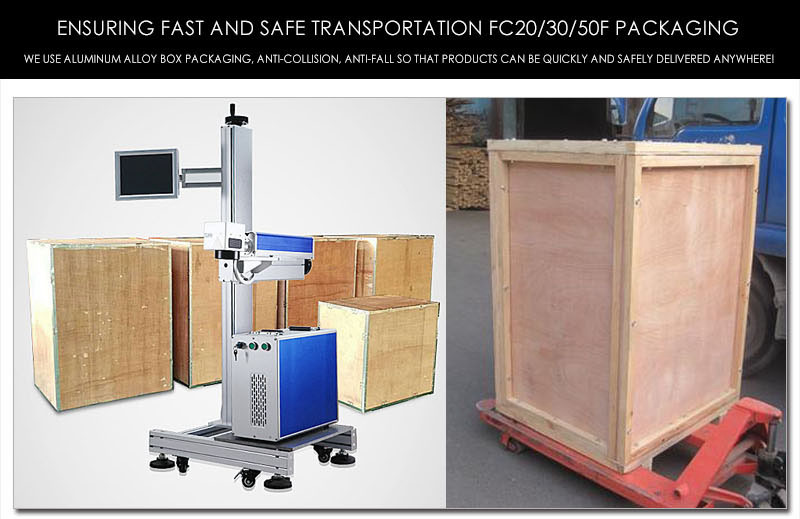

Inside: Shockproof multilayer foam packaging high-end, safe, easy to carry and store; support customized packing.
| ||
| Packaging size/weight(mm):900(L)*800(W)*1060(D) / 120KG | ||
| Part name | Brand origin | Quantity |
| Fiber laser | Raycus/Max/Ipg | 1 sets |
| High speed scanning galvanometer | Beijing SINO GALVO | 1 sets |
| Focusing lens | Singapore wavelength | 1 sets |
| Marking software | EZCAD | 1 sets |
| Indicator locator | Xi'an sapling | 1 sets |
| Power switch | Taiwan Meanwell | 1 sets |
| Laser frame | Self-control | 1 sets |
| Print foot | Customized | 1 sets |
| Equipment switch | Shanghai Jia Jia | 1 sets |
| Control computer(Include) | desktop computer | 1 sets |
| Rotary Printing Table (Order) | Dongsheng Precise | 1 sets |
| Instructions | Video, text and pictures | 1 sets |
| Shipping Method |
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery; |
2. By Air: In some areas, the shipping cost by air is more favorable than by Express; 5-7 working days for delivery; |
3. By Sea: the most economical shipping method, but it will take longer shipping time;suitable for large-quantity, heavy and non-urgent goods. |
4. Your shipping agent or forwarder. |
| Information you need to know before buying |
1.after the order confirmed. 24-hour full after sales service: our skilled engineer will help customer to solve the problem by Whatsapp,wechat,SKYPE,QQ etc in time when problems happen, if necessary, overseas service is available. |
2. Quality Control Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure. All finished machine we delivered are 100% strictly tested by our QC department and engineering department. |
3. OEM Service Customized and OEM orders are welcome due to our aboundant experiences. All the OEM services are free, customer only need to provide us with your logo drawing, function requirements, colors etc. No MOQ required. |
4. Privacy None of your personally identifiable information ( such as your name , address , email address ,bank info ,etc ) will be disclosed or shared with any third parties. Contact: All of your inquiries or questions or helps will be answered within 24 hours, even in holiday. Also, please feel free to call us if you have any emergency questions. |
Q1:How to distinguish laser tubes with different powers and applications?
A:Laser tube length (relatively speaking, the longer, the bigger)
B:Laser tube diameter (relatively speaking, the thicker, the bigger)
C:The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger.
So, it is better to use a machine with a low-power laser tube to engrave, such as 20w 30w .
Q2:Please let us know following information:
A. What materials you want to mark ?
B. How many products you want to mark per day?
C. What is the MAX working area ?
Q3: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q4: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q5: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can
learn by themselves.
Q6: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q7: Is it easy to operate the laser marking machine for the new user ?
A:It is very easy,we offer you manual book and operatevideo,also our technician can help you via MSN,Skype teamviewer etc.
Q8.What i need to do when the laser marking machine suffer trouble ?
A:Make sure all the wires be connection well ,and keep your lens and mirrors be clean ,then check your laser tube and talk details to us.
Q9.How to maintain the laser marking machine?
A:After 8 hours working,it’s better close 10 minutes.
B:Keep lens and mirrors clean.
